Cisco UCSC-P-V5Q50G | UCS VIC 15425 Quad-Port 10/25/50G PCIe, C-Series M6
SKU:UCSC-P-V5Q50G
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

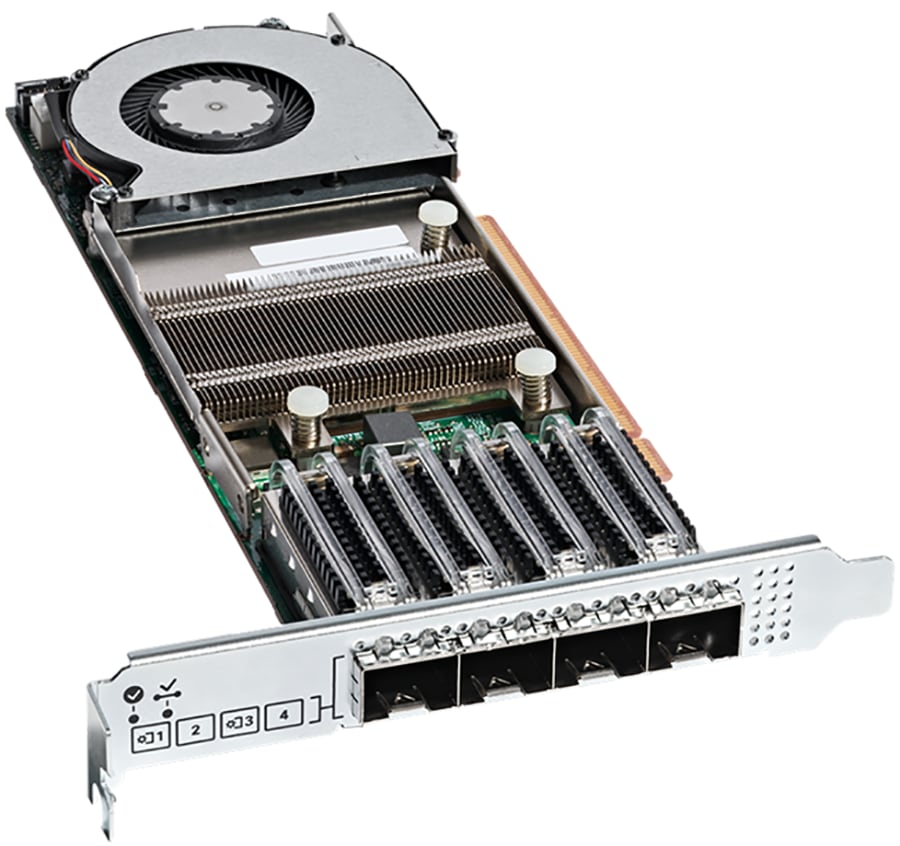

The UCS VIC 15425 is a quad-port PCIe virtual interface card from the Cisco UCS Virtual Interface Card 15000 Series. This UCSC-P-V5Q50G version is for Cisco UCS C-Series M6 rack servers and gives them high-bandwidth, converged LAN and SAN connectivity, either managed through UCS fabric interconnects or run standalone behind Nexus top-of-rack switches.
The card provides four SFP+/SFP28/SFP56 ports running at 10, 25 or 50 Gbps per port, on a PCIe 4.0 x16 form factor. It supports Ethernet and FCoE and presents up to 512 PCIe-compliant virtual interfaces to the host, each configurable as a NIC or HBA. Maximum power draw is 35.2 W. VIC Secure Boot is supported from release 4.3(2). The M7 and M8 equivalent of this card is UCSC-P-V5Q50G-D.
Supported servers are the Cisco UCS C220 and C240 M6, M7 and M8, and the C225 and C245 M6 and M8. It connects to UCS fabric interconnects in the 6300, 6400 and 6500 families and to selected Nexus switches. Supported Cisco optics include SFP-10G-T-X, SFP-10G-SR, SFP-10G-LR, SFP-25G-SR-S and SFP-50G-CUxM cables.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Stateless design: the number and type of NICs and HBAs, MAC and WWN identity, failover, bandwidth and QoS are defined dynamically from the server's service profile
- Cisco SingleConnect technology carries LAN, SAN and management traffic over a single unified network
- VIC Secure Boot verifies the integrity of VIC hardware and firmware at server boot
- Hardware-based fabric failover provides a redundant path to the fabric interconnect
- Up to 512 PCIe virtual interfaces without requiring SR-IOV in the operating system
- Offloads and protocols include VXLAN, NVGRE, GENEVE, NetFlow, DPDK, RoCEv2, NVMe-TCP, iSCSI boot and PTPv2 on Linux
- FC-NVMe support with RHEL, SLES and ESXi
- Consolidates NICs, HBAs, cables and switches because LAN and SAN traffic share one adapter
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 4 x SFP+/SFP28/SFP56
- Speed per port: 10/25/50 Gbps
- Form factor: PCIe 4.0 x16
- Protocols: Ethernet and FCoE
- Virtual adapters and interfaces: up to 512
- ASIC: Cisco UCS custom ASIC
- Maximum power consumption: 35.2 W
- Dimensions (L x W x H): 7.17 x 2.35 x 0.85 in
- Low-latency technology: usNIC, as low as 1 microsecond in back-to-back VIC connections
- High performance I/O: over 900,000 IOPS
- Lossless Ethernet: Priority Flow Control (PFC)
- Jumbo frames: up to 9KB
- Secure boot: VIC Secure Boot supported from release 4.3(2)
- Recommended management release: UCSM, IMM and standalone CIMC 4.3(2) or later
- Management: Cisco Intersight, Cisco UCS Manager, Cisco IMC (standalone)
- Supported servers: C220 M6/M7/M8, C240 M6/M7/M8, C225 M6/M8, C245 M6/M8
FAQs
Q: Which servers is UCSC-P-V5Q50G for?
A: It is the version for Cisco UCS C-Series M6 rack servers. The card is also supported in M7 and M8 C-Series servers, and UCSC-P-V5Q50G-D is the M7 and M8 equivalent.
Q: Does this adapter need a separate licence?
A: No adapter-specific licence is described for the card itself. Management through Cisco Intersight follows Intersight licensing tiers.
Q: How is the card powered?
A: It draws a maximum of 35.2 W from the host server's PCIe slot. No separate power supply is required.
Q: Which optics and cables does it work with?
A: Supported Cisco optics include SFP-10G-T-X, SFP-10G-SR(-S), SFP-10G-LR(-S), SFP-25G-SR-S, SFP-25G-SL, SFP-10/25G-CSR-S, SFP-10/25G-LR-S and SFP-50G-CUxM cables.
Q: Can it connect to UCS fabric interconnects and Nexus switches?
A: Yes. It connects to UCS FI 6300, 6400 and 6500-series fabric interconnects and to selected Nexus top-of-rack switches. Note that UCS-FI-6536 does not support 10G connectivity to this VIC.
Q: Which software release is recommended?
A: Release 4.3(2) or later is recommended for UCSM, IMM and standalone CIMC. VIC Secure Boot is supported from the same release.
