Cisco

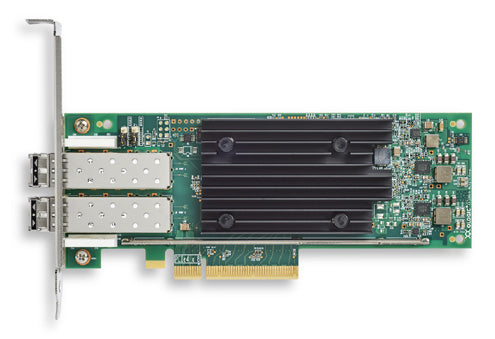

Cisco UCSC-P-Q7D64GF | QLogic 2870 Dual-Port 64GFC PCIe 4.0 x8 HBA, Low Profile

SKU:UCSC-P-Q7D64GF

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This Cisco-branded QLogic QLE2872 is a dual-port 64Gb Fibre Channel host bus adapter from the Marvell QLogic 2870 Series, built for UCS C-Series rack servers. It connects servers to Fibre Channel SANs and NVMe-over-FC all-flash arrays, and suits databases, virtualisation hosts and mission-critical workloads that need low latency and firmware security.

The card provides two 64GFC SFP ports with 64/32/16GFC auto-negotiation, so it works with existing 32GFC and 16GFC fabrics. Each port delivers up to 12,800 MBps full-duplex line rate with 2,048 concurrent logins and 2,048 active exchanges. It uses a PCIe 4.0 x8 host interface in a low-profile card measuring 6.6 in x 2.731 in. FC-NVMe and FCP-SCSI traffic can run concurrently on the same port, and a silicon Root of Trust handles firmware authentication, secure boot and signed drivers. No licence or subscription is required, and Universal SAN Congestion Mitigation is included at no additional cost.

It is listed for UCS C220 M7 and C240 M7 rack servers in Riser 1, 2 or 3 as a half-height, half-length, single-slot card. Advanced fabric features work with supported Cisco MDS or Brocade switches.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Concurrent FCP-SCSI and FC-NVMe traffic on the same port
- Silicon Root of Trust with firmware signature verification, secure recovery and anti-rollback
- Automated Universal SAN Congestion Mitigation (USCM) using FPIN, working with Cisco and Brocade fabrics
- Port-level isolation with a separate processor, DMA and firmware per port
- NPIV with CS_CTL QoS and VM-ID support on VMware ESXi 8.0 or later with supported Cisco or Brocade switches
- T10 Protection Information for end-to-end data integrity
- Backward compatible with 32GFC and 16GFC SANs
- Up to 50% higher IOPS and twice the full-duplex throughput of the previous generation

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Model: Marvell QLogic QLE2872 (dual-port 64GFC)
- Ports: 2 x Fibre Channel (SFP, short-wave optics)
- Speed negotiation: 64/32/16GFC auto-negotiation
- Throughput: up to 12,800 MBps full-duplex line rate per port
- Host interface: PCIe 4.0 x8
- Form factor: low-profile PCIe card, 6.6 in x 2.731 in
- Logins: 2,048 concurrent logins and 2,048 active exchanges per port
- Port virtualisation: NPIV
- Host interrupts: INTx and MSI-X
- PCIe compliance: PCIe Base Spec rev 4.0, CEM rev 4.0, PCI Bus Power Management Interface rev 1.2, PCI Hot Plug rev 1.1
- FC standards: FCP-4, FC-TAPE, FC-GS-8, FC-PI-5, FC-PI-6, FC-LS-4, FC-FS-4, FC-NVMe-2
- Security: Silicon Root of Trust firmware authentication (NIST 800-193), secure boot, signed drivers
- Server fit: Cisco C220 and C240 M7, Riser 1, 2 or 3, HHHL single-slot
- Multimode distance at 64GFC: OM3 70 m, OM4/OM5 100 m
- Multimode distance at 32GFC: OM2 20 m, OM3 70 m, OM4/OM5 100 m
- Multimode distance at 16GFC: OM2 35 m, OM3 100 m, OM4/OM5 125 m
- Boot support: UEFI
- Management: QConvergeConsole CLI, MCTP/PLDM, ESXCLI plug-in for vSphere, MRVLFC PowerKit, SNIA HBA API v2, SMI-S
- Operating temperature: 0 to 55 C
- Storage temperature: -20 to 70 C
- Operating humidity: 10% to 90% non-condensing
- EMI/EMC: Class A (FCC, ICES-003, EN55032/24, VCCI, AS/NZS, KC, BSMI, UKCA)

FAQs

Q: Does this HBA need a licence or subscription?
A: No. No licence or subscription is required, and Universal SAN Congestion Mitigation is included at no additional cost.

Q: Which Cisco servers is this adapter listed for?
A: It is listed for Cisco UCS C220 M7 and C240 M7 rack servers in Riser 1, 2 or 3 as a half-height, half-length, single-slot card. It also appears in firmware bundles for C-Series M6, M7 and M8 servers.

Q: Will it work with 32GFC or 16GFC SAN fabrics?
A: Yes. The ports auto-negotiate 64/32/16GFC, so the card works with existing 32GFC and 16GFC SANs.

Q: How is the card powered?
A: It is powered from the PCIe 4.0 x8 slot, so no separate power connection is needed.

Q: Which fabric features need a supported switch?
A: Features such as FA-WWN, F-BLD, FC ping and traceroute, RDP and FEC for 16GFC need a supported Brocade or Cisco switch. Basic connectivity works with any compatible 64/32/16GFC fabric.
