Cisco

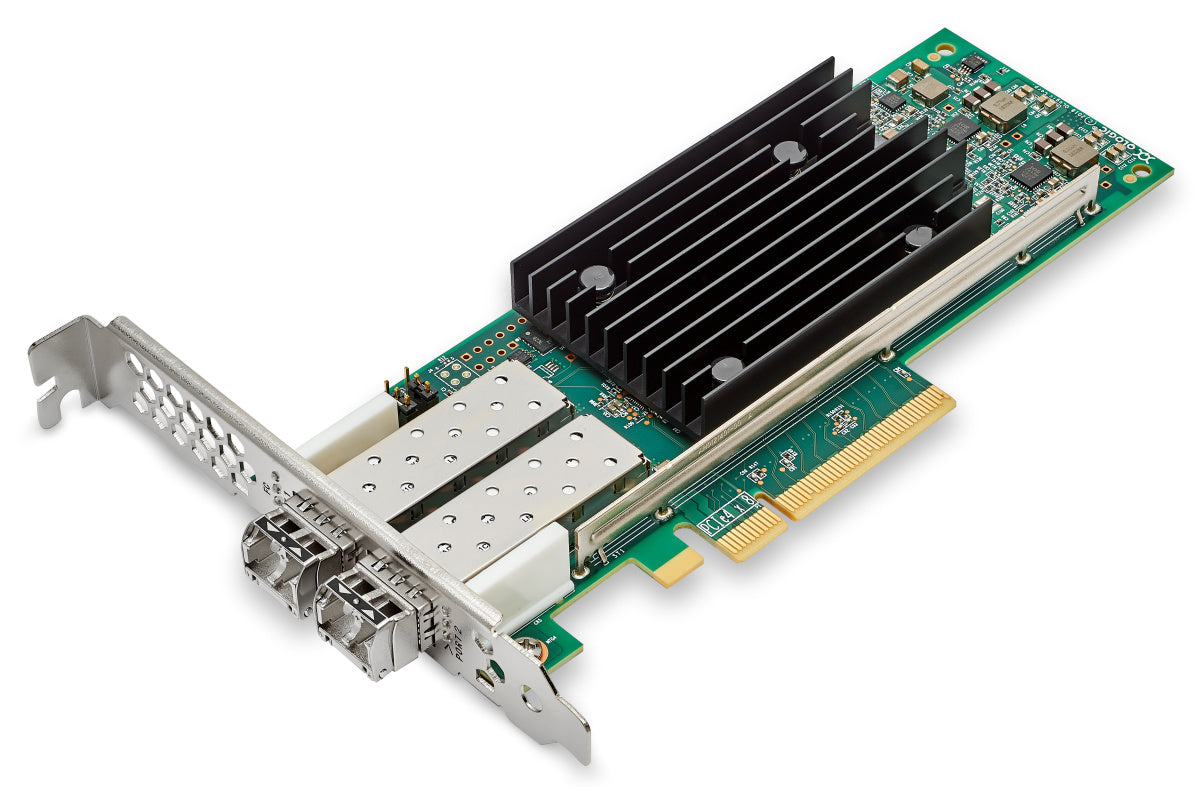

Cisco UCSC-P-Q6D32GF-D | UCS C-Series 2x32GFC Fibre Channel HBA, PCIe Gen 4 x8

SKU:UCSC-P-Q6D32GF-D

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The UCS C-Series 2x32GFC Enhanced Gen 6 Fibre Channel HBA is a dual-port 32Gb host bus adapter built on the Marvell QLogic QLE2772 and sold by Cisco for UCS C-Series rack servers. It connects servers to Fibre Channel SANs and suits database acceleration, higher VM density and moves to NVMe-based all-flash arrays in mission-critical data centres.

This -D PID provides two 32GFC ports on a PCIe 4.0 x8 interface, with a multimode SR SFP optical module. Each port delivers 6,400 MBps full duplex, for 12,800 MBps aggregate throughput and up to 2 million IOPS. Each port supports 2,048 concurrent logins and 2,048 active exchanges. FCP-SCSI and FC-NVMe run concurrently on the same port, and a hardware Root of Trust validates firmware signatures. No licence or subscription is required. The card is backward compatible with 16GFC and 8GFC SANs.

It has been tested with Cisco MDS 9132T, 9148S, 9250i and MDS 9700 Series switches. Check the Cisco UCS Hardware Compatibility List for the current server list.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Concurrent FCP-SCSI and FC-NVMe on the same physical port
- Hardware Root of Trust validates firmware signatures to block malicious firmware
- Port-isolated architecture with independent per-port processing, buffers, DMA and firmware
- StorFusion diagnostics including Diagnostics Port, link cable beacon and read diagnostic parameters
- Automatic buffer-to-buffer credit recovery
- SAN congestion mitigation with Fabric Performance Impact Notifications
- Fabric-assigned WWN and fabric-based boot LUN discovery for rapid server deployment
- VM-ID tagging and NPIV with CS_CTL QoS per virtual port

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 2 x 32GFC (Enhanced Gen 6)
- Host interface: PCIe 4.0 x8
- Performance: up to 2 million IOPS
- Aggregate throughput: 12,800 MBps
- Per-port throughput: 6,400 MBps full duplex
- Logins: 2,048 concurrent logins and 2,048 active exchanges per port
- Port virtualisation: NPIV
- Protocols: FCP-SCSI and FC-NVMe
- Boot support: UEFI
- APIs: SNIA HBA API V2, SMI-S
- Management: QConvergeConsole (GUI and CLI)
- Form factor: low-profile PCIe card, 6.6 in x 2.731 in
- Optical module: multimode SR SFP (Marvell FTLF8532P4BCV-QM)
- Cable distance 32GFC (OM2/OM3/OM4-OM5): 20 / 70 / 100 m
- Cable distance 16GFC (OM2/OM3/OM4-OM5): 35 / 100 / 125 m
- Cable distance 8GFC (OM2/OM3/OM4-OM5): 50 / 150 / 190 m
- Operating temperature: 0 to 55 C
- Storage temperature: -20 to 70 C
- Operating humidity: 10% to 90%, non-condensing
- Backward compatibility: 16GFC and 8GFC

FAQs

Q: Does this HBA need a licence or subscription?
A: No. No licence or subscription is required to use the adapter.

Q: What PCIe slot does it need?
A: It uses a PCIe 4.0 x8 host interface and is powered from the slot. It is intended for UCS C-Series rack servers.

Q: Which Cisco switches has it been tested with?
A: It has been tested with Cisco MDS 9132T, 9148S, 9250i and MDS 9700 Series switches.

Q: Can it connect to older 16G or 8G Fibre Channel SANs?
A: Yes. The ports are backward compatible with 16GFC and 8GFC SANs.

Q: Does it support NVMe over Fibre Channel?
A: Yes. FC-NVMe and FCP-SCSI run concurrently on the same port, so you can migrate to NVMe storage without replacing the adapter.
