Cisco UCSC-P-N7S400GFO | ConnectX-7 1x400GbE QSFP112 NIC, PCIe Gen5, NVIDIA OEM

SKU:UCSC-P-N7S400GFO

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

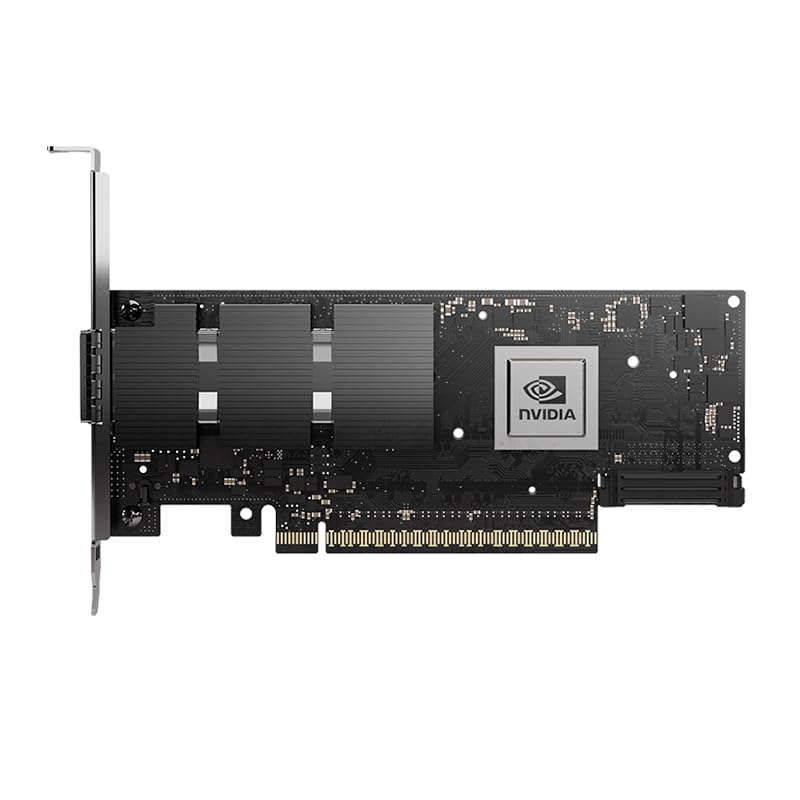

The ConnectX-7 1x400GbE QSFP112 NIC is a single-port network adapter built on the NVIDIA ConnectX-7 controller, supplied as an OEM option card for Cisco UCS C-Series rack servers. It suits high-bandwidth server connectivity in AI, HPC and data-centre workloads, where a single 400GbE link is needed per card.

The card provides one 400GbE QSFP112 port on a PCIe Gen5 host interface, in a half-height, half-length (HHHL) single-slot form factor. This is the NVIDIA OEM-branded version, based on part MCX715105AS-WEAT, and is distinct from the sibling UCSC-P-N7S400GF ConnectX-7 VPI variant.

It is supported in the Cisco UCS C240 M8 SFF rack server, in Riser 1, 2 or 3, with up to three cards per server. When this card is fitted, CPUs above 330W TDP are not supported, and the normal operating temperature is limited to 28 C, reduced to 25 C on a fan fault.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Single 400GbE QSFP112 port for high-bandwidth server connectivity
- PCIe Gen5 host interface
- Based on the NVIDIA ConnectX-7 controller
- Compact half-height, half-length single-slot design
- Up to three cards per C240 M8 server across riser 1A/1C, 2A/2C and 3C
- NVIDIA OEM-branded counterpart of Cisco PID UCSC-P-N7S400GF

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 1 x 400GbE QSFP112
- Host interface: PCIe Gen5
- Controller: NVIDIA ConnectX-7 (CX-7)
- OEM part number: MCX715105AS-WEAT
- Form factor: Half-height, half-length (HHHL), single slot
- Supported server: Cisco UCS C240 M8 (SFF)
- Riser support: Riser 1, 2 or 3
- Maximum cards per C240 M8: 3
- Operating temperature with card fitted: 28 C normal, 25 C on fan fault

FAQs

Q: Which Cisco servers is this card supported in?
A: It is supported in the Cisco UCS C240 M8 SFF rack server, in Riser 1, 2 or 3. Up to three cards can be installed per server.

Q: Are there CPU or memory restrictions when this card is fitted?
A: CPUs with a TDP above 330W are not supported with this card. 256GB DIMMs are not supported, and 128GB DIMMs are supported only at 1DPC with a maximum of 8 DIMMs per CPU.

Q: Are there thermal limits to be aware of?
A: With this card installed, normal operating temperature is 28 C (82.4 F), reduced to 25 C (77 F) if a fan fault occurs.

Q: How does this differ from UCSC-P-N7S400GF?
A: This is the NVIDIA OEM-branded 1x400GbE QSFP112 PCIe Gen5 HHHL card (MCX715105AS-WEAT). UCSC-P-N7S400GF is the ConnectX-7 VPI x16 NIC variant.

Q: What port type does it use?
A: It has a single QSFP112 port, which carries 400GbE.
