Cisco

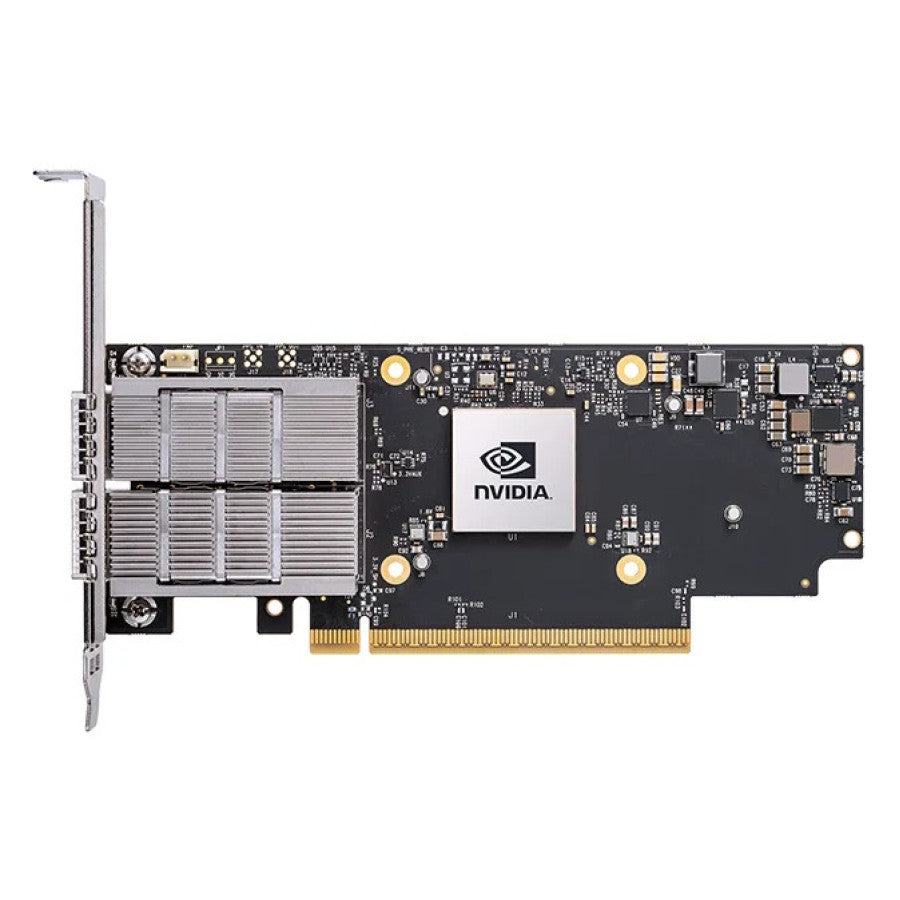

Cisco UCSC-P-N7D200GFO | UCS C-Series ConnectX-7 2x200GbE QSFP112 Network Adapter, NVIDIA OEM, No

SKU:UCSC-P-N7D200GFO

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The UCSC-P-N7D200GFO is a dual-port 200Gb/s network adapter built on the NVIDIA ConnectX-7 (MCX755106AS-HEAT), supplied as the NVIDIA OEM variant without crypto. It is designed for Cisco UCS C-Series rack servers running accelerated networking for data centre, HPC, scientific computing and AI workloads.

The card provides two 200GbE QSFP112 ports and connects to the host over a PCIe Gen5 x16 interface. As a VPI NIC it supports both Ethernet and InfiniBand. Ethernet is the default mode, and InfiniBand mode is available by reconfiguration. It supports RDMA over Converged Ethernet (RoCE), NRZ and PAM4 signalling at 50G and 100G, and NVIDIA In-Network Computing engines for low latency and high throughput. The form factor is half-height, half-length (HHHL) and single-slot.

This adapter is listed for Cisco UCS C220 M8 and C240 M8 rack servers. On the C220 M8 it fits in Riser 1, 2 or 3, and on the C240 M8 LFF it fits in Riser 2 or 3. It is also listed as CAI-P-N7D200GFO for the UCSC-845A M8, with firmware 28.48.1000 in the UCS 6.0 firmware files.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- RDMA over Converged Ethernet (RoCE)
- Supports NRZ and PAM4 (50G and 100G) signalling
- Ethernet mode by default, with InfiniBand mode available by reconfiguration
- NVIDIA In-Network Computing engines for low latency and high throughput
- VPI design supporting both Ethernet and InfiniBand
- PCIe Gen5 x16 host interface for full dual-port 200G bandwidth

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 2 x 200GbE QSFP112
- Controller: NVIDIA ConnectX-7 (MCX755106AS-HEAT)
- Host interface: PCIe Gen5 x16
- Network type: VPI NIC (Ethernet and InfiniBand)
- Crypto: No crypto
- Form factor: Half-height, half-length (HHHL), single-slot
- Signalling: NRZ and PAM4 (50G and 100G)
- Default mode: Ethernet

FAQs

Q: Which Cisco UCS servers is this adapter listed for?
A: It is listed for Cisco UCS C220 M8 and C240 M8 rack servers. It is also listed as CAI-P-N7D200GFO for the UCSC-845A M8.

Q: Which riser slots does it fit in?
A: It is a half-height, half-length, single-slot card. On the C220 M8 it fits in Riser 1, 2 or 3, and on the C240 M8 LFF it fits in Riser 2 or 3.

Q: Does it support InfiniBand as well as Ethernet?
A: Yes. It is a VPI NIC that supports both. Ethernet is the default mode, and InfiniBand mode is available by reconfiguration.

Q: Does this adapter include crypto?
A: No. This is the NVIDIA OEM variant without crypto.

Q: What host interface does it need?
A: It uses a PCIe Gen5 x16 interface to connect to the server.
