Cisco UCSC-P-N6D25GFO | UCS C-Series ConnectX-6 Lx 2x25GbE SFP28 NIC, HHHL
SKU:UCSC-P-N6D25GFO
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

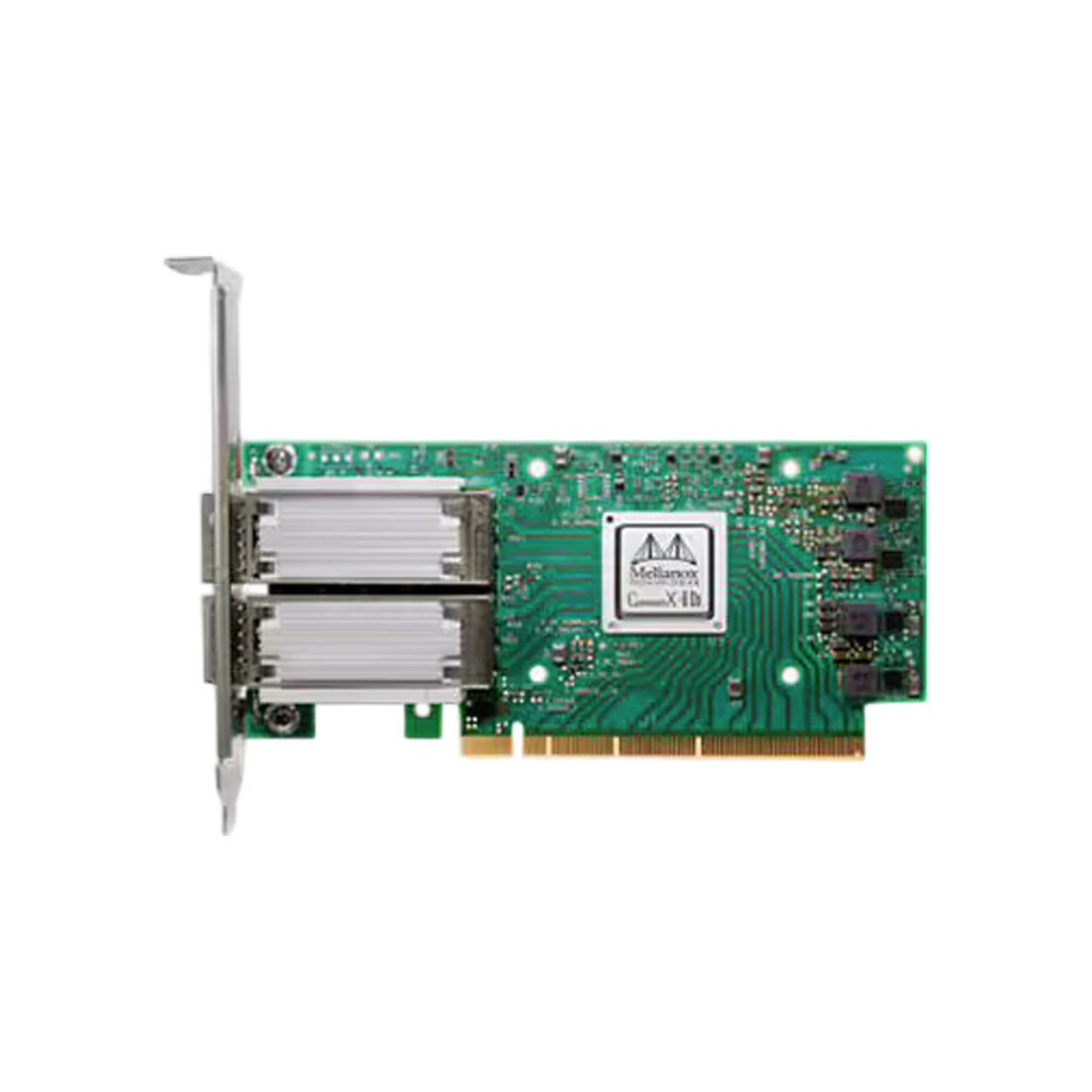

This UCS C-Series network interface card is built on the NVIDIA ConnectX-6 Lx and provides two 25GbE SFP28 ports, with support for 10GbE and 25GbE speeds. It is aimed at enterprise data centres, virtualised and containerised environments, edge deployments, and SDN, NFV and RoCE workloads running on Cisco UCS C-Series rack servers.
The card uses a PCIe Gen3 and Gen4 x8 host interface in a half-height, half-length (low-profile) form factor, with NRZ signalling and up to 50 Gb/s of total bandwidth across the two ports. This variant is the secure boot model without crypto. A hardware root of trust and secure firmware update protect the platform, and each SFP28 port can supply up to 1.5 W to active modules and cables. It is powered from the PCIe slot.
It is qualified for Cisco UCS C220 M7 and C240 M7 rack servers and is also listed in the C220 M6 and C245 M6 spec sheets. Supported genuine optics and cables include SFP-10G-SR, SFP-10G-LR, SFP-25G-SR-S, SFP-10/25G-LR-S and a range of SFP-H25G and SFP-H10GB direct-attach cables. No licence or subscription is required.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- NVIDIA ASAP2 SDN data-plane offload with SR-IOV and VirtIO
- Zero-touch RoCE (RDMA over Converged Ethernet)
- Overlay network acceleration for VXLAN, GENEVE and NVGRE, with MPLS and GTP encapsulation support
- ASAP2 connection-tracking hardware offload for L4 firewall
- Hardware root of trust with secure boot and secure firmware update
- Remote boot over Ethernet, iSCSI, UEFI and PXE
- NC-SI, MCTP over SMBus/PCIe and PLDM for monitoring and firmware update
- Stateless TCP offloads, hierarchical QoS, flow mirroring and sampling, and a programmable flexible parser
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Network ports: 2 x SFP28
- Supported Ethernet speeds: 10GbE, 25GbE
- Network interface technology: NRZ
- Total bandwidth: up to 50 Gb/s
- Host interface: PCIe Gen3 and Gen4, 8 lanes
- Form factor: PCIe HHHL (half-height, half-length, low-profile)
- Controller: NVIDIA ConnectX-6 Lx (OEM MCX631102AS-ADAT)
- Security variant: secure boot, no crypto
- Platform security: hardware root of trust and secure firmware update
- Maximum power available through each SFP28 port: 1.5 W
- Operating temperature: 0 to 55 C (32 to 131 F)
- Non-operating temperature: -40 to 70 C (-40 to 158 F)
- Qualified Cisco servers: UCS C220 M7, UCS C240 M7
FAQs
Q: Does this NIC need a licence or subscription?
A: No. The card operates without any licence or subscription.
Q: How is the card powered?
A: It is powered from the PCIe slot. Each SFP28 port can also supply up to 1.5 W to active modules and cables.
Q: Which Cisco servers is it qualified for?
A: It is qualified for Cisco UCS C220 M7 and C240 M7 rack servers, and is also listed in the C220 M6 and C245 M6 spec sheets as a half-height, half-length x8 PCIe card.
Q: Which optics and cables does it support?
A: Supported parts include SFP-10G-SR, SFP-10G-LR, SFP-25G-SR-S, SFP-10/25G-LR-S, SFP-H25G-CU1M to 4M direct-attach cables, SFP-25G-CU5M, SFP-H10GB-CU1M/3M/5M and the SFP-H25G-AOC10M, SFP-25G-AOC5M/7M and SFP-10G-AOC10M active optical cables. Break-out and split cables are not supported.
Q: How does this variant differ from other ConnectX-6 Lx cards?
A: This is the 2x25GbE SFP28 PCIe Gen4 x8 half-height, half-length model with secure boot and no crypto. The same ConnectX-6 Lx family is also offered in an OCP 3.0 form factor.
