Cisco UCSC-P-M5S100GF | ConnectX-5 EN 1x 100GbE QSFP28 PCIe 3.0 x16 NIC
SKU:UCSC-P-M5S100GF
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

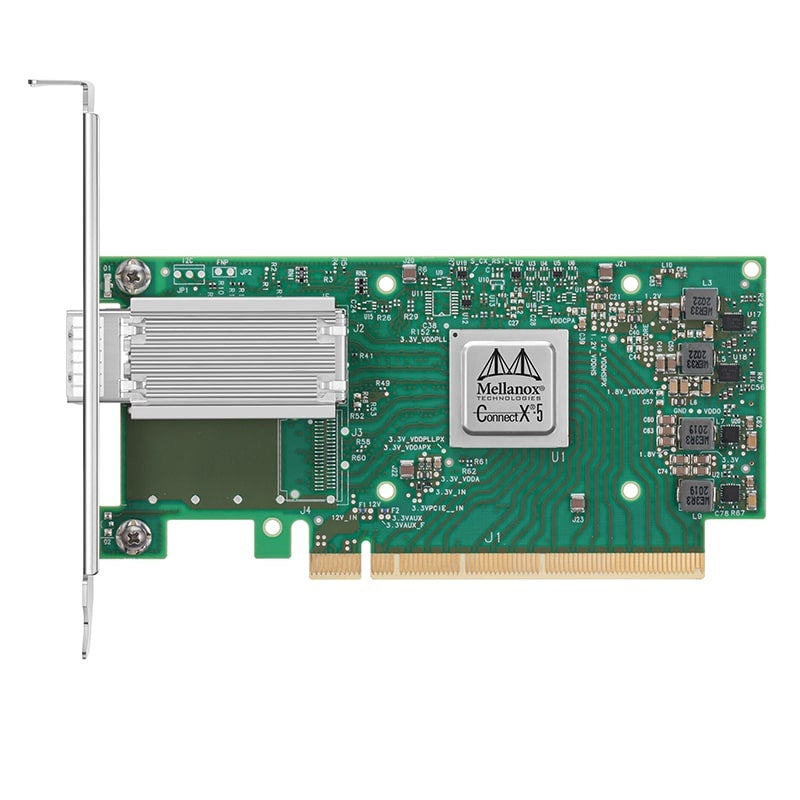

The Cisco UCSC-P-M5S100GF is a single-port 100GbE network interface card built on the Mellanox (NVIDIA) ConnectX-5 EN controller, part number MCX515A-CCAT. It is qualified for Cisco UCS C-Series M5 rack servers and suits high-performance computing, Web 2.0 and cloud data centres, NFV and telco deployments, and storage platforms that use NVMe over Fabrics and RoCE.
The card provides one QSFP28 port that runs at 100, 50, 40, 25, 10 or 1 GbE, and connects to the host over a PCIe 3.0 x16 interface in a half-height, half-length form factor with a tall bracket fitted. It supports RDMA over Converged Ethernet, up to 1K SR-IOV Virtual Functions, 9.6 KB jumbo frames, and hardware offloads for VXLAN, NVGRE and GENEVE overlays, with OvS offload through ASAP2. NVMe-oF target offload, iSER, SRP, NFS RDMA and SMB Direct are supported, along with remote boot over Ethernet, iSCSI, UEFI and PXE. No licence or subscription is required for the NIC hardware.
It is qualified for UCS C220 M5, C240 M5 and C480 M5 servers. Cisco cables and optics listed for it include QSFP-100G-CU3M and CU5M passive copper, QSFP-100G-AOC5M, AOC7M and AOC10M active optical cables, and QSFP-100G-SR4-S, QSFP-100G-LR4-S and QSFP-40/100-SRBD optics.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- RDMA with RoCE and RoCE over overlay networks
- ASAP2 OvS and vSwitch offload to reduce CPU load
- NVMe over Fabrics target offloads
- Embedded PCIe switch with up to 8 bifurcations
- Host Chaining to remove back-end top-of-rack switch ports in storage racks
- SR-IOV hardware I/O virtualisation and NetQueue support
- DPDK and kernel-bypass support
- Hardware-based reliable transport, MPI tag matching and collective offloads
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Cisco Product ID: UCSC-P-M5S100GF
- Mellanox part number: MCX515A-CCAT
- Controller: ConnectX-5 EN network interface card
- Ports: 1x QSFP28, 100GbE
- Ethernet speeds: 100/50/40/25/10/1 GbE
- Host interface: PCIe 3.0 x16, compatible with PCIe Gen 3.0, 2.0 and 1.1
- PCIe link rates: 2.5, 5.0 and 8 GT/s
- Form factor: half-height, half-length (HHHL) PCIe card with tall bracket fitted
- Jumbo frame support: 9.6 KB
- SR-IOV: up to 1K Virtual Functions, up to 16 Physical Functions per host
- Standards: IEEE 802.3bj/bm, 802.3by, 802.3ba, 802.3ae, 802.3az, 802.3ad/802.1AX, 802.1Q/P, 802.1Qbb PFC, 802.1Qaz ETS, 802.1Qau QCN, IEEE 1588v2
- Remote boot: Ethernet, iSCSI, UEFI, PXE
- Operating systems: RHEL/CentOS, Windows, FreeBSD, VMware, OFED, WinOF-2
- Operating temperature: 0 to 55 C
- Storage temperature: -40 to 70 C
- Airflow at 55 C: 300 LFM with passive cable, 350 LFM with 1.5 W active cable
- Compliance: RoHS
FAQs
Q: Does this network card need a licence or subscription?
A: No. The NIC hardware does not require a licence or subscription.
Q: Which Cisco servers is it qualified for?
A: It is qualified for Cisco UCS C220 M5, C240 M5 and C480 M5 rack servers. Check the Cisco TMG Compatibility Matrix for the latest supported list.
Q: Which Cisco cables and optics work with the QSFP28 port?
A: Listed Cisco options include QSFP-100G-CU3M and CU5M passive copper cables, QSFP-100G-AOC5M, AOC7M and AOC10M active optical cables, and QSFP-100G-SR4-S, QSFP-100G-LR4-S and QSFP-40/100-SRBD optics.
Q: Can it run at speeds below 100GbE?
A: Yes. The port supports 100, 50, 40, 25, 10 and 1 GbE, so it can link to lower-speed switch ports with a suitable optic or cable.
Q: What slot does it need?
A: It needs a PCIe x16 electrical slot. In UCS servers it is a half-height, half-length card that fits Riser 1 or Riser 2. It is powered from the slot and no external power connector is documented.
Q: Does it support RDMA and NVMe over Fabrics?
A: Yes. It supports RoCE for RDMA, along with NVMe-oF target offloads, iSER, SRP, NFS RDMA and SMB Direct.
