Cisco

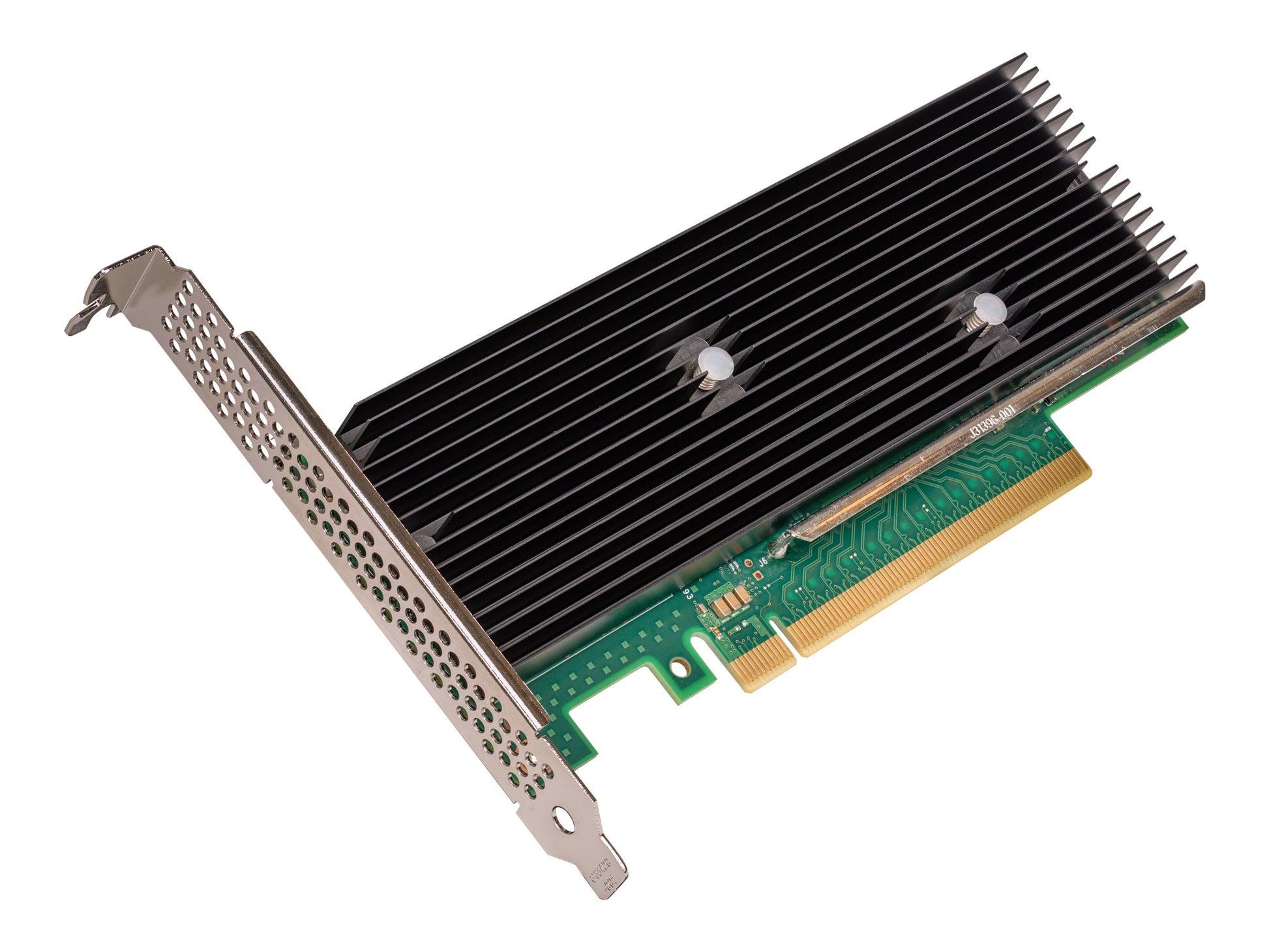

Cisco UCSC-P-IQAT8970 | Intel QAT 8970 PCIe Offload Adapter, Server Installed

SKU:UCSC-P-IQAT8970

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Intel QuickAssist Adapter 8970 is a low-profile PCIe 3.0 x16 card for Cisco UCS C-Series rack servers that offloads cryptography and compression from the host CPU. It suits data centre security, networking, storage and communications workloads, including VPN, SSL/TLS, IPsec and firewall applications, as well as 3G/4G LTE wireless algorithms and NFV deployments.

This is the server-installed option, UCSC-P-IQAT8970, rather than the spare adapter. The card provides up to 100 Gbps of hardware acceleration, with 103 Gbps symmetric cipher performance (AES128-CBC, AES-XCBC) at 4KB packet size, 100K RSA 2K decrypts per second, and Level 1 Dynamic Deflate compression of 66 Gbps and decompression of 160 Gbps at 64KB. SR-IOV provides 3 physical and 48 virtual functions so one adapter can serve several virtual applications.

Power is drawn from the +12V supply through the PCIe edge connector at about 23 W maximum. The heatsink is passive, so the card needs 275 LFM of airflow at 55 C ambient. It is used with Cisco UCS C220 M5, C240 M5 and C480 M5 servers, with software support for Linux, KVM and OpenSSL through the Intel QuickAssist Technology library and APIs.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Standard PCIe access to hardware acceleration for networking, security, storage and communications workloads
- Up to 100 Gbps hardware acceleration performance
- Designed for data centre server thermal, power and low-profile form factor constraints
- SR-IOV allows one physical adapter to serve several virtual data centre applications, with NFV support
- Intel QuickAssist Technology software libraries and APIs supporting IPsec, SSL/TLS, network and storage services
- Hardware acceleration for VPN, SSL/TLS, IPsec and firewall applications
- Hardware DEFLATE compression and decompression offload
- Hardware acceleration for 3G/4G LTE wireless algorithms

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Performance: Up to 100 Gbps hardware acceleration
- Interface: Low-profile PCIe 3.0 x16
- RSA 2K key decrypts: 100K ops/s
- Symmetric cipher performance (AES128-CBC, AES-XCBC): 103 Gbps at 4KB packet
- Compression (Level 1 Dynamic Deflate): 66 Gbps at 64KB
- Decompression (Level 1 Dynamic Deflate): 160 Gbps at 64KB
- SR-IOV virtual functions: 3 Physical / 48 Virtual
- Power (maximum): approx. 23 W
- Airflow: 275 LFM at 55 C ambient
- Cooling: Passive heatsink
- Operating temperature (ambient): 0 to 55 C
- Storage temperature (ambient): -40 to 70 C
- Storage humidity: 90% non-condensing relative humidity at 35 C
- Dimensions (H x L): 2.7 in x 6.6 in
- Symmetric cryptography: AES, 3DES/DES, RC4, KASUMI, ZUC, Snow 3G, MD5, SHA1, SHA2, SHA3, HMAC, AES-XCBC, AES-GCM, AES-CCM, AES-XTS
- Asymmetric cryptography: DH, RSA, DSA, ECDSA, ECDHE, Curve25519
- Compression: DEFLATE (LZ77 + Huffman, gzip/zlib header), stateless
- Software support: Intel QuickAssist Technology library and API, Linux, KVM, OpenSSL
- Regulatory: FCC Part 15 Class A, CE, VCCI, BSMI, EU RoHS/REACH/WEEE, China RoHS

FAQs

Q: Does the adapter need a licence or subscription?
A: No licence or subscription is required. The adapter relies on the Intel QuickAssist Technology software library and drivers.

Q: Which Cisco servers does it work with?
A: It is used with Cisco UCS C220 M5, C240 M5 and C480 M5 rack servers. UCSC-P-IQAT8970 is the server-installed option, while UCSC-P-IQAT8970= is the spare adapter.

Q: How is the adapter powered and cooled?
A: It draws power from the +12V supply through the PCIe edge connector, at about 23 W maximum. The heatsink is passive, so the server must supply 275 LFM of airflow at 55 C ambient.

Q: Which operating systems and software does it support?
A: Software support covers Linux, KVM, open source framework patches and OpenSSL through the Intel QuickAssist Technology software library and API.

Q: Can one adapter serve multiple virtual machines?
A: Yes. SR-IOV provides 3 physical and 48 virtual functions, so a single adapter can serve several virtual data centre applications, including NFV deployments.
