Cisco UCSC-P-I8D25GF | UCS C-Series 2x25/10GbE SFP28 PCIe 4.0 NIC, Server-Installed
SKU:UCSC-P-I8D25GF
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

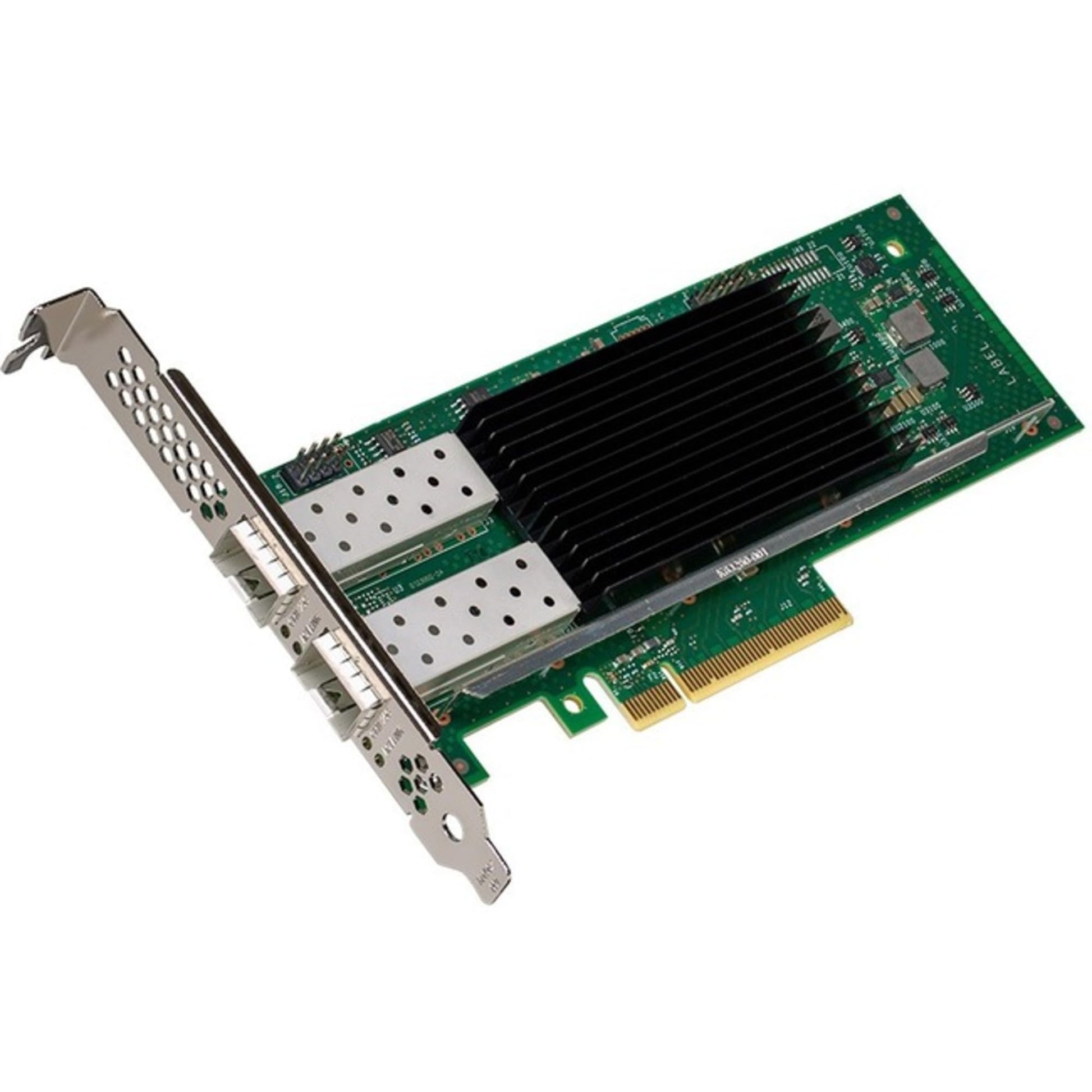

The Cisco UCS C-Series 2x25/10GbE SFP28 NIC is a dual-port server network adapter built on the Intel Ethernet Controller E810-XXV AM2. It is designed for Cisco UCS C-Series rack servers running cloud, enterprise, storage, virtualisation and communications workloads, including NFV deployments that use DPDK and PTP timing for 5G RAN.
Each of the two SFP28 ports runs at 25GbE or 10GbE over a PCIe 4.0 x8 host interface. This SKU is the server-installed adapter, while the spare adapter carries the separate part number UCSC-P-I8D25GF=. The card supports RDMA over both iWARP and RoCEv2 with 256K queue pairs, 2048 Tx and 2048 Rx queues, up to 256 SR-IOV virtual functions and up to 4096 VLAN tags. It draws power from the PCIe slot, with typical consumption of 8.9 W with DACs and 12.1 W with optics at 25GbE maximum traffic. No licence or subscription is required.
The adapter is listed for Cisco UCS C220 M6, C240 M6, C225 M6, C245 M6, C220 M7 and C240 M7 servers. Tested Cisco optics and cables include SFP-25G-SR-S, SFP-10/25G-CSR-S, SFP-10/25G-LR-S, SFP-10G-SR-S, SFP-10G-LR and the SFP-H25G-CU DAC range. A full-height bracket is installed and a low-profile bracket is included.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Application Device Queues (ADQ) for dedicated traffic queues, lower latency and less jitter
- Dynamic Device Personalization (DDP) for protocol-specific traffic acceleration and lower CPU overhead
- RDMA support for both iWARP and RoCEv2, including NVMe over Fabrics transport
- Enhanced DPDK support for faster packet processing
- IEEE 1588 PTP v1 and v2 timing with single-digit nanosecond accuracy
- Hardware Root of Trust with signed firmware, signed UEFI option ROM and NIST 800-193 compliance
- Host virtualisation through VMDq and SR-IOV, with VxLAN, GENEVE, NVGRE and MPLS offloads
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Product type: Network interface card (NIC)
- Cisco Product ID (server installed): UCSC-P-I8D25GF
- Cisco Product ID (spare adapter): UCSC-P-I8D25GF=
- Controller: Intel Ethernet Controller E810-XXV AM2
- Ports: 2 x SFP28
- Data rate: 25/10GbE per port
- Host interface: PCIe 4.0 x8
- Bracket: Full-height installed, low-profile included
- Dimensions: 167 mm x 68 mm (6.57 in x 2.67 in)
- Power with DACs, 25GbE max traffic: 8.9 W typical, 9.8 W max
- Power with DACs, idle: 8.0 W typical, 8.8 W max
- Power with optics, 25GbE max traffic: 12.1 W typical, 13.7 W max
- Power with optics, idle: 11.6 W typical, 12.6 W max
- SFP28 maximum power per port: 1.5 W
- Operating temperature: 0 to 55 C
- Storage temperature: -40 to 70 C
- Supported 25Gbps physical layer: 25GBASE-CR DAC, 25GBASE-SR, 25GBASE-LR
- Supported 10Gbps physical layer: SFP+ Twinax, 10GBASE-SR, 10GBASE-LR
- Queues: 2048 Tx and 2048 Rx
- SR-IOV: Up to 256 virtual functions
- VLAN support: Up to 4096 VLAN tags
- RDMA: iWARP and RoCEv2, 256K queue pairs
- Manageability: SMBus, NC-SI 1.1, MCTP, PLDM
- Certifications: FCC B, UL, CE, VCCI, BSMI, RCM, KCC
- RoHS: Compliant with EU Directive 2011/65/EU and 2015/863/EU
FAQs
Q: Does this NIC need a licence or subscription?
A: No. No licence or subscription is required to use the adapter.
Q: Does it need an external power connector?
A: No external power connector is listed. The card is powered from the PCIe slot and typically draws 8.9 W with DACs or 12.1 W with optics at 25GbE maximum traffic.
Q: Which Cisco UCS servers is it listed for?
A: It is listed for Cisco UCS C220 M6, C240 M6, C225 M6, C245 M6, C220 M7 and C240 M7 rack servers. Check the Cisco UCS HCL tool for current compatibility.
Q: Which Cisco optics and cables work with it?
A: Tested parts include SFP-25G-SR-S, SFP-10/25G-CSR-S, SFP-10/25G-LR-S, SFP-10G-SR-S, SFP-10G-LR, SFP-H25G-CU1M/2M/3M/5M DACs and QSFP-4SFP25G-CU splitter cables. RS-FEC must be enabled for the 2 m, 3 m and 5 m 25G DACs.
Q: How does UCSC-P-I8D25GF differ from UCSC-P-I8D25GF=?
A: UCSC-P-I8D25GF is the server-installed adapter, while UCSC-P-I8D25GF= is the spare part number for the same dual-port 2x25/10GbE SFP28 card.
