Cisco

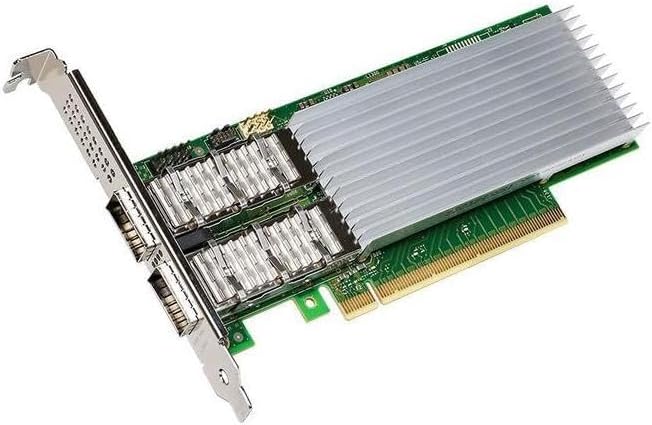

Cisco UCSC-P-I8D100GF | Intel E810-CQDA2 2x 100GbE QSFP28 PCIe 4.0 x16 NIC

SKU:UCSC-P-I8D100GF

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco UCSC-P-I8D100GF is a dual-port 100GbE QSFP28 network adapter from the Intel Ethernet 800 Series, built around the Intel E810-CQDA2 controller for UCS C-Series rack servers. It suits cloud workloads such as edge services, web servers, databases, caching and storage targets, as well as NFV, 5G RAN and mobile core, network appliances, HPC-AI and hybrid cloud deployments.

The card uses a PCIe 4.0 x16 host interface and supports 100, 50, 25 and 10GbE per port, with 1GbE planned for a future release. Each port can be reconfigured with the Ethernet Port Configuration Tool into 1x100GbE, 2x50GbE, 4x25GbE, 4x10GbE or 8x10GbE. RDMA is supported over both iWARP and RoCEv2, and SR-IOV provides up to 256 virtual functions. It is bus-powered from the slot, drawing 16.9 W typical with DACs and 20.8 W typical with 3.5 W optics at full 100GbE load. No licence or subscription is required. A full-height bracket is installed and a low-profile bracket is included.

The adapter is listed for Cisco UCS C220 M6, C240 M6, C225 M6, C245 M6, C220 M7 and C240 M7 servers. Tested Cisco cabling and optics include QSFP-100G-AOC7M and AOC10M, QSFP-100G-CU1M to CU5M, QSFP-100G-SR4-S, QSFP-40/100-SRBD and QSFP-100G-SR1.2.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Application Device Queues (ADQ) for predictable application response times and lower jitter
- Dynamic Device Personalization (DDP) for protocol-specific packet classification
- RDMA over both iWARP and RoCEv2, plus NVMe over Fabrics transport
- Ethernet Port Configuration Tool (EPCT) to change port speeds and configurations on demand
- IEEE 1588 PTP with per-packet timestamps
- Enhanced DPDK support for faster packet processing
- Hardware Root of Trust with signed firmware and platform firmware resiliency
- VxLAN, GENEVE, NVGRE, MPLS and VxLAN-GPE tunnel offloads

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Cisco PID: UCSC-P-I8D100GF
- Ports: 2 x QSFP28
- Data rate per port: 100/50/25/10GbE (1GbE in a future release)
- Host interface: PCIe 4.0 x16
- Controller: Intel Ethernet Controller E810
- Port configurations: 1x100GbE, 2x50GbE, 4x25GbE, 4x10GbE or 8x10GbE
- Full line rate: PCIe 5.0, 4.0 or 3.0 x16 active lanes, and PCIe 4.0 x8 active lanes
- Bracket: full-height installed, low-profile included
- Dimensions: 167 mm x 69 mm
- Power with DACs, 100GbE max traffic: 16.9 W typical / 19.2 W max
- Power with 3.5 W optics, 100GbE max traffic: 20.8 W typical / 27.1 W max
- QSFP28 max power per port: 3.5 W
- Operating temperature: 0 to 60 C
- Storage temperature: -40 to 70 C
- Virtualisation: SR-IOV with up to 256 virtual functions, VMDQ
- Queues: 2048 Tx and 2048 Rx, 256K RDMA queue pairs
- Manageability: SMBus, NC-SI 1.1, MCTP, PLDM, SNMP and RMON counters
- Time sync: IEEE 1588 PTP v1 and v2
- Certifications: FCC B, UL, CE, VCCI, BSMI, RCM, KCC, RoHS

FAQs

Q: Does this NIC need a licence or subscription?
A: No. No licence or subscription is required to use the adapter.

Q: Does it need an external power connector?
A: No external power connector is listed. The card is powered from the PCIe slot and draws 16.9 W typical with DACs and 20.8 W typical with 3.5 W optics at full 100GbE load.

Q: Which Cisco servers is it listed for?
A: It is listed for Cisco UCS C220 M6, C240 M6, C225 M6, C245 M6, C220 M7 and C240 M7 rack servers. Check the Cisco UCS HCL for current support.

Q: Which Cisco optics and cables work with it?
A: Tested Cisco parts include QSFP-100G-AOC7M and AOC10M, QSFP-100G-CU1M, CU2M, CU3M and CU5M, QSFP-4SFP25G-CU1M, CU2M and CU3M, QSFP-100G-SR4-S, QSFP-40/100-SRBD and QSFP-100G-SR1.2. RS-FEC is required on the 2M and 3M DACs.

Q: Can the ports run at lower speeds or be split?
A: Yes. Each port supports 100, 50, 25 and 10GbE, and the Ethernet Port Configuration Tool can set 1x100GbE, 2x50GbE, 4x25GbE, 4x10GbE or 8x10GbE configurations.
