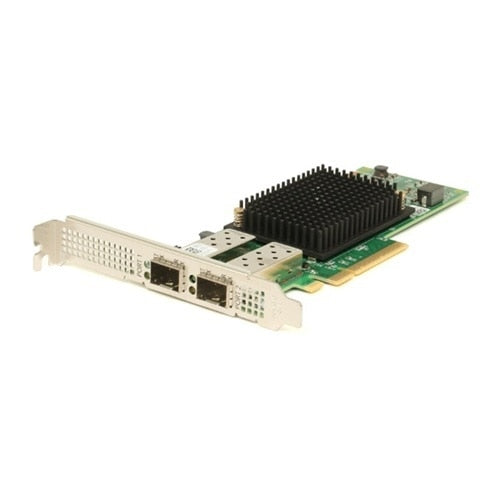

Cisco UCSC-P-B7D32GF-D | UCS C-Series 2-Port 32GFC PCIe 4.0 FC HBA, Short-Wave
SKU:UCSC-P-B7D32GF-D
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The UCS C-Series 2-Port 32GFC Fibre Channel HBA is a dual-port host bus adapter built on the Emulex LPe35002 Gen 7 design for Cisco UCS C-Series rack servers. It suits boot-from-SAN and high-throughput storage connectivity on 32G Fibre Channel SANs, as well as NVMe/FC all-flash array deployments, mission-critical databases and virtualised data centres.
The card provides two 32GFC ports that auto-negotiate to 16GFC or 8GFC, on a PCIe 4.0 x8 host interface that is backward compatible with PCIe 3.0. Throughput reaches 12,800 MB/s full duplex across both ports, with over 5 million IOPS. This SKU is the 2-port 32GFC version with short-wave optics, using LC connectors. Short-wave links reach 70 m on OM3 and 100 m on OM4 or OM5 cabling at 32GFC.
It runs NVMe over Fibre Channel and SCSI FCP at the same time, and supports NPIV, T10 PI offload and boot from SAN. Security features include a Silicon Root of Trust and digitally signed firmware. No software licence or subscription is needed for the adapter.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Up to 3x better hardware latency and 3x the IOPS of the previous generation
- NVMe over Fibre Channel and SCSI FCP supported at the same time
- Silicon Root of Trust, digitally signed firmware and drivers, and Secure Boot
- Hot-plug optics, with no server reboot needed for firmware updates or queue depth changes
- Fabric Performance Impact Notifications (FPINs) per INCITS/T11
- Port isolation and port-based error isolation (RAS)
- Boot from SAN and universal boot
- Emulex HBA Manager (GUI and CLI) with role-based management, SMI-S and HBA API support
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Controller: XE601 (Emulex LPe35002 Gen 7)
- Ports: 2 x 32GFC
- Link speeds: 32GFC, 16GFC and 8GFC, automatically negotiated
- Host bus: PCIe 4.0 x8, backward compatible with PCIe 3.0
- Throughput: 12,800 MB/s full duplex across two 32GFC ports
- IOPS: over 5 million
- Processing architecture: Dynamic Multi-core, 8 cores and 16 threads
- Protocols: FCP (SCSI) and FC-NVMe (NVMe/FC)
- Port virtualisation: NPIV
- Data protection: T10 DIF / T10 PI offload, hardware parity, CRC and ECC
- Optics: short-wave lasers with LC connector
- Cable reach, OM3: 0.5 m to 70 m at 32GFC
- Cable reach, OM4 and OM5: 0.5 m to 100 m at 32GFC
- Form factor: short, low-profile PCIe card
- Dimensions (L x W): 167.64 x 68.91 mm
- Operating temperature: 0 to 55 C
- Storage temperature: -20 to 85 C
- Relative humidity: 5% to 95% non-condensing
- Reliability: 10 million hours MTBF
- Regulatory: FCC/ICES Class A, UL/CSA, CE, EU RoHS, RCM Class A, VCCI, KCC, BSMI, China RoHS
FAQs
Q: Does this HBA need a licence or subscription?
A: No. The adapter needs no software licence or subscription. Emulex HBA Manager is a free management utility.
Q: Which servers and switches does it work with?
A: It is designed for Cisco UCS C220 and C240 M6 servers and connects to Cisco MDS 9148T, 9132T and 9396T 32G switches. Check the Cisco UCS Hardware Compatibility List for the current server list.
Q: How does it differ from the long-wave option?
A: This SKU uses short-wave optics over multimode fibre, reaching 70 m on OM3 and 100 m on OM4 or OM5 at 32GFC. Runs of up to 10 km on single-mode fibre need Emulex-approved long-wave optics such as the LP32-LW-OPT-2.
Q: How is the card powered and which slot does it need?
A: It is powered through the PCIe x8 slot and needs no separate power connection. It runs at PCIe 4.0 speeds and is backward compatible with PCIe 3.0 slots.
Q: Which operating systems are supported?
A: Supported operating systems include Windows, RHEL, SLES, VMware vSphere, Oracle Linux and Solaris, Citrix and Ubuntu.
