Cisco UCSC-O-N6CD100GF | ConnectX-6 Dx Dual-Port 100GbE QSFP56 OCP 3.0 NIC
SKU:UCSC-O-N6CD100GF
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

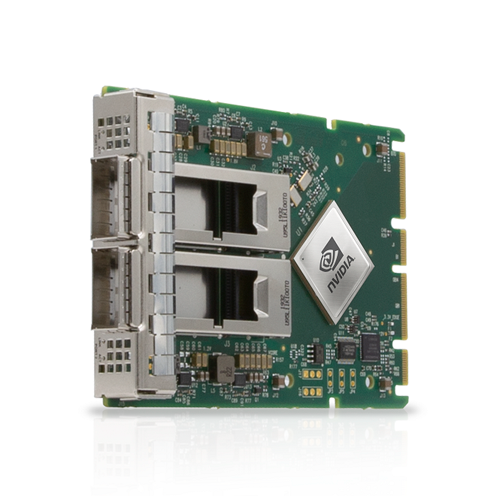

The ConnectX-6 Dx is a dual-port 100GbE network adapter in the OCP 3.0 SFF form factor, built for Cisco UCS C-Series M6 and M7 rack servers. It offloads cloud networking, inline security, RoCE and NVMe-oF storage work from the server CPU, which suits cloud and data centre deployments running virtualisation, SDN/NFV, big data, machine learning and high-speed storage.
The card provides two QSFP56 ports, each supporting 10, 25, 40, 50 or 100GbE, for up to 200Gb/s of total bandwidth. The host interface is PCIe Gen4.0 x16 with NVIDIA Multi-Host technology, and the NRZ/PAM4 network interface supports both signalling modes. This SKU includes Crypto and Secure Boot with host management, a hardware root of trust with secure firmware update, and a thumbscrew (pull tab) bracket. Typical power draw is 19 W and maximum is 26.6 W with passive cables, and the operating temperature range is 0 to 55 C.
It is qualified for the Cisco UCS C220 M6, C240 M6, C220 M7 and C240 M7. Supported genuine Cisco optics and cables include QSFP-100G-AOC5M/7M/10M, QSFP-100G-CU3M/5M, QSFP-100G-LR4-S, QSFP-100G-SR4-S, QSFP-40/100-SRBD, QSFP-100G-DR-S and QSFP-100G-SR1.2.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hardware acceleration for virtual switch (vSwitch) and virtual router (vRouter)
- ASAP2 acceleration for SDN and VNF, with SR-IOV and VirtIO in hardware
- Overlay acceleration for VXLAN, GENEVE and NVGRE
- Zero-touch RoCE and RoCE over IPsec
- Inline hardware IPsec and TLS encryption and decryption with AES-GCM 128/256-bit
- Data-at-rest AES-XTS 256/512-bit encryption
- NVMe-oF target and initiator offloads, plus T10-DIF, SRP, iSER, NFS over RDMA and SMB Direct
- Management via NC-SI over RBT, MCTP over SMBus/PCIe, PLDM and I2C
- Remote boot over Ethernet and iSCSI, with UEFI and PXE for x86 and Arm servers
- NVIDIA Multi-Host technology supports connection of up to four hosts
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 2 x QSFP56
- Port speeds: 10/25/40/50/100GbE per port
- Maximum total bandwidth: 200Gb/s
- Network interface technologies: NRZ/PAM4
- Host interface: PCIe Gen4.0 x16 with NVIDIA Multi-Host technology
- Form factor: OCP 3.0 SFF
- Security: Crypto and Secure Boot, hardware root of trust, secure firmware update
- Host management: supported
- Bracket: thumbscrew (pull tab)
- Typical power (passive cable): 19 W active, 5.7 W standby
- Maximum power (passive cable): 26.6 W active, 10 W standby
- Operating temperature: 0 to 55 C (32 to 131 F)
- Storage temperature: -40 to 70 C (-40 to 158 F)
- Airflow (passive cable): 600 LFM at 55 C active, 100 LFM at 45 C standby
- Qualified servers: Cisco UCS C220 M6, C240 M6, C220 M7, C240 M7
- Cisco PID: UCSC-O-N6CD100GF
- Cisco SKU: 30-100309-01
- NVIDIA SKU: 900-9X658-0086-SB0 (legacy OPN MCX623436AC-CDAB)
FAQs
Q: Does this adapter need a licence or subscription?
A: No. The adapter does not require a licence or subscription for its hardware offload features.
Q: Which Cisco servers is it qualified for?
A: It is qualified for the Cisco UCS C220 M6, C240 M6, C220 M7 and C240 M7 rack servers.
Q: What power does it draw?
A: It is powered through the OCP 3.0 slot of the host server. Typical power is 19 W and maximum is 26.6 W with passive cables. Active cables add to this based on the module power.
Q: Which optics and cables does it work with?
A: Supported Cisco parts include QSFP-100G-AOC5M/7M/10M, QSFP-100G-CU3M/5M, QSFP-100G-LR4-S, QSFP-100G-SR4-S, QSFP-40/100-SRBD, QSFP-100G-DR-S and QSFP-100G-SR1.2. Break-out and split cables are not supported.
Q: What speeds does each port support?
A: Each QSFP56 port supports 10, 25, 40, 50 and 100GbE. The card provides up to 200Gb/s of total bandwidth across both ports.
