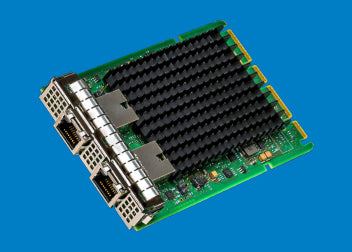

Cisco UCSC-O-ID10GC-D | UCS C-Series 2x10GbE RJ45 OCP 3.0 SFF Network Adapter
SKU:UCSC-O-ID10GC-D
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The UCSC-O-ID10GC-D is a dual-port 10GBASE-T network adapter in the OCP NIC 3.0 Small Form Factor, built on the Intel Ethernet Controller X710-AT2. It is designed for Cisco UCS C-Series rack servers and suits 10GbE server connectivity over existing copper cabling for enterprise IT, cloud, virtualised and NFV workloads.
Both ports are RJ45 copper and auto-negotiate between 10GbE, 5GbE, 2.5GbE, 1GbE and 100Mbps, so the adapter can connect to a mix of switch speeds. It uses a PCIe 3.0 x8 host interface, measures 115 mm x 76 mm and draws a typical 8.8 W (maximum 9.5 W) at 10GbE. 10GBASE-T reaches 55 m on CAT6 and 100 m on CAT6A. Energy Efficient Ethernet is supported on 10/1GBASE-T links. No licence or subscription is required.
This is the OCP 3.0 slot version. The PCIe half-height half-length equivalent is UCSC-P-ID10GC-D. Listed server support includes the UCS C225 M6, C245 M6, C220 M7 and C240 M7, and current server and operating system compatibility can be checked in the Cisco UCS Hardware Compatibility List.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- OCP NIC 3.0 Small Form Factor design for the server OCP 3.0 slot
- Energy Efficient Ethernet (IEEE 802.3az) for 10/1GBASE-T links
- Auto-negotiation across 10GbE, 5GbE, 2.5GbE, 1GbE and 100Mbps
- Network virtualisation offloads including VxLAN, GENEVE, NVGRE, MPLS and VxLAN-GPE with NSH
- Intel Ethernet Flow Director for hardware-based traffic steering
- Dynamic Device Personalization (DDP) for NFV and cloud workloads
- DPDK optimised packet processing with SR-IOV and VMDq I/O virtualisation
- Time synchronisation support (IEEE 1588, 802.1as)
- Secure firmware with platform resiliency (Protect, Detect, Recover)
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Controller: Intel Ethernet Controller X710-AT2
- Form factor: OCP NIC 3.0 Small Form Factor
- Dimensions: 115 mm x 76 mm
- Host interface: PCIe 3.0 x8
- Ports: 2 x RJ45 copper (dual port)
- Port speeds: 10Gbps, 5Gbps, 2.5Gbps, 1Gbps and 100Mbps
- 10GBASE-T reach: 55 m on CAT6, 100 m on CAT6A
- 100BASE-TX / 1000BASE-T reach: 100 m on CAT5e, CAT6 or CAT6A
- Typical power at 10GbE: 8.8 W (maximum 9.5 W)
- Typical power at 1GbE: 5.6 W (maximum 6.1 W)
- Typical power at 100Mbps: 4.9 W (maximum 5.3 W)
- Queues: 1,536 Tx and Rx queues per device
- SR-IOV: 128 virtual functions per device (64 per port)
- VMDq: up to 256 VMs
- VLAN: up to 4096 VLAN tags
- Interrupt levels: INT A, MSI, MSI-X
- Manageability: NC-SI 1.1, MCTP 1.2, RBT, PXE, UEFI, SNMP/RMON counters
- Bracket: Interlock bracket
- Storage temperature: -40 C to 70 C
- Storage humidity: maximum 90% non-condensing at 35 C
- Certifications: FCC Class A, cULus, CE, VCCI, BSMI, RCM, KCC, RoHS compliant
FAQs
Q: Does this adapter need a licence or subscription?
A: No. The adapter works without any licence or subscription.
Q: How is it powered?
A: It draws power from the server's OCP 3.0 slot. Typical consumption is 8.8 W at 10GbE, with a maximum of 9.5 W.
Q: Which Cisco UCS servers is it listed for?
A: Listed server support includes the UCS C225 M6, C245 M6, C220 M7 and C240 M7. Check the Cisco UCS Hardware Compatibility List for current server and operating system support.
Q: How does it differ from UCSC-P-ID10GC-D?
A: Both are 2x10GbE RJ45 adapters. UCSC-O-ID10GC-D is the OCP 3.0 Small Form Factor card, while UCSC-P-ID10GC-D is the PCIe half-height half-length version.
Q: What cabling is needed for 10GbE speeds?
A: For 10GBASE-T, use CAT6 for runs up to 55 m or CAT6A for runs up to 100 m. Lower speeds run up to 100 m on CAT5e, CAT6 or CAT6A.
