Cisco UCSC-NVMEHW-H7680 | UCS 7.68TB 2.5-inch U.2 NVMe SSD, 1 DWPD, Western Digital
SKU:UCSC-NVMEHW-H7680
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

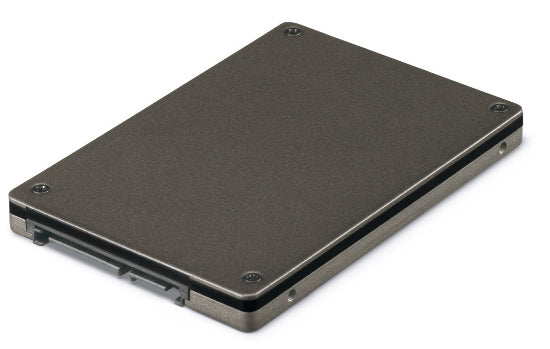

This 7.68TB 2.5-inch U.2 NVMe solid state drive is built for Cisco UCS C-Series rack servers, giving latency-sensitive workloads a local high-endurance flash tier. It carries the rack server PID, is sourced from Western Digital and is managed through Cisco IMC or UCS Manager.
The drive uses a PCIe Gen 3 x4 interface with NVMe 1.2 and is rated at 1 DWPD over a five-year basis. Sequential throughput reaches up to 3360 MBps read and 2230 MBps write at 64 KB, while 4 KB random performance reaches up to 835K read IOPS and 238K write IOPS. Write latency is approximately 20 microseconds. Power draw is 25 W active and 8 W idle per drive, taken from the server drive bay. No licence or subscription is required.
It is supported in Cisco UCS C220 M5 and C240 M5 (up to 10 drives each), C480 M5 (up to 32) and C125 (up to 2). It requires Cisco IMC 2.0(13) or later in standalone mode, or UCS Manager 3.1(2) or later. Western Digital and Intel NVMe drives cannot be mixed in the same server.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Low-latency NVMe storage integrated into the Cisco UCS architecture
- Managed through Cisco IMC in standalone mode or Cisco UCS Manager
- Hot insertion and OS-informed removal on C240 M5, C480 M5 and C125 with Cisco IMC 2.0(13) or later
- High-endurance 1 DWPD rating for write-intensive local storage
- Lower power, cooling and cost per IOPS than spinning media
- Rack server PID with a matching blade PID available separately
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Capacity: 7680 GB (7.68TB)
- Form factor: Small Form Factor (SFF) 2.5-inch U.2
- Interface: PCIe Gen 3 x4
- NVMe version: 1.2
- Endurance: 1 DWPD (based on 5-year basis)
- Sequential read (64 KB): up to 3360 MBps
- Sequential write (64 KB): up to 2230 MBps
- Random read (4 KB): up to 835K IOPS
- Random write (4 KB): up to 238K IOPS
- Random mixed 70/30 (4 KB): up to 238K IOPS
- Approximate write latency: 20 microseconds
- Power consumption: 25 W active / 8 W idle
- MTBF: 2 million hours
- Device partner: Western Digital
- Max quantity, C220 M5: up to 10
- Max quantity, C240 M5: up to 10
- Max quantity, C480 M5: up to 32
- Max quantity, C125: up to 2
- Hot insert: C240 M5, C480 M5 and C125 (C220 M5 not supported)
- Minimum software: Cisco IMC 2.0(13) standalone, UCS Manager 3.1(2)
FAQs
Q: Does this drive need a licence or subscription?
A: No. No licence or subscription is required to use this drive in a supported Cisco UCS server.
Q: Which Cisco UCS servers support it?
A: It is supported in UCS C220 M5 and C240 M5 (up to 10 drives each), C480 M5 (up to 32) and C125 (up to 2). It requires Cisco IMC 2.0(13) or later in standalone mode, or UCS Manager 3.1(2) or later.
Q: Can it be hot-swapped?
A: Hot insertion and OS-informed removal are supported on C240 M5, C480 M5 and C125 with Cisco IMC 2.0(13) or later. Hot insertion is not supported on the C220 M5, and OS surprise removal is not supported.
Q: How much power does each drive draw?
A: Each drive draws 25 W active and 8 W idle, supplied from the server drive bay and backplane.
Q: Can I mix it with Intel NVMe drives in the same server?
A: No. Mixing Western Digital and Intel NVMe drives in the same server is not supported.
