Cisco

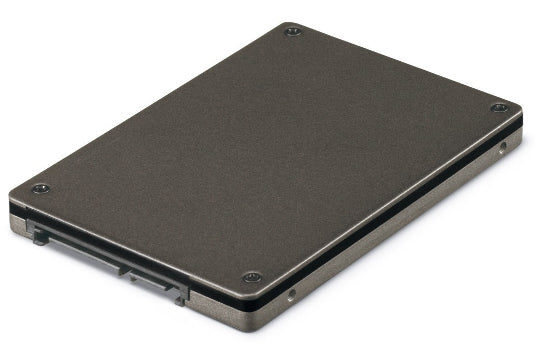

Cisco UCSC-NVMEHW-H6400 | 6.4TB 2.5in U.2 NVMe SSD, High Endurance, 3 DWPD

SKU:UCSC-NVMEHW-H6400

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 6.4TB 2.5-inch U.2 NVMe SSD is a Western Digital (HGST SN200) drive built for Cisco UCS C-Series rack servers. It is the high performance, high endurance option in the Cisco UCS NVMe storage range, aimed at replacing or augmenting SAN and NAS storage and relieving I/O bottlenecks for virtualised and data-intensive workloads.

The drive connects over PCIe Gen 3 x4 using NVMe 1.2a, with up to 3360 MBps sequential read and 2230 MBps sequential write. Random 4 KB performance reaches up to 835K read IOPS and 534K write IOPS, with write latency of approximately 20 microseconds. Endurance is rated at 3 DWPD on a 5-year basis, and power draw is 25 W active and 4 W idle. This is the rack PID, UCSC-NVMEHW-H6400. Blade servers use the matching UCSB-NVMEHW-H6400.

It is supported in Cisco UCS C220 M5, C240 M5, C480 M5, S3260 M4 and C125 rack servers. It needs standalone Cisco IMC 2.0(13) or later, or UCS Manager 3.1(2) or later. Western Digital and Intel NVMe drives should not be mixed in the same server.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Full Cisco UCS Manager inventory, service-profile mapping and firmware update support
- Supported under Cisco UCS Manager or standalone Cisco IMC on rack servers
- Direct CPU-to-PCIe lane connectivity with zero oversubscription
- Endurance and performance-state tracking in UCS Manager and IMC
- Power and cooling algorithms via SMBus integration for consistent performance
- Co-engineered with Western Digital (formerly HGST) exclusively for Cisco

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Capacity: 6400 GB
- Form factor: Small Form Factor (SFF) 2.5in U.2
- Interface: Gen 3 PCIe x4
- NVMe version: 1.2a
- Endurance: 3 DWPD (based on 5-year basis)
- Mean Time Between Failures (MTBF): 2 million hours
- Sequential read (64 KB, max): 3360 MBps
- Sequential write (64 KB, max): 2230 MBps
- Random read (4 KB): 835K IOPS
- Random write (4 KB): 534K IOPS
- Random mixed 70/30 (4 KB): 534K IOPS
- Write latency: approximately 20 microseconds
- Power consumption (active/idle): 25 W / 4 W
- Device partner: Western Digital (HGST)
- Cisco PID (rack): UCSC-NVMEHW-H6400
- Cisco PID (blade): UCSB-NVMEHW-H6400
- Max qty per server: C220 M5 10, C240 M5 10, C480 M5 32, S3260 M4 1, C125 2, B200 M5 2, B480 M5 4
- OS informed removal: yes; OS surprise removal: no

FAQs

Q: Does this SSD need a licence?
A: No. No licence is required for this drive.

Q: Which Cisco UCS servers does it work in?
A: It is supported in Cisco UCS C220 M5, C240 M5, C480 M5, S3260 M4 (1 drive maximum) and C125 rack servers. Blade servers such as the B200 M5 and B480 M5 use the matching PID UCSB-NVMEHW-H6400.

Q: What software versions are required?
A: It requires standalone Cisco IMC 2.0(13) or later, or UCS Manager 3.1(2) or later.

Q: Can I hot-insert this drive?
A: Hot insert is supported on C240 M5, C480 M5 and C125 servers with IMC 2.0(13) or later, but not under UCS Manager. The C220 M5 does not support hot insert.

Q: Can I mix it with Intel NVMe drives in the same server?
A: No. Mixing Western Digital and Intel NVMe drives in the same server is not supported.

Q: Does it need a separate power supply?
A: No. It is powered from the server drive bay and draws 25 W active and 4 W idle.
