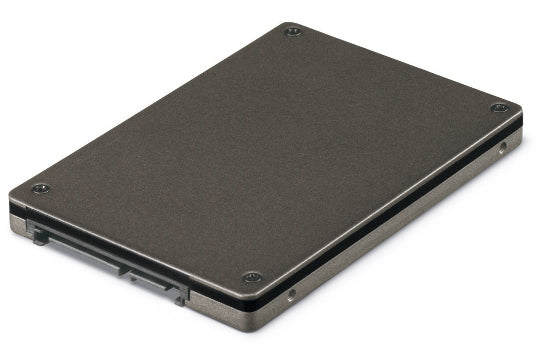

Cisco UCSC-NVMEHW-H3200 | UCS 3.2TB 2.5in U.2 NVMe SSD, 3 DWPD, High Endurance
SKU:UCSC-NVMEHW-H3200
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This 3.2 TB high-endurance NVMe SSD is part of the Cisco UCS NVMe storage range for C-Series rack servers. It is a 2.5-inch U.2 drive built with Western Digital and is aimed at workloads that need low-latency, write-intensive flash, including local storage tiers that replace SAN or NAS in some deployments.
The drive uses a PCIe Gen 3 x4 interface and NVMe 1.2a, with an endurance rating of 3 DWPD. Sequential throughput reaches up to 3320 MBps read and 2120 MBps write, with up to 821K random read IOPS and 187K random write IOPS at 4 KB. Power draw is 25 W active and 4 W idle, and the drive is powered through the server's U.2 NVMe drive bay.
It is supported in UCS C220 M5, C240 M5, C480 M5, C125 and S3260 M4 rack servers. Western Digital and Intel NVMe drives cannot be mixed in the same server. Standalone mode needs Cisco IMC 2.0(13) or later, and UCS Manager support needs release 3.1(2) or later.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Co-engineered with Western Digital and tested by Cisco for UCS servers
- Full CPU-to-PCIe lane connectivity to each device with zero oversubscription
- Inventory, service-profile mapping and firmware updates through Cisco UCS Manager
- Standalone management through Cisco IMC on rack servers
- Endurance and performance-state tracking shown in Cisco UCS Manager or Cisco IMC
- Power and cooling algorithms use SMBus integration for efficient power use and consistent performance
- High-endurance 3 DWPD rating suited to write-intensive workloads
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Capacity: 3200 GB (3.2 TB)
- Form factor: 2.5-inch Small Form Factor (SFF) U.2
- Interface: PCIe Gen 3 x4
- NVMe version: 1.2a
- Endurance: 3 DWPD
- Device partner: Western Digital
- Sequential read (64 KB): up to 3320 MBps
- Sequential write (128 KB): up to 2120 MBps
- Random read (4 KB): up to 821K IOPS
- Random write (4 KB): up to 187K IOPS
- Random mixed 70% read / 30% write (4 KB): 386K IOPS
- Approximate write latency: 20 microseconds
- Power consumption: 25 W active / 4 W idle
- MTBF: 2 million hours
- Max drives per C220 M5: 10
- Max drives per C240 M5: 10
- Max drives per C480 M5: 32
- Max drives per S3260 M4: 1
- Max drives per C125: 2
- Hot insert: not supported on C220 M5, C240 M5, C480 M5 and C125 rack servers
- OS informed removal: supported on rack servers
FAQs
Q: Which Cisco UCS servers support this drive?
A: This rack PID is supported in the UCS C220 M5, C240 M5, C480 M5, C125 and S3260 M4 (up to 1 drive). Blade servers such as the B200 M5 and B480 M5 use the matching UCSB-NVMEHW-H3200 PID.
Q: Does it need a separate power supply?
A: No. The drive is powered through the server's U.2 NVMe drive bay and draws 25 W active and 4 W idle.
Q: What management software versions are required?
A: Standalone mode needs Cisco IMC 2.0(13) or later. UCS Manager support needs release 3.1(2) or later.
Q: Can it be mixed with Intel NVMe drives in the same server?
A: No. Western Digital and Intel NVMe drives cannot be mixed in the same server.
Q: Is the drive hot-pluggable?
A: Not on the C220 M5, C240 M5, C480 M5 and C125 rack servers. OS-informed removal is supported on rack servers with Cisco IMC 2.0(13) or later.
Q: How does this differ from other drives in the range?
A: This SKU is the 3.2 TB, 3 DWPD high-endurance model built with Western Digital and NVMe 1.2a.
