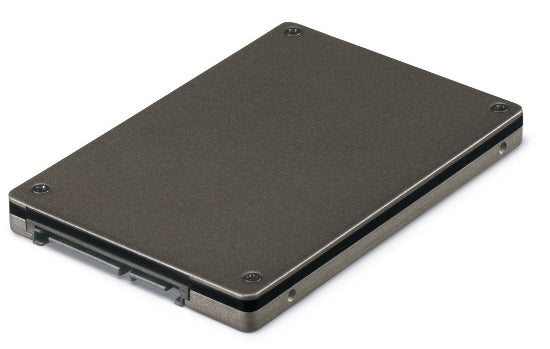

Cisco UCSC-NVMEHW-H1600 | UCS 1.6TB U.2 NVMe SSD, 3 DWPD, PCIe 3.0 x4

SKU:UCSC-NVMEHW-H1600

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The 1.6 TB 2.5-inch U.2 NVMe SSD is a high-endurance drive for Cisco UCS C-Series rack servers. Built by Western Digital for Cisco, it gives I/O-intensive workloads fast local flash inside the server, and it can replace or supplement SAN and NAS storage to help reduce application licensing costs.

The drive offers 1600 GB of capacity over a PCIe Gen 3 x4 interface and supports NVMe 1.2a. It is rated at 3 drive writes per day, with up to 818K random read IOPS at 4 KB, up to 3320 MBps sequential read and up to 2100 MBps sequential write. Power draw is 25 W active and 8 W idle, supplied through the server drive bay or backplane. No licence or subscription is needed for the drive itself.

It is listed for UCS C220 M5, C240 M5, C480 M5, C125 and S3260 M4 servers. Standalone Cisco IMC needs release 2.0(13) or later, and Cisco UCS Manager needs release 3.1(2) or later. Western Digital and Intel NVMe drives cannot be mixed within the same server.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Inventory, service-profile mapping and firmware updates for Cisco NVMe devices through Cisco UCS Manager
- Zero-oversubscription CPU-to-PCIe lane connectivity to each drive
- Endurance and performance-state tracking in Cisco UCS Manager or Cisco IMC
- Power and cooling algorithms using SMBus integration for consistent performance with server inlet temperatures below 35 C
- Managed by Cisco UCS Manager or in a standalone Cisco IMC environment
- Local flash that can replace or augment SAN and NAS storage and reduce application licensing costs

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Capacity: 1600 GB
- Form factor: Small Form Factor (SFF) 2.5 inch U.2
- Interface: PCIe Gen 3 x4
- NVMe version: 1.2a
- Endurance: 3 DWPD (based on 5-year manufacturer rating)
- Device partner: Western Digital
- Sequential read (64 KB): up to 3320 MBps
- Sequential write (128 KB): up to 2100 MBps
- Random read (4 KB): up to 818K IOPS
- Random write (4 KB): up to 173K IOPS
- Random mixed 70% read / 30% write (4 KB): up to 346K IOPS
- Write latency: approximately 20 microseconds
- Power consumption: 25 W active, 8 W idle
- MTBF: 2 million hours
- Hot insertion: not supported on C220 M5, C240 M5, C480 M5 and C125 (OS-informed removal supported)
- Drives per server: C220 M5 up to 10, C240 M5 up to 10, C480 M5 up to 32, S3260 M4 up to 1, C125 up to 2

FAQs

Q: Does this SSD need a licence or subscription?
A: No. The drive itself needs no licence or subscription.

Q: Which servers does this drive work with?
A: It is listed for Cisco UCS C220 M5, C240 M5, C480 M5, C125 and S3260 M4 rack servers. The blade equivalent is a separate part number, UCSB-NVMEHW-H1600.

Q: Which management software versions are required?
A: Standalone Cisco IMC needs release 2.0(13) or later, and Cisco UCS Manager needs release 3.1(2) or later.

Q: Can I mix it with Intel NVMe drives in the same server?
A: No. Western Digital and Intel NVMe drives cannot be mixed within the same server. SFF and HHHL devices can be combined only if they come from the same partner.

Q: How much power does the drive draw?
A: It draws 25 W active and 8 W idle, supplied by the server drive bay or backplane.
