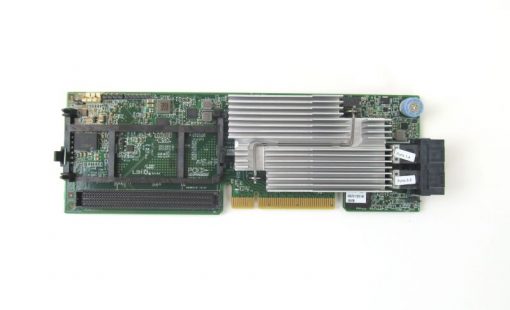

Cisco UCSC-MRAID12G | UCS C-Series 12G SAS RAID Controller, RAID 0/1/10
SKU:UCSC-MRAID12G
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This 12Gb/s SAS modular RAID controller is built for Cisco UCS C-Series M4 rack servers. It provides hardware RAID for internal SAS and SATA hard drives and SSDs, offloading array management from the host processor and keeping server storage under a single controller.
The controller connects to the host over PCIe 3.0 and runs drives at up to 12Gb/s. In its base configuration it delivers hardware RAID 0, 1 and 10. Fitting a cache module enables the parity-based levels RAID 5, 6, 50 and 60, which suits deployments that need capacity efficiency and drive-failure protection.
It is a modular (mezzanine) design intended for the Cisco UCS C220 M4 and C240 M4 rack servers, including the Smart Play 8 and VDI C240 M4 bundle configurations.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- 12Gb/s SAS throughput
- PCIe 3.0 host connectivity
- Hardware RAID 0, 1 and 10 in the base configuration
- RAID 5, 6, 50 and 60 enabled with a cache module
- Supports SAS and SATA hard drives and SSDs
- Modular design for UCS C-Series M4 rack servers
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Device type: Storage controller (RAID)
- Interface: SAS 12Gb/s
- Data transfer rate: 12 Gbps
- Host interface: PCIe 3.0
- Base RAID levels: 0, 1, 10
- RAID levels with cache module: 5, 6, 50, 60
- Drive support: SAS and SATA HDD and SSD
- Form factor: Modular (mezzanine)
- Designed for: Cisco UCS C220 M4 and C240 M4 rack servers
FAQs
Q: Which RAID levels does this controller support?
A: The base configuration supports hardware RAID 0, 1 and 10. RAID 5, 6, 50 and 60 are available when a cache module is fitted.
Q: Which servers is it designed for?
A: It is designed for Cisco UCS C220 M4 and C240 M4 rack servers, including the Smart Play 8 and VDI C240 M4 bundle configurations.
Q: What types of drives can it manage?
A: It supports both SAS and SATA hard disk drives and solid state drives.
Q: How does this SKU differ from a cache-equipped configuration?
A: This SKU provides RAID 0/1/10 as standard. The parity-based RAID 5/6/50/60 levels require a cache module to be fitted.
