Cisco

Cisco UCSC-MLOM-IRJ45 | UCS Intel i350 Quad-Port 1GbE RJ45 mLOM NIC

SKU:UCSC-MLOM-IRJ45

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

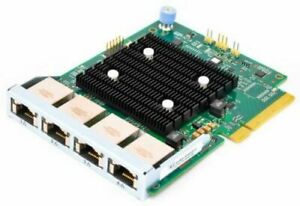

The UCSC-MLOM-IRJ45 is a quad-port 1 Gigabit Ethernet network interface card in the Cisco UCS C-Series Network Adapters range. It is built on the Intel i350 controller and installs in the dedicated modular LAN-on-motherboard (mLOM) slot of supported UCS C-Series rack servers, so it does not occupy a PCIe slot.

The card provides four 1GBase-T RJ-45 ports with an x8 electrical connection. The four i350 ports are separate from the two embedded LOM ports on the server motherboard, which makes it a straightforward way to add LAN, management or backup links, or to give a virtualisation host several 1GbE connections. It is the mLOM form factor of the Intel i350 quad-port adapter, as opposed to the PCIe version, UCSC-PCIE-IRJ45.

The card is powered from the host server through the mLOM slot, so no separate power supply is needed. It is listed as an mLOM option for the Cisco UCS C220 M5 and C240 M5 rack servers. Confirm the server model against the Cisco UCS Hardware Compatibility List before ordering.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Four 1GbE RJ-45 ports on a single mLOM card
- Uses the dedicated mLOM slot, leaving PCIe slots free
- Ports are separate from the two embedded LOM ports on the server motherboard
- Intel i350 controller
- PXE boot, iSCSI, SR-IOV and jumbo frame support
- No separate power supply required

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Product ID: UCSC-MLOM-IRJ45
- Description: Intel i350 Quad Port 1GBase-T NIC
- Ports: 4 x 1GBase-T (RJ-45)
- Controller: Intel i350
- Form factor: mLOM
- Location: mLOM slot
- Electrical slot: x8
- Card height: N/A (mLOM)
- Power: supplied by the host server through the mLOM slot
- Product category: Network Interface Card (NIC), mLOM

FAQs

Q: Does this card use a PCIe slot?
A: No. It installs in the server's dedicated mLOM slot, so all PCIe slots stay available for other cards.

Q: How is it different from UCSC-PCIE-IRJ45?
A: Both are Intel i350 quad-port 1GBase-T adapters. This one is the mLOM form factor and the other is the PCIe version.

Q: Which servers is it listed for?
A: It is listed as an mLOM option in the Cisco UCS C220 M5 and C240 M5 spec sheets. Check the Cisco UCS Hardware Compatibility List for your specific server model before ordering.

Q: Does it need a separate power supply?
A: No. It is powered from the host server through the mLOM slot.

Q: Does it need a licence?
A: No licence is required for the network adapter.
