Cisco

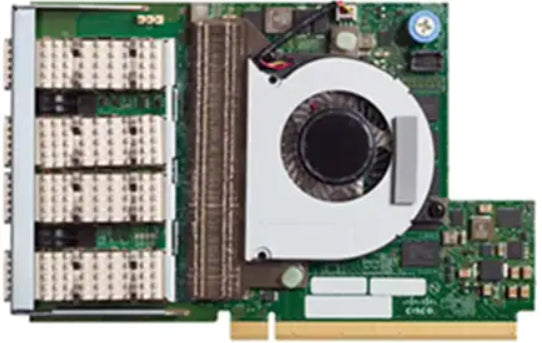

Cisco UCSC-MLOM-C25Q-04 | UCS VIC 1457 mLOM 4x10/25G SFP28, C220/C240 M5

SKU:UCSC-MLOM-C25Q-04

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco UCS VIC 1457 is a quad-port SFP28 modular LAN-on-motherboard (mLOM) converged network adapter for Cisco UCS C-Series M5 rack servers. It carries 10/25-Gbps Ethernet and FCoE on a single unified link, and presents PCIe interfaces to the host that can be configured dynamically as NICs or HBAs. It suits virtualised deployments, big data, HPC and high-bandwidth storage access.

The card provides four 10/25GbE SFP28 ports on a PCIe 3.0 x16 host interface, delivering 128 Gb/s to the host. It supports up to 256 virtual interfaces, with approximately eight reserved for internal use, and is SR-IOV capable in hardware. Maximum power consumption is 27.4 W. Cisco SingleConnect carries LAN, SAN and management traffic over one link, and the VIC is managed through Cisco UCS Manager or Cisco Intersight.

This mLOM card is designed for the Cisco UCS C220 M5, C240 M5 and C240 SD M5 rack servers. It connects upstream to UCS fabric interconnects and a range of Nexus switches, and works with genuine Cisco SFP-10G-SR, SFP-10G-LR, SFP-10G-T-X, SFP-25G-SR-S and SFP-25G-SL optics, as well as Cisco passive copper and active optical cables.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Stateless and agile: NIC/HBA personality, MAC/WWN, QoS and failover policy are set dynamically by the service profile
- Up to 256 dynamic virtual adapters without needing OS or hypervisor SR-IOV support, with SR-IOV capable hardware
- Cisco SingleConnect carries LAN, SAN and management over a single unified link
- Cisco Data Center VM-FEX extends fabric interconnect ports to virtual machines
- Hardware-based fabric failover and NIC teaming for a redundant path to the Fabric Interconnect
- Stateless offloads for GENEVE, VXLAN and NVGRE
- usNIC and DPDK for low-latency kernel bypass
- RoCEv2, NVMe over Fabrics, iSCSI boot, NPIV, VMQ/VMMQ, RSS and NetFlow support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 4 x 10/25-Gbps Ethernet and FCoE SFP28
- Form factor: mLOM
- Host interface: PCIe 3.0 x16 (128 Gb/s to the host)
- Controller: Cisco UCS custom ASIC
- Virtual interfaces: up to 256 (vNICs/vHBAs), approximately eight reserved for internal use
- Speed per port on VIC 1457: 10/25-Gbps
- Maximum power consumption: 27.4 W
- Dimensions (L x W x H): 5.75 in x 3.7 in x 0.63 in
- I/O performance: 900,000+ IOPS
- usNIC latency: as low as 1 microsecond back-to-back
- Jumbo frames: up to 9KB
- Standards: IEEE 802.3x, 802.1q VLAN, 802.1p, 802.1Qaz, 802.1Qbb, prestandard 802.1BR, SCSI-FCP, T11 FCoE
- Supported servers: Cisco UCS C220 M5, C240 M5, C240 SD M5
- Management: Cisco UCS Manager or Cisco Intersight
- Recommended software: UCSM 4.0(4e) or later with VIC firmware 5.0(3d) or later
- Minimum software: UCSM 4.0(1a) with VIC firmware 5.0(1c)
- Operating systems: VMware vSphere, Microsoft Windows, RHEL, SLES, Ubuntu, Citrix XenServer

FAQs

Q: Which servers does the VIC 1457 mLOM fit?
A: It is designed for the Cisco UCS C220 M5, C240 M5 and C240 SD M5 rack servers, installing in the server's mLOM slot.

Q: Does it need a licence?
A: No licence is listed for the card. It is managed through Cisco UCS Manager or Cisco Intersight.

Q: Which optics and cables work with it?
A: Genuine Cisco SFP-10G-SR/-S, SFP-10G-LR/-S, SFP-10G-T-X, SFP-25G-SR-S, SFP-25G-SL, SFP-10/25G-CSR-S and SFP-10/25G-LR-S (25G only), and Meraki MA-SFP-10GB-SR/LR. Cisco passive copper, active optical and QSFP-to-4xSFP25G splitter cables are also supported.

Q: What does it connect to upstream?
A: It connects to UCS fabric interconnects in the 6200, 6300, 6400 and 6536 series, and to a range of Nexus switches. It also supports 4x10G and 4x25G breakout, depending on the upstream device.

Q: How much power does the card draw?
A: Maximum power consumption is 27.4 W, supplied through the host server's mLOM slot.
