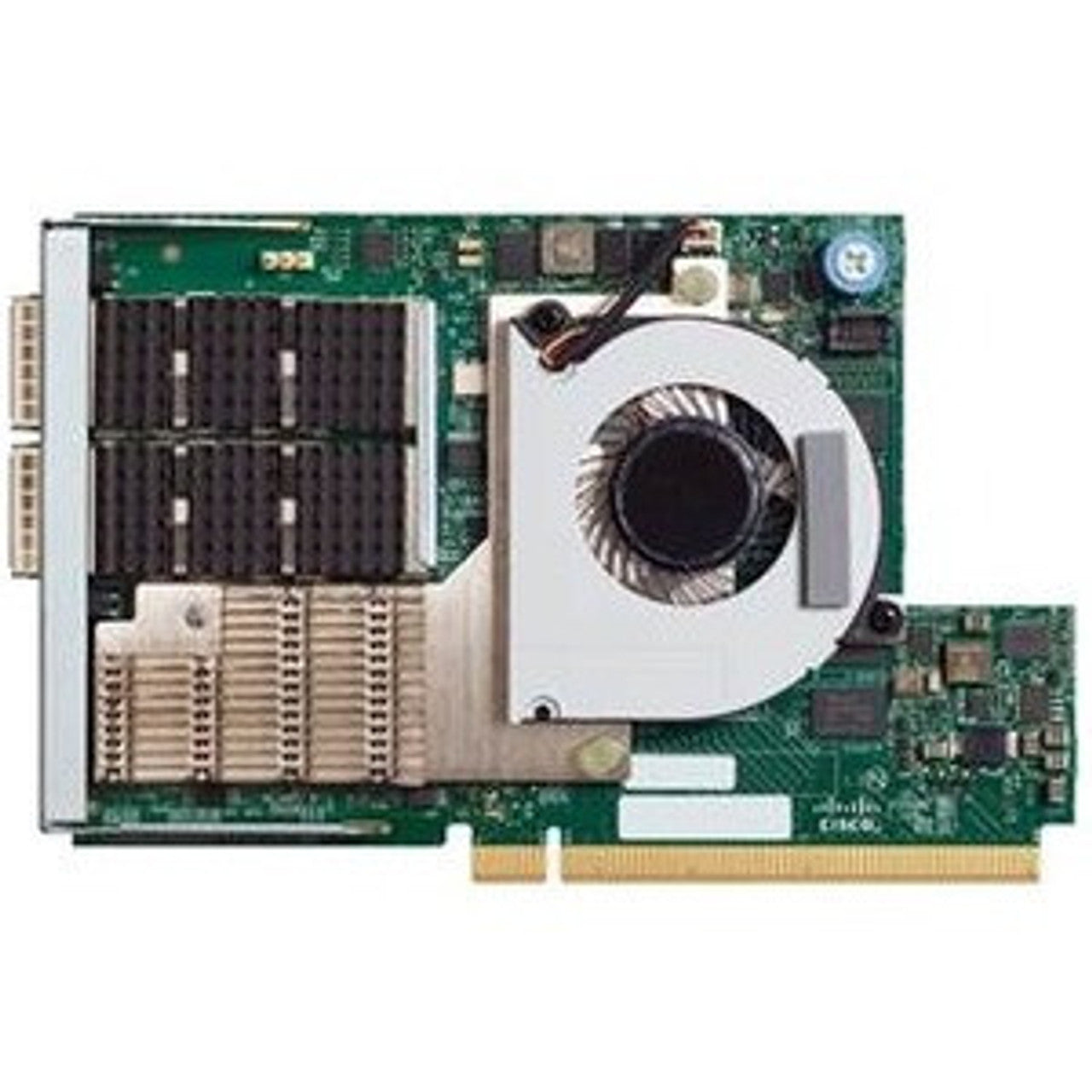

Cisco UCSC-MLOM-C100-04 | UCS VIC 1497 Dual-Port 40/100G QSFP28 mLOM Adapter

SKU:UCSC-MLOM-C100-04

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco UCS Virtual Interface Card (VIC) 1497 is a dual-port 40/100G QSFP28 mLOM network adapter for Cisco UCS C-Series M5 rack servers, specifically the C220 M5, C240 M5 and C240 SD M5. It carries Ethernet and FCoE traffic on one card and suits big data and HPC, large-scale virtual machine deployments, and high-bandwidth storage targets and archives.

The VIC 1497 provides two 40/100-Gbps Ethernet and FCoE QSFP28 ports on a PCIe 3.0 x16 host interface, with per-port performance of 10/25/40/100-Gbps. It presents up to 256 dynamically configurable virtual interfaces (vNICs and vHBAs) to the host, with around eight reserved for internal use. The card draws 28 W maximum, powered from the server's mLOM slot, and uses a custom Cisco UCS ASIC.

It connects to UCS Fabric Interconnects (UCS-FI-6664, 6536, 6332-16UP, 6332) and a range of Nexus 9000 and 3200 series switches. Management is through Cisco UCS Manager, Cisco Intersight or standalone Cisco IMC. The adapter itself has no separate licence listed, and the VIC 1497 does not support reverse breakout of its ports to 4x10G or 4x25G.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Stateless design: personality, MAC/WWN identity, failover policy, bandwidth and QoS are set from the service profile at boot
- 256 dynamic virtual NICs and HBAs, created without needing SR-IOV support from the OS or hypervisor
- SR-IOV capable hardware, with Cisco VM-FEX unifying virtual and physical networking
- Cisco SingleConnect unifies LAN, SAN and management traffic over one link
- usNIC low-latency technology and DPDK kernel bypass
- Stateless offloads for VXLAN, NVGRE and GENEVE, plus VMware NetQueue and Windows VMQ/VMMQ
- iSCSI boot, NPIV, NetFlow, Receive Flow Steering and multi-queue support
- NIC teaming with fabric failover and RoCEv2 support from release 4.1(x)

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 2 x 40/100-Gbps Ethernet and FCoE QSFP28
- Form factor: mLOM
- Host interface: PCIe 3.0 x16
- Performance: 10/25/40/100-Gbps per port
- Virtual interfaces: up to 256 (approximately 8 reserved for internal use)
- ASIC: Cisco UCS custom ASIC
- Maximum power consumption: 28 W
- Dimensions: 5.75 in (L) x 3.7 in (W) x 0.63 in (H)
- Jumbo frames: up to 9KB
- Standards: IEEE 802.3x, 802.1q VLAN, 802.1p, 802.1Qaz, 802.1Qbb, prestandard 802.1BR, SCSI-FCP, T11 FCoE
- Supported servers: UCS C220 M5, C240 M5, C240 SD M5
- Minimum UCSM release: 4.0(2c) with VIC firmware 5.0(2b) or later
- Minimum standalone release: 4.0(2) with VIC firmware 5.0(2b)
- Recommended UCSM release: 4.0(4e) or later
- Breakout: no reverse breakout of 40/100G ports to 4x10G or 4x25G
- Management: Cisco UCS Manager, Cisco Intersight, Cisco IMC (standalone)
- Operating system support: VMware vSphere, Microsoft Windows, Red Hat Enterprise Linux, Citrix XenServer, SUSE Linux Enterprise Server, Ubuntu

FAQs

Q: Which servers is the VIC 1497 mLOM compatible with?
A: It fits the mLOM slot of Cisco UCS C220 M5, C240 M5 and C240 SD M5 rack servers.

Q: Does it need a separate licence?
A: No separate licence or subscription is listed for the adapter itself. Any licensing for Cisco UCS Manager, Intersight or standalone Cisco IMC is separate.

Q: Does it need its own power supply?
A: No. The card draws 28 W maximum and is powered from the host server's mLOM slot.

Q: Which optics and cables work with the QSFP28 ports?
A: At 100G, supported optics include QSFP-100G-SR4-S, QSFP-40/100-SRBD, QSFP-100G-LR4-S and QSFP-100G-FR-S, with QSFP-100G-CU passive copper and QSFP-100G-AOC active optical cables. At 40G, QSFP-40G-SR4, CSR4 and LR4 variants are supported. The ports do not support QSA28 adapters.

Q: Can the 100G ports be broken out into 10G or 25G links?
A: No. The VIC 1497 does not support reverse breakout of its 40/100G ports to 4x10G or 4x25G.
