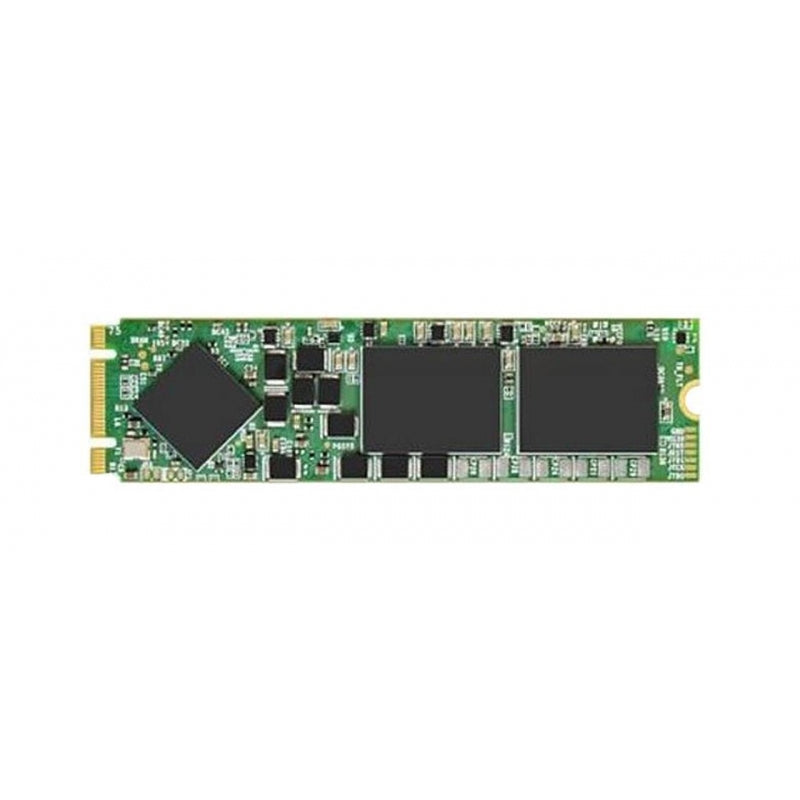

Cisco UCSC-M2I-240M8L | UCS C240 M8L Internal M.2 Boot Module, 2x SATA M.2
SKU:UCSC-M2I-240M8L
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The UCS C240 M8L Internal M.2 module is the internal carrier hardware for the Cisco UCS C240 M8 large form factor (LFF) rack server. It provides a dedicated location for up to two SATA M.2 SSDs, so the operating system or hypervisor can boot from M.2 storage while the front drive bays stay free for data.
The module is the hardware that comes with the UCS-M2-HWRAID2 boot-optimised M.2 RAID controller. Used together, they support RAID 1 mirroring or JBOD, and the controller and drives can be configured and monitored through Cisco IMC. The module is mounted internally and is not hot-swappable, so the server must be powered off to replace the M.2 drives. Boot mode is UEFI only, one boot-optimised RAID controller is supported per system, and M.2 capacities of 240GB, 480GB or 960GB cannot be mixed.
It works with the UCS-M2-240G-D, UCS-M2-480G-D, UCS-M2-960G-D, UCS-M2240OA1V and UCS-M2480OA1V M.2 SATA SSDs. It is specific to the C240 M8 LFF chassis and is not interchangeable with the rear hot-plug M.2 options UCSC-M2RM-M8 and UCSC-M2RR-240M8.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Dedicated internal M.2 boot module for the C240 M8 LFF chassis
- Supports mirrored RAID 1 boot when used with the boot-optimised M.2 RAID controller
- Keeps front drive bays free for data storage
- Managed and monitored through Cisco IMC
- Intended as a boot-only device for the OS or hypervisor
- Powered from the server, no separate power supply required
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Part number: UCSC-M2I-240M8L
- Description: UCS C240 M8L Internal M.2 module
- Spare part number: UCSC-M2I-240M8L=
- Compatible server: Cisco UCS C240 M8 LFF Rack Server
- Associated controller: UCS-M2-HWRAID2 boot-optimised M.2 RAID controller for SATA drives
- M.2 location: Internal
- M.2 drives supported: up to 2 SATA M.2 SSDs
- RAID support: RAID 1 and JBOD via the boot-optimised controller
- Hot-swappable M.2: No, server must be powered off to replace drives
- Boot mode: UEFI only (Legacy boot not supported)
- Maximum boot-optimised RAID controllers per system: 1
- Management: Cisco IMC volume configuration and monitoring
- Supported M.2 SSD capacities: 240GB, 480GB, 960GB (cannot be mixed)
- Supported M.2 SATA SSDs: UCS-M2-240G-D, UCS-M2-480G-D, UCS-M2-960G-D, UCS-M2240OA1V, UCS-M2480OA1V
- Power: drawn from the server, no separate power supply
FAQs
Q: Which servers is this M.2 module compatible with?
A: It is designed for the Cisco UCS C240 M8 LFF (large form factor) rack server. It is not interchangeable with the rear hot-plug M.2 options UCSC-M2RM-M8 and UCSC-M2RR-240M8.
Q: Which M.2 SSDs can I fit?
A: It supports the UCS-M2-240G-D, UCS-M2-480G-D, UCS-M2-960G-D, UCS-M2240OA1V and UCS-M2480OA1V SATA M.2 SSDs, in 240GB, 480GB or 960GB capacities. Capacities cannot be mixed.
Q: Does it support RAID?
A: Yes, when used with the UCS-M2-HWRAID2 boot-optimised M.2 RAID controller it supports RAID 1 and JBOD. Only one boot-optimised RAID controller is supported per system.
Q: Can the M.2 drives be hot-swapped?
A: No. The module is internal and the server must be powered off to replace the M.2 drives.
Q: Does it need a separate power supply?
A: No. It is powered from the server motherboard connector and chassis.
