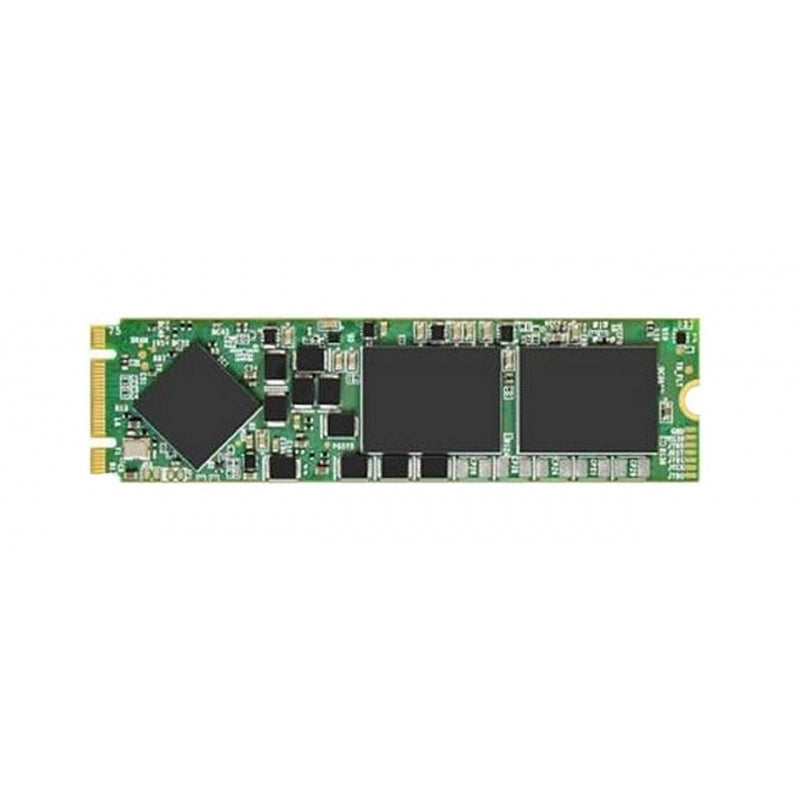

Cisco UCSC-M2I-220M8 | UCS C220 M8 Internal Dual M.2 Boot Module, Non-Hot-Swap
SKU:UCSC-M2I-220M8
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The UCSC-M2I-220M8 is the internal M.2 module for the Cisco UCS C220 M8 rack server. It is the carrier that goes with the UCS-M2-HWRAID2 boot-optimized M.2 RAID controller, giving the server a dedicated pair of M.2 SATA drives for the operating system or hypervisor and keeping the front drive bays free for data storage.
The module is an internal, non-hot-swap design that holds up to two M.2 SATA SSDs through the UCS-M2-HWRAID2 controller. The controller supports RAID 1 mirroring and JBOD, with matching 240GB, 480GB or 960GB M.2 SATA drives and UEFI boot mode only. It draws power from the server motherboard connector, so there is no separate power supply to plan for. Volume configuration and monitoring of the controller and installed M.2 drives is handled through Cisco CIMC.
It is intended for Cisco UCS C220 M8 rack servers. It works with Cisco M.2 SATA SSDs UCS-M2-240G-D, UCS-M2-480G-D and UCS-M2-960G-D, and a maximum of one boot-optimized RAID controller is supported per system. The rear hot-plug alternative is UCSC-M2RM-M8, which uses cable CBL-M2RM-220M8.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Internal M.2 carrier module for UCS C220 M8 boot-optimized M.2 storage
- Pairs with the UCS-M2-HWRAID2 controller for mirrored boot drives
- Supports two matching M.2 SATA SSDs for boot-only use
- RAID 1 and JBOD modes available
- Configurable and monitorable through Cisco CIMC
- Keeps front drive bays free for data storage
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Product ID: UCSC-M2I-220M8
- Description: UCS C220 M8 internal M.2 module
- Compatible server: Cisco UCS C220 M8 rack server
- Associated controller: UCS-M2-HWRAID2 boot-optimized M.2 RAID controller for SATA drives
- Controller type: Internal
- Hot-swappable: No, server must be powered off to replace M.2 drives
- M.2 drives supported: Up to 2 M.2 SATA SSDs
- Supported SSD capacities: 240GB, 480GB, 960GB, matching drives only
- RAID modes: RAID 1 and JBOD
- Boot mode: UEFI only
- Management: Cisco CIMC volume configuration and monitoring
- Maximum boot-optimized RAID controllers per system: 1
- Power: Drawn from the server motherboard connector
FAQs
Q: Which RAID controller does this module work with?
A: It pairs with the UCS-M2-HWRAID2 Cisco boot-optimized M.2 RAID controller for SATA drives. It is the internal carrier for that controller in the UCS C220 M8.
Q: Can the M.2 drives be hot-swapped?
A: No. This is an internal, non-hot-swap module, so the server must be powered off before replacing M.2 drives. The rear hot-plug alternative is UCSC-M2RM-M8, which uses cable CBL-M2RM-220M8.
Q: Which M.2 SSDs can I fit?
A: The controller supports Cisco M.2 SATA SSDs UCS-M2-240G-D, UCS-M2-480G-D and UCS-M2-960G-D in 240GB, 480GB and 960GB capacities. Both drives must match, as mixed capacities are not supported.
Q: Which RAID modes and boot mode are supported?
A: RAID 1 and JBOD are supported through the boot-optimized M.2 RAID controller. Only UEFI boot mode is supported, not legacy boot.
Q: Does it need its own power supply?
A: No. It draws power from the server motherboard connector, so no separate power supply is required.
