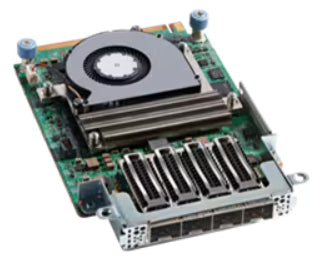

Cisco UCSC-M-V5Q50GV2-D | UCS VIC 15427 4x 10/25/50G mLOM Adapter, Secure Boot
SKU:UCSC-M-V5Q50GV2-D
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The UCS VIC 15427 is a quad-port mLOM virtual interface card from the Cisco UCS Virtual Interface Card 15000 Series, built for Cisco UCS C-Series M7 and M8 rack servers. It consolidates LAN and SAN traffic onto one adapter and suits virtualised data centres that need high-bandwidth, low-latency server connectivity to UCS fabric interconnects or Nexus top-of-rack switches.
It provides four SFP+/SFP28/SFP56 ports running 10, 25 or 50-Gbps Ethernet or FCoE over a PCIe Gen 4 x16 host interface, driven by a Cisco UCS custom ASIC. The card can present up to 512 virtual adapters and interfaces to the host as NICs or HBAs. This is the -D PID for M7/M8 servers, and VIC Secure Boot is available on it, which is what separates the 15427 from the 15428. Maximum power draw is 27.4 W, supplied by the host server's mLOM slot.
It works with C220 and C240 M6/M7/M8, C225 and C245 servers, and with UCS FI 6300, 6400 and 6500 series fabric interconnects, plus selected Nexus switches. It requires UCSM or IMM release 4.3(2c) or later. Supported optics and cables include SFP-10G-SR, SFP-10G-LR, SFP-25G-SR-S, SFP-10/25G-CSR-S, SFP-10/25G-LR-S, SFP-10G-T-X and SFP-50G-CU cables.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- VIC Secure Boot checks the integrity of the VIC hardware and firmware at server boot
- Cisco SingleConnect carries LAN, SAN and management traffic on one unified network
- Up to 512 PCIe virtual interfaces (NICs/HBAs) configured on demand without OS SR-IOV
- usNIC low-latency technology, about 1 microsecond back-to-back
- Hardware-based fabric failover for a redundant path to the fabric interconnect
- Priority Flow Control for lossless Ethernet
- Managed through Cisco Intersight (IMM), UCS Manager or standalone Cisco IMC
- Offloads and protocols including VXLAN, GENEVE, NVGRE, DPDK, NetFlow, iSCSI boot, RoCEv2, NVMe-TCP and SMB Direct
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 4 x SFP+/SFP28/SFP56
- Port speeds: 10/25/50-Gbps Ethernet or FCoE
- Form factor: mLOM
- Host interface: PCIe Gen 4 x16
- ASIC: Cisco UCS custom ASIC
- Virtual interfaces: up to 512 virtual adapters and interfaces (NICs/HBAs)
- Secure boot: VIC Secure Boot
- Latency: usNIC latency as low as 1 microsecond in back-to-back VIC connections
- I/O performance: over 900,000 IOPS
- Maximum power consumption: 27.4 W
- Dimensions (L x W x H): 6.60 in x 2.5 in x 0.53 in (about 167.6 x 63.5 x 13.5 mm)
- Jumbo frames: up to 9KB
- Standards: IEEE 802.3x, 802.1Q VLAN, 802.1p, 802.1Qaz, 802.1Qbb, 802.3by, 802.3cd, T11 FCoE, SCSI-FCP
- Minimum management software: UCSM/IMM 4.3(2c)
- Supported servers: C220 M6/M7/M8, C240 M6/M7/M8, C225 M6/M8, C245 M6/M8
- Supported fabric interconnects: FI 6652, 6664, 6536, 6454, 64108, 6332, 6332-16UP
- Operating systems: VMware vSphere, Microsoft Windows Server, RHEL, SLES, Ubuntu, Citrix XenServer
FAQs
Q: Does this adapter need a separate licence?
A: No separate licence is stated for the adapter itself. It is managed through Cisco UCS Manager, IMC or Intersight.
Q: How is the adapter powered?
A: It draws power from the host server's mLOM slot, with a maximum consumption of 27.4 W, and needs no separate power supply.
Q: Which servers does this -D PID suit?
A: It is the M7/M8 PID for Cisco UCS C-Series rack servers, including C220 and C240 M6/M7/M8 and C225/C245 models. UCSM or IMM release 4.3(2c) or later is required.
Q: Which optics and cables work with it?
A: Supported parts include SFP-10G-SR, SFP-10G-LR, SFP-25G-SR-S, SFP-10/25G-CSR-S, SFP-10/25G-LR-S, SFP-10G-T-X and SFP-50G-CU cables.
Q: How does it differ from the VIC 15428?
A: The 15427 supports VIC Secure Boot, which verifies the card's hardware and firmware integrity at boot. The 15428 does not.
Q: Can it run at 10G with every fabric interconnect?
A: No. 10G connectivity is supported with UCS FI 6300 and 6400 series and standalone switches, but the UCS-FI-6536 does not support 10G to this card.
