Cisco UCSC-M-V5Q50GV2 | UCS VIC 15427 Quad-Port 10/25/50G mLOM Adapter, Secure Boot

SKU:UCSC-M-V5Q50GV2

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

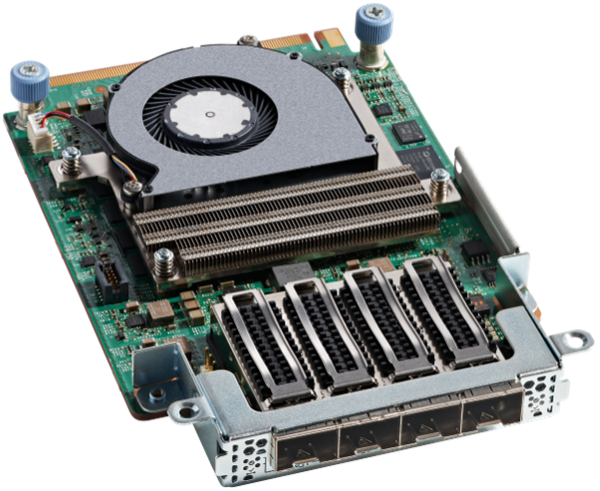

The UCS VIC 15427 is a quad-port mLOM virtual interface card from the Cisco UCS VIC 15000 Series, built for Cisco UCS C-Series M6 rack servers. It provides high-bandwidth, low-latency unified LAN and SAN connectivity for virtualised, cloud and bare-metal workloads. It suits standalone servers behind Nexus top-of-rack switches as well as servers managed through fabric interconnects, particularly where hardware and firmware integrity matters.

The adapter has four SFP+/SFP28/SFP56 ports, each running at 10, 25 or 50 Gbps for Ethernet or FCoE traffic. It uses a PCIe 4.0 x16 host interface and a Cisco UCS custom ASIC, delivering over 900,000 IOPS with latency of roughly 1 to 2 microseconds on Cisco Nexus switches. Maximum power draw is 27.4 W, supplied by the host server mLOM slot. VIC Secure Boot, available from UCSM/IMM release 4.3(2c), verifies the VIC hardware and firmware at boot. This is the non '-D' PID intended for M6 servers.

It fits the mLOM slot on Cisco UCS C220 M6, C240 M6, C225 M6 and C245 M6 rack servers. It connects to Cisco UCS fabric interconnects such as the FI 6664, 6652, 6536, 64108, 6454 and 6332, and to Nexus switches including the N93180YC-FX3 in FEX mode and the N2348UPQ. Note that 10G operation is not supported with the FI 6536.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco SingleConnect carries LAN, SAN and management traffic over one unified network to each server
- VIC Secure Boot verifies the integrity of the VIC hardware and firmware at server boot
- Presents PCIe standards-compliant interfaces to the host, dynamically configurable as NICs or HBAs
- Centralised configuration and management through Cisco Intersight, UCS Manager or Cisco IMC
- Hardware-based fabric failover with a redundant path to the fabric interconnect
- Advanced offloads including usNIC, DPDK, NetFlow, NPIV, VXLAN/NVGRE/GENEVE, Multi-RQ and RSS
- RDMA and storage support including RoCEv2, NVMe-TCP, FC-NVMe, iSCSI boot and SR-IOV
- Priority Flow Control for lossless Ethernet within the UCS Unified Fabric

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: mLOM (modular LAN on motherboard)
- Ports: 4 x SFP+/SFP28/SFP56
- Port speeds: 10/25/50 Gbps per port, Ethernet or FCoE
- Host interface: PCIe 4.0 x16
- ASIC: Cisco UCS custom Application-Specific Integrated Circuit
- I/O performance: over 900,000 IOPS
- Latency: approximately 1 to 2 microseconds with Cisco Nexus series switches
- Jumbo frames: up to 9KB
- Maximum power consumption: 27.4 W
- Dimensions (L x W x H): 6.60 x 2.5 x 0.53 in
- Secure boot: VIC Secure Boot, requires UCSM/IMM release 4.3(2c) or later
- Minimum management software: UCSM/IMM release 4.3(2c)
- Lossless Ethernet: Priority Flow Control (PFC)
- Standards: IEEE 802.3x, 802.1Q VLAN, 802.1p, 802.1Qaz, 802.1Qbb, 802.3by, 802.3cd, prestandard 802.1BR, T11 FCoE, SCSI-FCP
- Supported servers: C220 M6, C240 M6, C225 M6, C245 M6
- Supported fabric interconnects: FI 6652/6664, FI 6536, FI 6454/64108, FI 6332/6332-16UP

FAQs

Q: Does the UCS VIC 15427 need a separate licence?
A: No separate licence is stated for the adapter itself. It is managed through Cisco UCS Manager, Intersight or IMC, and Intersight features depend on the Intersight licence tier you use.

Q: Which servers is this PID for?
A: This PID, without the '-D' suffix, is the variant for Cisco UCS C-Series M6 rack servers such as the C220 M6, C240 M6, C225 M6 and C245 M6. The UCSC-M-V5Q50GV2D PID applies to M7 and M8 servers, and the two behave identically.

Q: What software release is required for Secure Boot?
A: VIC Secure Boot on the VIC 15427 requires UCSM/IMM release 4.3(2c) or later, which is also the minimum management release for this adapter.

Q: What does it connect to?
A: It connects to Cisco UCS fabric interconnects (FI 6664, 6652, 6536, 64108, 6454, 6332 and 6332-16UP) and to Nexus switches such as the N93180YC-FX3 in FEX mode and the N2348UPQ, using SFP+, SFP28 or SFP56 optics and cables. 10G operation is not supported with the FI 6536.

Q: How is the adapter powered?
A: It is bus-powered from the host server mLOM slot. Maximum power consumption is 27.4 W.
