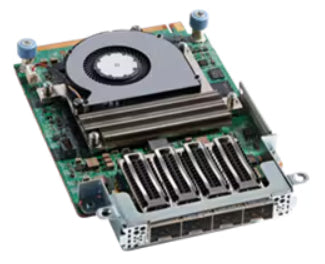

Cisco UCSC-M-V5Q50G | UCS VIC 15428 Quad-Port 10/25/50G mLOM, M6 Servers

SKU:UCSC-M-V5Q50G

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco UCS Virtual Interface Card 15428 is a quad-port mLOM network adapter from the UCS VIC 15000 Series, built for Cisco UCS C-Series M6 rack servers. It suits virtualised data centres, large-scale VM deployments, big data and HPC workloads, and high-bandwidth storage including NVMe over Fabrics.

The card provides four SFP+/SFP28/SFP56 ports running at 10, 25 or 50 Gbps each, connected to the host over PCIe 4.0 x16. It supports Ethernet and FCoE, and can present up to 512 dynamically configurable PCIe virtual devices (vNICs or vHBAs) to the host. Hardware offloads cover SR-IOV, VXLAN, NVGRE and GENEVE, with usNIC and DPDK available for low-latency workloads. Maximum power draw is 27.4 W, supplied through the server's mLOM slot. This is the non-secure-boot model. No licence is needed on the card itself.

It is designed for Cisco UCS C220 M6, C240 M6, C225 M6 and C245 M6 rack servers, and connects to UCS fabric interconnects (FI-6536, 6454, 64108, 6332) as well as supported Nexus top-of-rack switches and FEX. Supported optics include SFP-10G-SR/LR, SFP-25G-SR-S and SFP-50G-SR-S.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Stateless design: NIC/HBA personality, MAC/WWN, QoS and failover are defined by the service profile
- Cisco SingleConnect carries LAN, SAN and management traffic over a single unified link
- Hardware-based fabric failover provides a redundant path to the fabric interconnect
- Lossless Ethernet using Priority Flow Control (PFC)
- 512 virtual interfaces without needing SR-IOV support from the OS or hypervisor, with SR-IOV capable hardware
- Hardware offloads for VXLAN, NVGRE and GENEVE, plus usNIC and DPDK for low latency
- Centralised management through Cisco Intersight, UCS Manager or Cisco IMC
- Supports VMware vSphere, Windows Server, RHEL, SLES, Ubuntu and Citrix XenServer

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Part number: UCSC-M-V5Q50G
- Product type: Virtual Interface Card, mLOM network adapter
- Ports: 4 x SFP+/SFP28/SFP56
- Speed per port: 10/25/50 Gbps
- Host interface: PCIe 4.0 x16, mLOM form factor
- Protocols: Ethernet and FCoE
- Virtual interfaces: up to 512 PCIe virtual devices (vNICs/vHBAs)
- I/O performance: over 900,000 IOPS
- Jumbo frames: up to 9 KB
- ASIC: Cisco UCS custom ASIC
- Storage protocols: FCoE, iSCSI/iSCSI boot, NPIV, NVMe over RoCEv2, NVMe/TCP, FC-NVMe
- Virtualisation offloads: SR-IOV, VMware NetQueue, Windows VMQ/VMMQ, VXLAN, NVGRE, GENEVE
- Low latency: usNIC as low as 1 microsecond back-to-back, DPDK kernel bypass
- Power consumption: 27.4 W maximum
- Dimensions (L x W x H): 6.60 in x 2.5 in x 0.53 in (approx. 168 x 64 x 13 mm)
- Compatible servers: UCS C220 M6, C240 M6, C225 M6, C245 M6
- Management: Cisco UCS Manager, Intersight (IMM) or standalone Cisco IMC, release 4.2(2) or later recommended

FAQs

Q: Does this card need a licence?
A: No licence is required on the card itself. It is provisioned through Cisco UCS Manager, Intersight (IMM) or standalone Cisco IMC, and Intersight functionality may require its own subscription tier.

Q: Which servers is it compatible with?
A: It is designed for Cisco UCS C220 M6, C240 M6, C225 M6 and C245 M6 rack servers. It is not intended for M7 servers, which use a different SKU.

Q: Which optics and cables can I use with it?
A: Supported SFP+ optics include SFP-10G-SR, SFP-10G-LR and SFP-10G-T-X. SFP28 options include SFP-25G-SR-S, SFP-10/25G-CSR-S, SFP-10/25G-LR-S and SFP-25G-SL. SFP56 options include SFP-50G-SR-S and SFP-50G-SL. Cisco-supported DAC and AOC cables also work.

Q: Which fabric interconnects and switches can it connect to?
A: It connects to UCS FI-6536, 6454, 64108 and 6332 fabric interconnects, Nexus 93180YC-FX3 in FEX mode, Nexus 2348UPQ FEX, and standalone Nexus 9000 top-of-rack switches. The UCS-FI-6536 does not support 10G operation with this card.

Q: How does this differ from the VIC 15427?
A: The VIC 15428 is the non-secure-boot model, and the VIC 15427 (UCSC-M-V5Q50GV2) is its secure-boot replacement. Both are quad-port 10/25/50G mLOM cards for M6 rack servers with the same 27.4 W maximum power draw.
