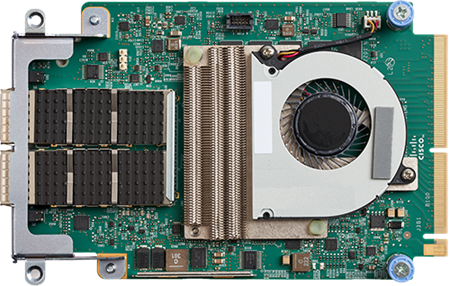

Cisco UCSC-M-V5D200GV2D | UCS VIC 15237 2x 40/100/200G mLOM Network Adapter, Secure Boot
SKU:UCSC-M-V5D200GV2D
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Cisco UCS VIC 15237 is a dual-port QSFP56 mLOM virtual interface card from the UCS Virtual Interface Card 15000 Series, built for Cisco UCS C-Series M7 and M8 rack servers. It carries 40, 100 or 200-Gbps Ethernet and FCoE over a PCIe 4.0 x16 host interface, and adds VIC Secure Boot to verify the integrity of the card hardware and firmware at server boot. It suits virtualised and bare-metal workloads that need high-bandwidth converged LAN and SAN connectivity, including NVMe over RoCEv2 storage and low-latency applications.
The card provides 2 x 40/100/200GbE ports on a Cisco UCS custom ASIC, with up to 512 virtual adapters and interfaces, jumbo frames up to 9KB, SR-IOV capable hardware and usNIC latency as low as 1 microsecond in back-to-back VIC connections. Maximum power consumption is 34.4 W, drawn from the host server through the mLOM slot. On the 200G configuration, both ports must run at 100G or 200G, or one port can run at 40G with the other at any of the three speeds. This -D ordering PID is the M7/M8 version of the card. Management is through Cisco UCS Manager, Intersight or Cisco IMC, with a minimum release of 4.3(2c).
It installs in C220 M7, C240 M7, C225 M8 and C245 M8 servers, with the datasheet also listing M6 models. It connects to UCS FI-6664, FI-6536, FI-6332 and FI-6332-16UP Fabric Interconnects and to validated Cisco Nexus switches such as the N3232C, N9236C, N9332C and N9336C-FX2, using QSFP, QSFP28 or QSFP56 transceivers and cables.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Cisco SingleConnect unified I/O carries LAN, SAN and management traffic over one adapter and fabric
- Virtual interfaces can be dynamically configured as NICs or HBAs
- VIC Secure Boot verifies the integrity of VIC hardware and firmware at server boot
- Hardware-based fabric failover and lossless Ethernet via Priority Flow Control
- RoCEv2 with NVMe over RoCEv2 (RHEL, ESXi) and SMB Direct (Windows Server 2019/2022)
- NVMe-TCP qualified with ESXi and RHEL, and FC-NVMe on RHEL, SLES and ESXi
- VXLAN, NVGRE and GENEVE offloads, DPDK, NetFlow, QinQ, iSCSI boot and NPIV
- Centrally managed via Cisco Intersight, UCS Manager or Cisco IMC
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Model: Cisco UCS VIC 15237 (M7/M8 ordering PID)
- Ports: 2 x 40/100/200GbE QSFP/QSFP28/QSFP56
- Form factor: mLOM for UCS C-Series rack servers
- Host interface: PCIe 4.0 x16
- Protocols: Ethernet and FCoE
- Port speeds: 40/100/200-Gbps per port on VIC 15237
- Virtual adapters and interfaces: 512
- Jumbo frames: up to 9KB
- I/O performance: over 900,000 IOPS
- Latency: usNIC as low as 1 microsecond in back-to-back VIC connections
- ASIC: Cisco UCS custom ASIC
- Secure Boot: VIC Secure Boot
- SR-IOV: capable hardware
- Minimum management release: UCSM/IMM 4.3(2c)
- Power consumption (max): 34.4 W
- Dimensions (L x W x H): 6.28 x 3.94 x 0.74 in
- Supported servers: C220 M6/M7, C240 M6/M7, C225 M6/M8, C245 M6/M8
- Supported upstream: FI-6664, FI-6536, FI-6332-16UP, FI-6332 and validated Nexus switches
FAQs
Q: Which servers does the UCSC-M-V5D200GV2D install in?
A: It is the M7/M8 ordering PID for Cisco UCS C-Series rack servers. Supported servers include the C220 M7, C240 M7, C225 M8 and C245 M8, and the datasheet also lists C220 M6, C240 M6, C225 M6 and C245 M6.
Q: Does it need a licence?
A: No licence is listed for the adapter itself. It is managed through Cisco UCS Manager, Intersight Managed Mode or Cisco IMC, and Intersight licence tiers may apply to the management platform.
Q: What speeds can the two ports run at?
A: Each port supports 40, 100 or 200GbE. If both ports are set to 100G or 200G that is valid, and if one port runs at 40G the other can be any of the three speeds.
Q: What can it connect to upstream?
A: It connects to UCS FI-6664, FI-6536, FI-6332 and FI-6332-16UP Fabric Interconnects and to validated Cisco Nexus switches including the N3232C, N9236C, N9332C and N9336C-FX2. It uses QSFP, QSFP28 or QSFP56 transceivers and cables.
Q: How does it differ from the non-D PID?
A: The -D suffix is the ordering PID for M7/M8 servers. The datasheet states the -D PID and the non-D (M6) PID are functionally identical.
Q: How much power does it draw?
A: Maximum power consumption is 34.4 W, powered from the host server through the mLOM slot.
