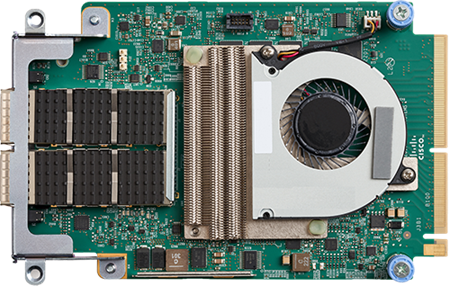

Cisco UCSC-M-V5D200G-D | UCS VIC 15238 2x 40/100/200G QSFP mLOM, C220/C240 M7
SKU:UCSC-M-V5D200G-D
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Cisco UCS VIC 15238 is a dual-port QSFP mLOM Virtual Interface Card from the UCS VIC 15000 Series, built for Cisco UCS C-Series rack servers. The -D ordering PID is the variant for C220 M7 and C240 M7 servers. It suits big data and HPC, large-scale virtual machine deployments, high-bandwidth storage targets and NVMe over Fabrics workloads.
Two QSFP/QSFP28/QSFP56 ports carry 40/100/200Gb Ethernet or FCoE over a PCIe 4.0 x16 host interface. The adapter presents up to 512 PCIe virtual devices (vNICs or vHBAs) to the host, configurable on demand. It supports stateless VXLAN, NVGRE and GENEVE offloads, usNIC and DPDK for low-latency kernel bypass, and SR-IOV, NetQueue and VMQ/VMMQ for virtualised environments. Maximum power draw is 34.4 W from the server mLOM slot. This is the non-Secure-Boot 15238.
It connects to Cisco UCS FI-6664, FI-6536, FI-6332-16UP and FI-6332 fabric interconnects, as well as selected Nexus 3000 and 9000 series switches. Supported optics include QSFP-40G-SR4, QSFP-40G-CSR4, QSFP-40G-LR4, QSFP-100G-SR4-S, QSFP-100G-PSM4-S, QSFP-200G-SR4-S and QSFP-200G-SL4, plus Cisco passive and active optical cables.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Dual-port 40/100/200Gb unified I/O Ethernet and FCoE in a single mLOM
- PCIe Gen4 x16 interface for up to 200Gb/s throughput
- 512 virtual adapters (NICs and HBAs) configurable on demand
- Cisco SingleConnect technology unifies LAN, SAN and management on one link
- Low-latency connectivity with usNIC and DPDK kernel bypass
- Stateless offloads for VXLAN, NVGRE and GENEVE
- Supports NVMe over Fabrics (NVMe/RoCEv2, NVMe/FC, NVMe/TCP)
- NIC teaming with fabric failover and policy-based provisioning via Intersight, UCSM or IMC
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Model: Cisco UCS VIC 15238 (PID UCSC-M-V5D200G-D)
- Ports: 2 x QSFP/QSFP28/QSFP56
- Port speeds: 40/100/200 Gbps Ethernet or FCoE
- Form factor: mLOM
- Host interface: PCIe 4.0 x16
- Virtual devices: up to 512 PCIe vNICs or vHBAs
- Jumbo frames: up to 9 KB
- Maximum power consumption: 34.4 W
- Dimensions (L x W x H): 6.28 x 3.94 x 0.74 in
- Offloads: stateless VXLAN, NVGRE and GENEVE; usNIC and DPDK; SR-IOV, NetQueue, VMQ/VMMQ
- Latency: usNIC latency as low as 1 microsecond in back-to-back VIC connections
- Management: Cisco Intersight (IMM), UCS Manager (UCSM) or Cisco IMC
- Recommended minimum software: UCSM/IMM 4.2(3) or later, standalone CIMC 4.2(3)
- Supported servers: UCS C220 M7 and C240 M7 (-D PID)
- Fabric connectivity: Cisco FI-6664, FI-6536, FI-6332-16UP, FI-6332 and selected Nexus 3000/9000 switches
FAQs
Q: Which servers is the -D version for?
A: The -D ordering PID is for Cisco UCS C220 M7 and C240 M7 rack servers. The non-D UCSC-M-V5D200G covers M6 servers. It is not supported on M8 servers.
Q: Does the adapter need a licence?
A: No licence is listed for the adapter itself. Policy-based management runs through Cisco Intersight, UCS Manager or Cisco IMC, and Intersight feature tiers are licensed separately.
Q: Which optics and cables work with the VIC 15238?
A: Supported QSFP optics include QSFP-40G-SR4, QSFP-40G-CSR4, QSFP-40G-LR4, QSFP-100G-SR4-S, QSFP-100G-PSM4-S, QSFP-200G-SR4-S and QSFP-200G-SL4, plus Cisco passive and active optical cables.
Q: What does it connect to upstream?
A: It connects to Cisco UCS FI-6664, FI-6536, FI-6332-16UP and FI-6332 fabric interconnects, or to selected Cisco Nexus 3000 and 9000 series top-of-rack switches.
Q: How is it powered?
A: It draws power from the server mLOM slot, with a maximum consumption of 34.4 W.
Q: How does the 15238 differ from the VIC 15237?
A: The 15238 is the non-Secure-Boot model. The VIC 15237 is the functionally equivalent replacement with Secure Boot support.
