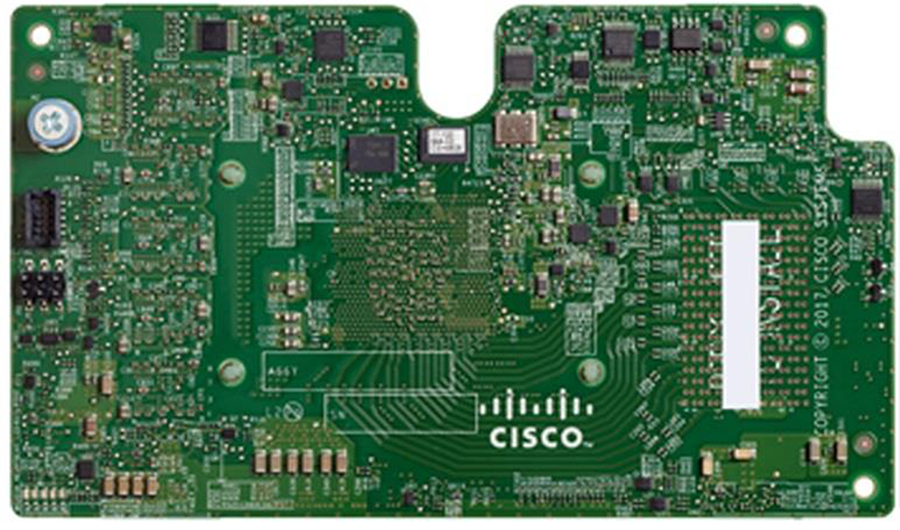

Cisco UCSC-M-V25-04ST | UCS VIC 1467 Quad-Port 10/25G SFP28 mLOM Adapter
SKU:UCSC-M-V25-04ST
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Cisco UCS VIC 1467 is a quad-port SFP28 mLOM network adapter from the UCS Virtual Interface Card 1400 series, built for UCS C-Series M6 rack servers. It carries 10/25-Gbps Ethernet and FCoE and presents PCIe-compliant interfaces to the host that can be configured on demand as NICs or HBAs. It suits converged LAN and SAN connectivity in UCS-managed or standalone Cisco IMC deployments, including virtualisation and NVMe-oF workloads.
The card provides four 10/25-Gbps SFP28 ports on a PCIe 3.0 x16 mLOM form factor, with 256 virtual interfaces (about eight reserved for internal use) and more than 900,000 IOPS. Maximum power consumption is 25.5 W, drawn from the server mLOM slot. This SKU is the quad-port 10/25G SFP28 mLOM variant for C-Series M6 servers.
It is supported in the UCS C220 M6, C240 M6, C225 M6 and C245 M6. Genuine Cisco SFP-10G-SR, SFP-10G-LR, SFP-25G-SR-S and SFP-10/25G-CSR-S optics are supported, along with Cisco passive copper and AOC cables such as SFP-H25G-CU and SFP-25G-AOC. It connects to UCS fabric interconnects including the 6454, 64108, 6536 and 6332 series, as well as supported Nexus switches.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Cisco SingleConnect unifies LAN, SAN and systems management over a single link
- Centrally managed and configured through Cisco UCS Manager or Intersight
- Hardware-based fabric failover for a redundant path to the Fabric Interconnect
- Lossless Ethernet using Priority Flow Control (PFC)
- SR-IOV, usNIC, iSCSI boot, DPDK, NetFlow, NPIV, VMware NetQueue, Windows VMQ/VMMQ and RSS
- GENEVE with VMware NSX-T, plus VXLAN and NVGRE offload
- RoCEv2 support (Windows Server 2019 NDKPI and Linux) and NVMe over Fabrics
- Number and type of I/O interfaces configurable on demand (zero-touch)
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Model: Cisco UCS VIC 1467 quad-port 10/25G mLOM
- Ports: 4 x 10/25-Gbps Ethernet and FCoE SFP28
- Form factor: mLOM, PCIe 3.0 x16
- Speed per port: 10/25-Gbps
- Virtual interfaces: 256 (approximately eight reserved for internal use)
- I/O performance: 900,000+ IOPS
- Maximum power consumption: 25.5 W
- Dimensions (L x W x H): 6.26 x 3.99 x 0.74 in (approx. 159 x 101 x 19 mm)
- ASIC: Cisco UCS custom application-specific integrated circuit
- Standards: IEEE 802.3x, 802.1q VLAN, 802.1p, 802.1Qaz, 802.1Qbb, prestandard IEEE 802.1BR, jumbo frames up to 9KB, SCSI-FCP, T11 FCoE
- Minimum management software: UCSM Release 4.2(1) or standalone Cisco IMC Release 4.2(1)
- Supported servers: UCS C220 M6, C240 M6, C225 M6, C245 M6
- Breakout: 4x10G/4x25G to upstream ToR switch with IMC; 4x10G with 6300 FI, 4x10G/25G with 6400 FI, 4x25G with 6536 FI
- Supported operating systems: VMware vSphere, Microsoft Windows, RHEL, Citrix XenServer, SUSE Linux Enterprise Server, Ubuntu
- Storage protocols: FCoE, NVMe over Fabrics with RoCEv2, FC-NVMe
FAQs
Q: Does this adapter need a licence?
A: No licence is listed for the adapter itself. It is managed centrally through Cisco UCS Manager or Cisco Intersight, or through standalone Cisco IMC.
Q: Which servers is it compatible with?
A: It is designed for the UCS C220 M6, C240 M6, C225 M6 and C245 M6 rack servers, installing in the server mLOM slot.
Q: Which optics and cables work with it?
A: Genuine Cisco SFP-10G-SR, SFP-10G-LR, SFP-10G-T-X, SFP-25G-SR-S, SFP-25G-SL and SFP-10/25G-CSR-S optics are supported, along with Cisco passive copper and AOC cables such as SFP-H25G-CU and SFP-25G-AOC.
Q: Which fabric interconnects can it connect to?
A: It works with UCS FI-6454, 64108, 6536 (25G only), 6332 and 6332-16UP, among others. The UCS-FI-6248 and UCS-FI-6296 are not supported.
Q: How much power does it draw?
A: Maximum power consumption is 25.5 W, drawn from the server mLOM slot.
