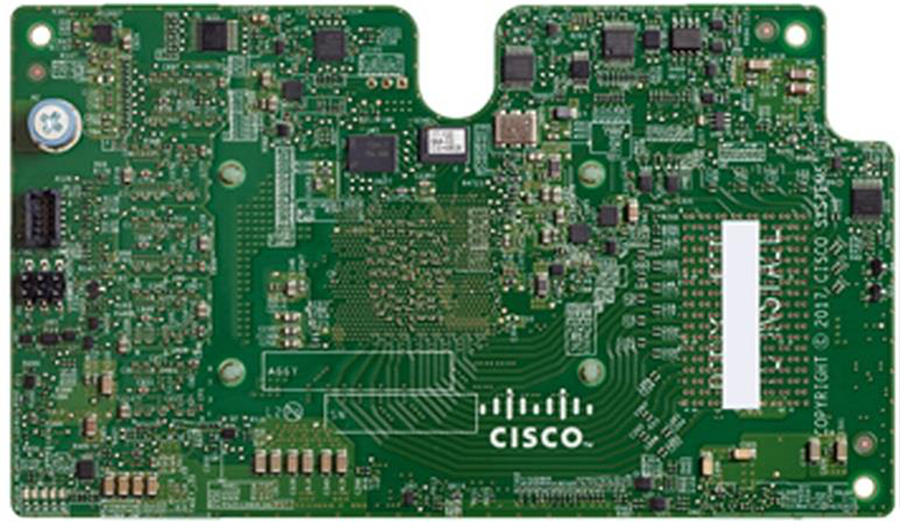

Cisco UCSC-M-V100-04ST | UCS VIC 1477 Dual-Port 40/100G QSFP28 mLOM NIC
SKU:UCSC-M-V100-04ST
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Cisco UCS VIC 1477 is a dual-port QSFP28 mLOM virtual interface card from the UCS Virtual Interface Card 1400 family, built for Cisco UCS C220 M6, C240 M6, C225 M6 and C245 M6 rack servers. It suits high-bandwidth, virtualised server I/O in UCSM-managed, Intersight Managed Mode or standalone Cisco IMC deployments.
The card provides two QSFP28 ports carrying 40/100-Gbps Ethernet or FCoE, with 10/25/40/100-Gbps performance per port. It uses a PCIe 3.0 x16 mLOM form factor and a Cisco UCS custom ASIC, and presents up to 256 virtual interfaces to the host (around eight are reserved for internal use). The interfaces are standards-compliant PCIe devices that can be dynamically configured as NICs or HBAs. Maximum power consumption is 27.9 W. Supported features include SR-IOV, usNIC, iSCSI boot, DPDK, NetFlow, NPIV and RoCEv2.
It connects to Cisco UCS Fabric Interconnects such as the FI-6664, FI-6536, FI-6332-16UP and FI-6332, as well as selected Nexus 3000 and 9000 series switches. It requires UCSM 4.2(1) or standalone Cisco IMC 4.2(1) or later.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Stateless design: the card personality is set dynamically at boot using service profiles
- Hardware-based fabric failover provides a redundant path to the Fabric Interconnect
- PCIe standards-compliant interfaces dynamically configurable as NICs or HBAs
- 40/100-Gbps Ethernet and FCoE on a single adapter
- SR-IOV, usNIC, iSCSI boot, DPDK, NetFlow and NPIV support
- RoCEv2 and NVMeoF with RDMA (RoCEv2) support in UCSM 4.1
- Priority Flow Control for lossless Ethernet within Cisco Unified Fabric
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 2 x 40/100-Gbps Ethernet and FCoE QSFP28
- Form factor: mLOM, PCIe 3.0 x16
- Performance: 10/25/40/100-Gbps per port
- Virtual interfaces: 256 (approximately eight reserved for internal use)
- ASIC: Cisco UCS custom ASIC
- Maximum power consumption: 27.9 W
- Dimensions (L x W x H): 160 x 101 x 19 mm (6.29 x 3.99 x 0.74 in)
- Supported servers: Cisco UCS C220 M6, C240 M6, C225 M6, C245 M6
- Standards: IEEE 802.3x, 802.1q VLAN, 802.1p, 802.1Qaz, 802.1Qbb, prestandard 802.1BR, T11 FCoE, SCSI-FCP
- Jumbo frames: up to 9KB
- I/O performance: 900,000+ IOPS
- Lossless Ethernet: Priority Flow Control (PFC)
- Minimum software: UCSM 4.2(1) or standalone Cisco IMC 4.2(1)
- Supported Fabric Interconnects: UCS-FI-6664, UCS-FI-6536, UCS-FI-6332-16UP, UCS-FI-6332
- Qualified 40G transceivers with FI 6536: QSFP-40G-SR4, SR4-S, CSR4, LR4, LR4-S
- Breakout: no 4x10G/4x25G breakout of the 40/100G ports
- QSA28 adapters: not supported
FAQs
Q: Does this adapter need a licence or subscription?
A: No. The adapter itself has no licence or subscription requirement.
Q: Which servers is it compatible with?
A: It is supported on Cisco UCS C220 M6, C240 M6, C225 M6 and C245 M6 rack servers, using the mLOM slot.
Q: What does it connect to?
A: It connects to Cisco UCS Fabric Interconnects (FI-6664, FI-6536, FI-6332-16UP, FI-6332) and selected Nexus switches including the 3232C, 92300YC, 9236C, 93180LC-EX, 93240YC-FX2, 9332C, 9336C-FX2, 93360YC-FX2 and 9364C.
Q: Which management software version is required?
A: It requires UCSM Release 4.2(1) or standalone Cisco IMC Release 4.2(1) or later.
Q: Which 40G optics can be used with a Fabric Interconnect 6536?
A: The qualified 40G transceivers with the FI 6536 are QSFP-40G-SR4, QSFP-40G-SR4-S, QSFP-40G-CSR4, QSFP-40G-LR4 and QSFP-40G-LR4-S. QSA28 adapters and 4x10G/4x25G breakout are not supported.
Q: How much power does the card draw?
A: It draws power from the host server's mLOM slot, with a maximum consumption of 27.9 W.
