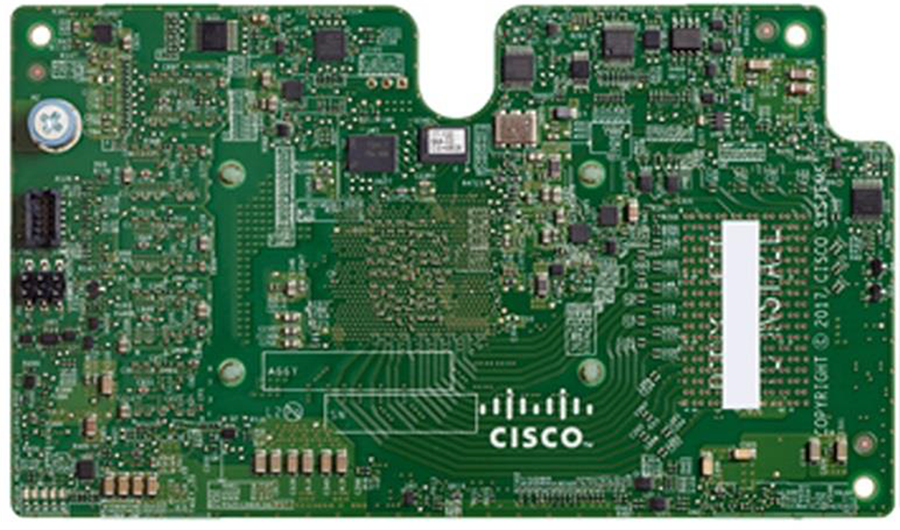

Cisco UCSC-M-V100-04 | UCS VIC 1477 Dual-Port 40/100G QSFP28 mLOM NIC, M6

SKU:UCSC-M-V100-04

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco UCS VIC 1477 is a dual-port QSFP28 mLOM network adapter for UCS C-Series M6 rack servers, specifically the C220 M6, C240 M6, C225 M6 and C245 M6. It suits big data and HPC, large-scale virtual machine deployments and high-bandwidth storage targets, where unified LAN and SAN I/O is carried over a single connection to a Fabric Interconnect or Nexus 9000 switch.

The card provides two 40/100-Gbps Ethernet and FCoE ports, with 10/25/40/100-Gbps per-port performance, on a PCIe 3.0 x16 interface. It presents up to 256 virtual interfaces to the host, which can be configured dynamically as NICs or HBAs through the service profile. It is built around a Cisco UCS custom ASIC and has a maximum power draw of 27.9 W, supplied from the server mLOM slot.

It connects to UCS FI-6664, FI-6536, FI-6332 and FI-6332-16UP Fabric Interconnects, as well as a range of Nexus switches including the 9336C-FX2 and 9364C. Supported optics include the QSFP-40G-SR4 and LR4 families for 40G, and QSFP-100G-SR4-S, QSFP-100G-LR4-S and QSFP-100G-CWDM4-S for 100G. Management is through Cisco UCS Manager, Cisco IMC or Cisco Intersight, with a minimum release of 4.2(1).

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Stateless design: NIC and HBA count, MAC/WWN identity, failover, bandwidth and QoS are set dynamically through the service profile
- 256 dynamic virtual adapters without requiring SR-IOV support from the OS or hypervisor, and hardware is also SR-IOV capable
- Low-latency usNIC (as low as 1 microsecond back-to-back) and DPDK kernel bypass
- Hardware stateless offloads for VXLAN, NVGRE and GENEVE, with NetQueue and VMQ/VMMQ virtualisation support
- Cisco SingleConnect carries LAN, SAN and management traffic over one unified network
- Cisco Data Center VM-FEX technology
- RoCEv2 and NVMe over Fabrics with RDMA (UCSM 4.1 and later)
- Centralised management through Cisco UCS Manager, Cisco IMC or Cisco Intersight

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 2 x 40/100-Gbps Ethernet and FCoE QSFP28
- Form factor: mLOM
- Host interface: PCIe 3.0 x16
- PCIe throughput: 128 Gb/s (PCIe x16 Gen3)
- Per-port performance: 10/25/40/100-Gbps
- Virtual interfaces: 256 (approximately 8 reserved for internal use)
- ASIC: Cisco UCS custom ASIC
- Maximum power consumption: 27.9 W
- Dimensions (L x W x H): 6.29 in x 3.99 in x 0.74 in (approx. 160 x 101 x 19 mm)
- Standards: 10/25/40/100-Gigabit Ethernet, IEEE 802.3x, 802.1q VLAN, 802.1p, 802.1Qaz, 802.1Qbb, prestandard 802.1BR
- Frame size: jumbo frames up to 9KB
- Storage protocols: SCSI-FCP, T11 FCoE
- Supported servers: UCS C220 M6, C240 M6, C225 M6, C245 M6
- Minimum management release: UCSM 4.2(1) / standalone Cisco IMC 4.2(1)
- Breakout: no reverse-breakout of 40/100G ports to 4x10G or 4x25G
- QSA28 adapter (CVR-QSFP28-SFP28): not supported

FAQs

Q: Which servers does the VIC 1477 fit?
A: It is an mLOM adapter for Cisco UCS C220 M6, C240 M6, C225 M6 and C245 M6 rack servers. It requires UCSM or Cisco IMC release 4.2(1) or later.

Q: Does it need a separate licence?
A: No separate licence is stated for the adapter itself. It is managed through Cisco UCS Manager, Cisco IMC or Cisco Intersight.

Q: Does it need external power?
A: No. It draws a maximum of 27.9 W from the server mLOM slot.

Q: Which switches and fabric can it connect to?
A: It supports UCS FI-6664, FI-6536 (IMM 4.2(2) or later), FI-6332 and FI-6332-16UP, plus Nexus 3232C, 92300YC, 9236C, 93180LC-EX, 93240YC-FX2, 9332C, 9336C-FX2, 93360YC-FX2 and 9364C.

Q: Which optics are supported?
A: For 40G: QSFP-40G-SR4, SR4-S, CSR4, LR4 and LR4-S. For 100G: QSFP-100G-SR4-S, QSFP-40/100-SRBD, QSFP-100G-SR1.2, LR4-S, SL4, DR-S, FR-S, SM-SR, CWDM4-S and PSM4-S.

Q: Can the 40/100G ports be broken out to 10G or 25G?
A: No. Reverse breakout of the 40/100G ports to 4x10G or 4x25G is not supported.
