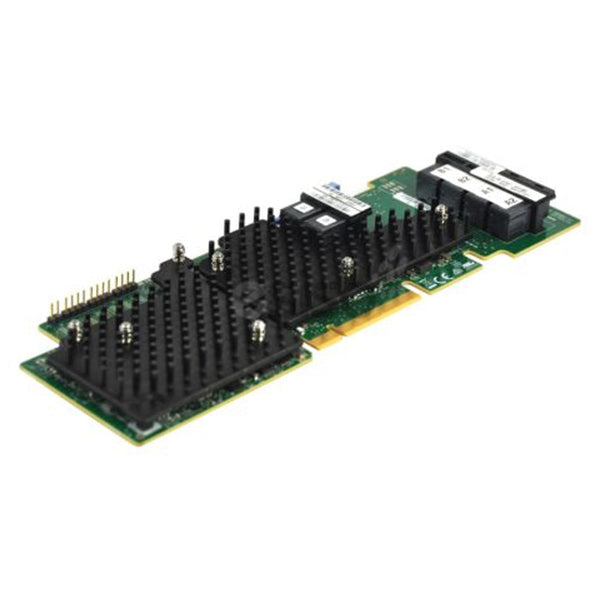

Cisco UCSC-9400-8E | UCS C-Series 12G SAS HBA, 8e, 2x SFF-8644, PCIe x8
SKU:UCSC-9400-8E
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This Cisco UCS C-Series 12G 9400-8e SAS host bus adapter is a non-RAID storage controller for Cisco UCS C-Series M5 rack servers. It is designed for connecting a server to external JBOD enclosures and disk shelves, where capacity expansion or software-defined storage is needed and hardware RAID is not required.
The card provides 8 external 12Gb/s SAS/SATA ports presented through two SFF-8644 mini-SAS HD connectors, and uses a PCI Express 3.1 x8 host interface. It can control up to 1024 external drives when scaled through SAS expanders, and passes disks directly through to the host for direct disk access. It is powered from the PCIe slot, so no external power connection is required, and no licence or subscription is needed.
It is supported in Cisco UCS C220 M5, C240 M5 and C480 M5 servers, and up to two cards can be fitted in a C220 M5, one in each rear PCIe slot. External connections use copper SFF-8644 cables only, as optical cables are not supported. Firmware is delivered in the UCS C-Series firmware release bundles and the card is managed through CIMC.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Supports external JBOD attach through two SFF-8644 connectors
- Non-RAID design gives the host direct disk access
- 12Gb/s SAS and SATA connectivity on 8 external ports
- Scales to large drive counts using SAS expanders
- Cisco-tailored firmware validated for UCS servers
- Managed through CIMC on UCS C-Series servers
- Plugs into a PCIe riser slot with up to two cards per C220 or C240 M5
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Product type: 12Gb/s SAS / SATA host bus adapter (HBA)
- RAID support: No, non-RAID HBA with JBOD pass-through
- External ports: 8 SAS/SATA ports
- Connectors: 2 x SFF-8644 (mini-SAS HD)
- Host interface: PCI Express 3.1 x8
- Maximum external drives: up to 1024
- External cabling: copper only, optical cables not supported
- Form factor: Plug-in card for PCIe riser slot
- Height: 2.7 in
- Width: 6.6 in
- Supported servers: UCS C220 M5, C240 M5 and C480 M5
- Maximum per C220 M5 server: two HBAs, one in each rear PCIe slot
- Firmware package: 24.65.18.00 (Release 4.3(6))
- Power: supplied from the host server PCIe slot
- Licensing: no licence or subscription required
FAQs
Q: Does this HBA need a licence or subscription?
A: No. No licence or subscription is required to use the UCSC-9400-8E.
Q: Does it need external power?
A: No. The card is powered from the PCIe slot of the host server.
Q: Which servers is it supported in?
A: It is supported in Cisco UCS C220 M5, C240 M5 and C480 M5 servers.
Q: Does it support hardware RAID?
A: No. It is a non-RAID HBA that passes disks directly to the host, which suits JBOD enclosures and software-defined storage.
Q: What cables does it use?
A: It uses SFF-8644 mini-SAS HD connectors with copper cables only. Optical cables are not supported.
Q: How many can be installed in one server?
A: A C220 M5 server supports up to two of these HBAs, one in each rear PCIe slot.
