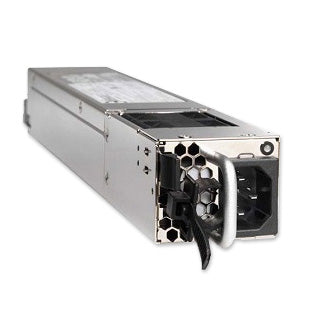

Cisco UCSB-PSU-2500DC48 | UCS 5108 2500W -48V DC Hot-Plug Power Supply
SKU:UCSB-PSU-2500DC48
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This 2500 W hot-swappable power supply is built for the DC-powered Cisco UCS 5108 blade server chassis. It suits DC-fed data centres and telco or central-office environments running UCS B-Series blade servers, including UCS Mini deployments.
It takes a -48 VDC to -60 VDC nominal input (range -40 to -72 VDC) and delivers up to 2500 W at 12 VDC. Maximum input is 2840 W at a nominal 59.2 A, with efficiency of 92% at 50% load. Up to four units can be installed per chassis, and two to four are selected per configuration for non-redundant, N+1 or grid-redundant power. This -48 V DC model is distinct from the UCSB-PSU-2500ACDV AC dual-voltage and UCSB-PSU-2500HVDC 200-380 VDC variants.
It is intended for the DC chassis (UCSB-5108-DC) with the UCSB-PWRM-DC48 DC power input module, and is supported with the UCS 6324 Fabric Interconnect and 2208XP, 2204XP and 2104XP fabric extenders. AC and DC power supplies must not be mixed in the same chassis.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hot-swappable, field-replaceable power supply
- Supports non-redundant, N+1 and N+N grid-redundant power configurations in the UCS 5108 chassis
- Supported with the Cisco UCS 6324 Fabric Interconnect (UCS Mini)
- No restrictions on blades powering up when the chassis runs on -48 V DC supplies
- Provides a DC-fed option for telco and DC-powered data centres
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Maximum output power: 2500 W
- Output voltage: 12 VDC
- DC input voltage: -48 VDC to -60 VDC nominal (range -40 to -72 VDC)
- Nominal input voltage: -48 V
- Nominal input current: 59.2 A
- Current draw at minimum voltage: 71 A
- Current draw at maximum voltage: 40 A
- Maximum input: 2840 W
- Maximum inrush current: 90 A (cold turn-on)
- Efficiency: 88% at 10% load, 88% at 20% load, 92% at 50% load, 88% at 100% load
- Maximum holdup time: 8 ms at 50% load, 4 ms at 100% load
- DC input terminal block: accepts Panduit LCD4-14AF-L or equivalent barrel-type lug terminals, 90-degree angle, two-hole tongue, for 1/0 AWG copper wire
- Connector dimensions: tongue width 0.82 in, stud hole spacing 5/8 in, hole size 1/4 in
- Maximum per chassis: 4 units
- Minimum software: Cisco UCS Manager 2.0(1)
FAQs
Q: Which chassis does this power supply fit?
A: It is for the DC-powered Cisco UCS 5108 chassis (UCSB-5108-DC), used with the UCSB-PWRM-DC48 DC power input module.
Q: Can I mix it with AC power supplies in the same chassis?
A: No. AC and DC power supplies must not be mixed in the same UCS 5108 chassis.
Q: How many can be installed in one chassis?
A: Up to four per chassis. Two to four are selected per configuration depending on whether you need non-redundant, N+1 or grid-redundant power.
Q: What input voltage does it need?
A: It takes a -48 VDC to -60 VDC nominal DC input, with an operating range of -40 to -72 VDC.
Q: What software version is required?
A: Cisco UCS Manager 2.0(1) is the minimum. When used with UCS Mini and the 6324 Fabric Interconnect, UCS Manager 3.0(2c) is required.
Q: How does it differ from the other UCS 5108 2500 W power supplies?
A: This model runs on -48 V DC input. UCSB-PSU-2500ACDV is the AC dual-voltage version and UCSB-PSU-2500HVDC takes a 200-380 VDC input.
