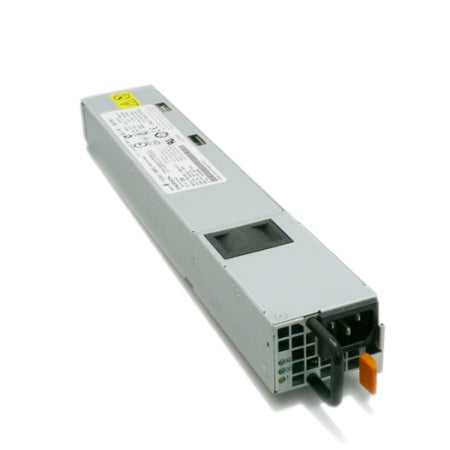

Cisco UCSB-PSU-2500ACDV | UCS 5108 Chassis 2500W Platinum AC Power Supply, IEC C20
SKU:UCSB-PSU-2500ACDV
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This hot-plug power supply is built for the Cisco UCS 5100 Series Blade Server Chassis, the UCS 5108. It provides redundant, hot-swappable power for blade servers in data centre deployments, with up to four power supplies fitted per chassis for N+N or N+1 redundancy.
The 2500W Platinum AC unit is dual voltage. On 200-240 VAC input it delivers up to 2500 W, drawing less than 15 A at 200 VAC with a maximum of 2790 VA. On 100-120 VAC input it delivers up to 1300 W, and that low-line range is supported only with the UCS 6324 Fabric Interconnect. Main output is 12 VDC at 208 A with a 3.3 VDC standby output at 5 A. Efficiency is 80 PLUS Platinum certified, reaching 95% at 50% load. Input is via an IEC320 C20 inlet.
It requires UCS Software release 2.0(2) or later. Supported power cords are listed in the Cisco UCS 5108 Server Chassis Installation Guide.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- 80 PLUS Platinum certified efficiency of up to 95% at 50% load
- Hot-plug design for the UCS 5108 chassis
- Up to four power supplies per chassis for N+N or N+1 redundancy
- Dual-voltage AC input for 200-240 VAC and 100-120 VAC
- Standby 3.3 VDC output for chassis management
- IEC320 C20 inlet
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Output power: 2500 W at 200-240 VAC
- Output power (low line): 1300 W at 100-120 VAC, UCS 6324 Fabric Interconnect only
- AC input voltage: 200 to 240 VAC nominal (range 180 to 264 VAC)
- AC input voltage (low line): 100 to 120 VAC nominal (range 90 to 127 VAC)
- AC input frequency: 50 and 60 Hz nominal (range 47 to 63 Hz)
- AC input current: less than 15 A at 200 VAC
- Maximum input VA: 2790 VA at 200 VAC
- Maximum inrush current: 35 A (subcycle duration)
- Maximum heat output: 8530 BTU
- Maximum hold-up time: 12 ms at 2500 W
- Main output: 12 VDC at 208 A
- Standby output: 3.3 VDC at 5 A
- Efficiency rating: 80 PLUS Platinum, Climate Savers Platinum
- Efficiency: 93.5% at 10% load, 94.9% at 20% load, 95% at 50% load, 93% at 100% load
- Input connector: IEC320 C20
- Compatible chassis: Cisco UCS 5108 Blade Server Chassis
- Minimum software: UCS Software release 2.0(2)
FAQs
Q: What input voltage does this power supply accept?
A: It accepts 200-240 VAC input for up to 2500 W output. It also accepts 100-120 VAC input at up to 1300 W, but the low-line range is supported only with the UCS 6324 Fabric Interconnect.
Q: Which chassis does it fit?
A: It is designed for the Cisco UCS 5108 Blade Server Chassis and requires UCS Software release 2.0(2) or later.
Q: How many power supplies can the chassis use?
A: The UCS 5108 chassis takes up to four power supplies, which supports N+N or N+1 redundancy.
Q: Which power cord connector does it use?
A: The input connector is an IEC320 C20 inlet. Supported power cords are listed in the Cisco UCS 5108 Server Chassis Installation Guide.
Q: Can it be replaced while the chassis is running?
A: Yes. It is a hot-swappable design for the UCS 5108 chassis.
