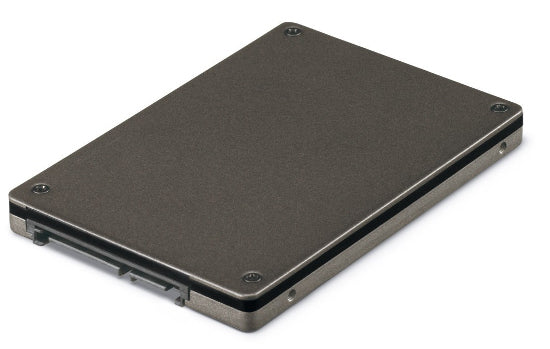

Cisco UCSB-NVME2H-I3200 | 3.2TB U.2 NVMe SSD, Intel P4610, High Endurance, Blade
SKU:UCSB-NVME2H-I3200
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This 3.2TB 2.5-inch U.2 NVMe enterprise SSD is built on the Intel DC P4610 and is designed for Cisco UCS B-Series blade servers. It is the High Performance, High Endurance drive option, aimed at write-intensive and mixed workloads such as databases, virtualisation and low-latency caching.
The drive uses a PCIe 3.1 x4 interface with NVMe 1.2 and Intel 64-layer 3D TLC NAND. It delivers up to 3200 MB/s sequential read and 3000 MB/s sequential write, with up to 640,000 random read IOPS and 200,000 random write IOPS at 4KB. Endurance is rated at up to 3 DWPD (JESD219), or 21.85 PBW of lifetime writes. Power draw is about 13.8 W active and 5 W idle, supplied through the blade server backplane.
It is a hot-pluggable 15 mm drive with enhanced power-loss data protection, end-to-end data protection and hardware AES 256-bit encryption. It is listed as a drive option for UCS B200 M5 blades, which use the Cisco FlexStorage NVMe passthrough module for NVMe drive support.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hot-pluggable U.2 NVMe drive for UCS B-Series blade servers
- High endurance technology (HET) for mixed read/write workloads
- Enhanced power-loss data protection
- End-to-end data protection
- Hardware AES 256-bit encryption
- Temperature monitoring and logging with enhanced SMART monitoring
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Capacity: 3200 GB (3.2TB)
- Drive type: NVMe, High Performance / High Endurance
- Form factor: 2.5-inch U.2 (SFF-8639), 15 mm
- Interface: PCIe 3.1 x4, NVMe 1.2
- Media: Intel 64-layer 3D TLC NAND
- Controller platform: Intel DC P4610
- Sequential read: up to 3200 MB/s
- Sequential write: up to 3000 MB/s
- Random read 4KB: up to 640,000 IOPS
- Random write 4KB: up to 200,000 IOPS
- Latency read/write: 77 us / 18 us
- Power active/idle: 13.8 W / 5 W
- Endurance: up to 3 DWPD (JESD219)
- Lifetime writes: 21.85 PBW
- MTBF: 2 million hours
- UBER: 1 sector per 10^17 bits read
- Operating temperature: 0 to 55 C
- Weight: 139 g
- Encryption: AES 256-bit hardware encryption
FAQs
Q: Which Cisco servers does this drive work with?
A: It is for Cisco UCS B-Series blades with NVMe support, such as the UCS B200 M5, where it is listed as an available drive option. The B200 M5 requires the Cisco FlexStorage NVMe passthrough module.
Q: Does it need a licence or subscription?
A: No. It is a standard storage drive and does not require a software licence.
Q: How much power does it draw?
A: About 13.8 W active and 5 W idle. Power is supplied through the blade server backplane, so no separate power connection is needed.
Q: How does this part differ from the rack and HyperFlex versions?
A: UCSB-NVME2H-I3200 is the blade (UCSB) version. The rack server equivalent is UCSC-NVME2H-I3200, and the HyperFlex equivalents are HX-NVME2H-I3200 and HX-B-NVME2H-I3200.
Q: Which earlier part did this drive replace?
A: It replaced the Intel P4600-based UCSB-NVMEHW-I3200 as the 3.2TB High Performance, High Endurance blade NVMe option.
