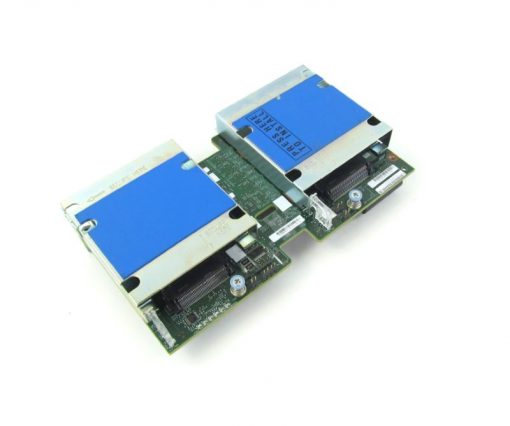

Cisco UCSB-MRAID12G-HE | UCS B-Series 12G SAS RAID Controller, 2GB FBWC

SKU:UCSB-MRAID12G-HE

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This FlexStorage 12G SAS RAID controller is built for Cisco UCS B-Series blade servers that need local hardware RAID with write caching. It runs the full MegaRAID software stack and is the controller to choose for VMware VSAN deployments that call for a fully featured MegaRAID controller.

It is based on the LSI SAS 3108 RAID-on-chip and supports SAS and SATA drives at up to 12 Gbps. A 2 GB flash-backed write cache protects cached data: on a power or server failure the DRAM cache is copied to NAND flash using a supercapacitor and restored when power returns. RAID 0, 1, 5 and 6 are supported per the B200 M4 specification. Compared with the entry-level UCSB-MRAID12G, which has no cache and supports only RAID 0 and 1, this model adds the 2 GB cache, the full MegaRAID stack and a higher queue depth. The module includes the front drive bays for up to two 2.5-inch SFF drives.

It is orderable on the UCS B200 M4 and requires UCSM 2.2(6) or later. Other B-Series blades should be confirmed against the relevant server specification sheet. It cannot control NVMe SFF drives and cannot be mixed with the UCSB-MRAID12G in the same server.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Full MegaRAID stack with cache access, recommended for VMware VSAN
- Flash-backed write cache protects cached data during power loss
- Higher queue depth than the entry-level UCSB-MRAID12G
- Provides local drive bays for UCS B-Series blade servers
- 12 Gbps SAS connectivity with SAS and SATA drive support
- Hardware RAID 0, 1, 5 and 6 for local storage

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Controller chip: LSI SAS 3108 RAID-on-chip
- Interface speed: up to 12 Gbps SAS
- Drive support: SAS/SATA
- Write cache: 2 GB flash-backed write cache (DRAM with NAND flash and supercapacitor)
- Software stack: MegaRAID, fully featured with cache access and higher queue depth than UCSB-MRAID12G
- RAID levels: 0/1/5/6
- Form factor: FlexStorage module with drive bays for blade servers
- Drive bays: up to two 2.5-inch SFF hot-swappable drives (B200 M4)
- Cache protection: DRAM cache copied to NAND flash on power or server failure and restored when power returns
- Supercapacitor replacement part: UCSB-MRAID-SC=
- Minimum UCSM version (B200 M4): 2.2(6) or later
- NVMe SFF drives: not supported by this controller

FAQs

Q: Does this controller need a licence or subscription?
A: No. No licence or subscription is required.

Q: How does it differ from the UCSB-MRAID12G?
A: The UCSB-MRAID12G has no write cache and supports RAID 0 and 1 only. This model adds a 2 GB flash-backed write cache, the full MegaRAID stack, RAID 5 and 6 and a higher queue depth. It cannot be upgraded by kit, so the controller must be swapped.

Q: Which servers does it work with?
A: It is orderable on the Cisco UCS B200 M4, which needs UCSM 2.2(6) or later. Confirm other B-Series blades against the relevant server specification sheet.

Q: Can it be mixed with the UCSB-MRAID12G in the same server?
A: No. The two controllers cannot be mixed in the same server.

Q: Does it support NVMe drives?
A: No. This controller cannot control NVMe SFF drives. It supports SAS and SATA drives.

Q: What protects the write cache during a power loss?
A: A supercapacitor lets the DRAM cache be copied to NAND flash on power or server failure, and it is restored when power returns. The replacement part is UCSB-MRAID-SC=.
