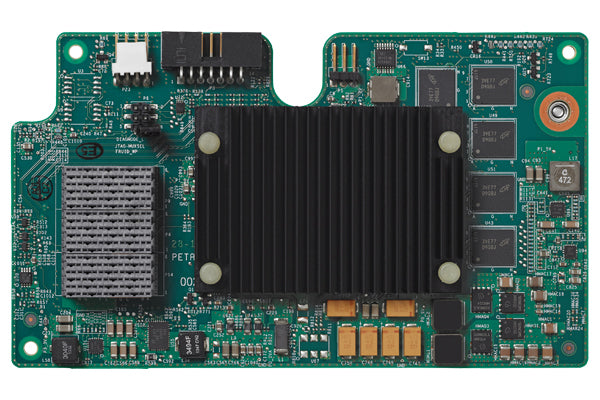

Cisco UCSB-MLOM-40G-03 | UCS VIC 1340 40G mLOM Network Adapter, B-Series M3/M4
SKU:UCSB-MLOM-40G-03
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The UCS Virtual Interface Card (VIC) 1340 is a modular LAN on motherboard (mLOM) network adapter for Cisco UCS B-Series blade servers. It consolidates LAN and SAN connectivity over a single unified fabric using FCoE and iSCSI, which suits virtualised and bare-metal data centre deployments on UCS blades.
The adapter provides 2 x 40-Gbps Ethernet ports, or 2 sets of 4 x 10-Gbps, with an optional port expander card to enable two full 40-Gbps ports, delivering up to 80 Gbps to the server. It uses an x16 PCIe Gen3 host interface, presents over 256 dynamically configurable PCIe NIC and HBA interfaces, and supports more than 900,000 IOPS. Typical power draw is 12 W, or 15 W with the port expander card.
This mLOM is designed for the Cisco UCS B200 M3 and all M4-generation B-Series blade servers. It connects to the UCS fabric interconnects through the chassis fabric extenders at 10 or 40 Gbps, and is managed through Cisco UCS Manager Release 2.2(3) or later and Cisco Intersight.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Stateless and agile design: adapter personality including NIC and HBA count, MAC and WWN identity, failover, bandwidth and QoS is set dynamically from the service profile
- Over 256 dynamic PCIe virtual adapters without requiring SR-IOV support from the OS or hypervisor
- Cisco SingleConnect technology carries LAN, SAN and management traffic over a single network
- Cisco Data Center VM-FEX extends fabric interconnect ports directly to virtual machines
- Hardware-based fabric failover provides a redundant path to the fabric interconnect
- Stateless offloads for NVGRE and VXLAN on VMware, plus low-latency usNIC and RDMA support
- Performance features include VMQ, DPDK, NetFlow, NetQueue, Multi RQ, Receive-Side Scaling and Receive-Flow Steering
- Lossless Ethernet with Priority Flow Control (PFC) to enable FCoE
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: Modular LAN on motherboard (mLOM)
- Ports: 2 x 40-Gbps Ethernet, or 2 sets of 4 x 10-Gbps, with optional port expander card
- Line rate: 40 Gbps per port
- Total bandwidth to server: 80 Gbps
- Host interface: x16 PCIe Gen3
- Virtual interfaces: Over 256 dynamic NICs/HBAs (approximately 8 reserved for internal use)
- I/O performance: More than 900,000 IOPS
- Storage protocols: FCoE, iSCSI and iSCSI Boot
- Typical power: 12 W (15 W with port expander card)
- Dimensions: 18.4 cm length x 9.3 cm width (7.25 x 3.65 in.)
- Inlet operating temperature: 10 to 35 C (50 to 95 F)
- Management: Cisco UCS Manager Release 2.2(3) or later, Cisco Intersight
- Jumbo frames: Up to 9 KB
- Supported platforms: Cisco UCS B200 M3 and all M4 blade servers
- Supported OS and hypervisors: Microsoft Windows, Red Hat Enterprise Linux, CentOS, Ubuntu, VMware vSphere, Citrix XenServer
FAQs
Q: Does the VIC 1340 need a separate licence?
A: No separate licence is stated for the card. It is managed through Cisco UCS Manager Release 2.2(3) or later and Cisco Intersight.
Q: Which blade servers is the VIC 1340 designed for?
A: It is designed for the Cisco UCS B200 M3 and all M4-generation B-Series blade servers.
Q: How do I get two full 40-Gbps ports?
A: The base mLOM provides 2 x 40-Gbps ports, or 2 sets of 4 x 10-Gbps. An optional port expander card enables two full 40-Gbps ports, for up to 80 Gbps to the server.
Q: How much power does the VIC 1340 draw?
A: Typical power draw is 12 W, or 15 W with the port expander card. It is powered from the blade server.
Q: How does it connect to the network?
A: It connects to the Cisco UCS fabric interconnects through the chassis fabric extenders, at 10 or 40 Gbps.
