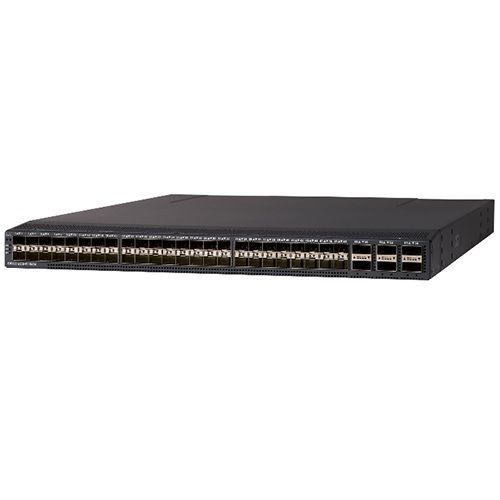

Cisco UCS-SP-FI6454 | UCS 6454 54-Port 10/25G Fabric Interconnect, UCS Manager
SKU:UCS-SP-FI6454
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The UCS 6454 is a 1RU fabric interconnect from the Cisco UCS 6400 Series. It is the core fabric for Cisco UCS blade and rack server deployments, carrying unified LAN, SAN and management traffic over Ethernet, FCoE and Fibre Channel, and scaling to 20 blade chassis, including HyperFlex environments.
This SP bundle SKU provides 54 fixed ports: 48 x 10/25G SFP28 and 6 x 40/100G QSFP28 uplink ports, with 3.82 Tbps of throughput and 1.2 bpps Layer 2 forwarding. Unified ports 1-16 support 8/16/32G Fibre Channel, and ports 45-48 can run at 1G. It is managed with Cisco UCS Manager and uses port-based licensing, so capacity can grow as needed. The unit is non-PoE and supports up to two hot-swappable power supplies (650W AC or 930W DC) with 3+1 fan modules and front-to-back airflow.
It works with 1G SFP, 10G SFP+, 25G SFP28 and 40/100G QSFP28 optics and cables. The UCS-FAN-6332 fan module and UCS-ACC-6332 accessory kit are shared with the UCS 6332. 10/25G direct-connect rack servers with VIC 1455 or 1457 adapters are supported.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Unified fabric carrying LAN, SAN and management traffic over one transport, reducing NICs, HBAs, switches and cables
- Fabric extender architecture scaling to 20 blade chassis
- Low-latency lossless fabric with latency under 1 microsecond
- Priority-based Flow Control (802.1Qbb) and Enhanced Transmission Selection (802.1Qaz)
- Hot-swappable redundant fans and power supplies with front-to-back cooling
- SFP28 ports operate at 10/25G and QSFP28 ports at 40/100G
- Port-based licensing for pay-as-you-grow capacity
- Breakout cables supported on uplink ports 49-54 when connecting to Nexus 9K
- From UCS Manager 4.1(3), 40/100G ports can serve as server ports after breakout (10/25G direct-connect rack servers with VIC 1455/1457)
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: 1RU
- Fixed ports: 54
- Downlink ports: 48 x 10/25G SFP28
- Uplink ports: 6 x 40/100G QSFP28 (ports 49-54)
- Unified ports: 16 (ports 1-16)
- 1G Ethernet ports: up to 4 (ports 45-48)
- Throughput: 3.82 Tbps
- Layer 2 forwarding: 1.2 bpps
- Downlink speeds: 1/10/25G Ethernet and FCoE, 8/16/32G Fibre Channel
- CPU: 6 cores
- System memory: 64 GB
- Management ports: L1, L2 and RJ-45
- USB ports: 1
- Fan modules: 3+1 (4 fans)
- Power supplies: up to 2, 650W AC or 930W DC
- Typical operating power: 260W
- Input voltage (AC): 100 to 240 VAC
- Input voltage (DC): -40 to -72 VDC
- Dimensions (H x W x D): 4.4 x 43.9 x 57.1 cm
- Weight: 10.10 kg with two PSUs, two expansion modules and fans
- Operating temperature: 0 to 40 C
- Humidity: 5 to 95%
- Altitude: 0 to 4000 m
- RoHS compliant: Yes
FAQs
Q: How is the UCS 6454 managed and licensed?
A: It is managed with Cisco UCS Manager. Port licensing applies: the base UCS-FI-6454 includes 18 x 10/25G and 2 x 40/100G port licences. Additional ports need UCS-L-6400-25G, UCS-L-6400-25GC (C-direct only) or UCS-L-6400-100G licences.
Q: Which power supplies does it use?
A: It takes up to two hot-swappable PSUs: UCS-PSU-6332-AC (650W, 100-240 VAC) or UCS-PSU-6332-DC (930W, -48 VDC). Typical draw is 260W. It is a non-PoE device.
Q: Which optics and cables does it support?
A: It supports 1G SFP (such as GLC-TE and GLC-SX-MMD), 10G SFP+ (such as SFP-10G-SR), 25G SFP28 and 40/100G QSFP28 transceivers and cables as listed in the Cisco UCS 6400 datasheet.
Q: Can the 40/100G ports connect servers?
A: Yes, with UCS Manager 4.1(3) or later. After breakout, the 40/100G ports can be used as server ports for 10/25G direct-connect rack servers with VIC 1455 or 1457 adapters.
Q: Does it support Fibre Channel?
A: Yes. Unified ports 1-16 support 8/16/32G Fibre Channel, and the switch also carries FCoE and Ethernet traffic.
