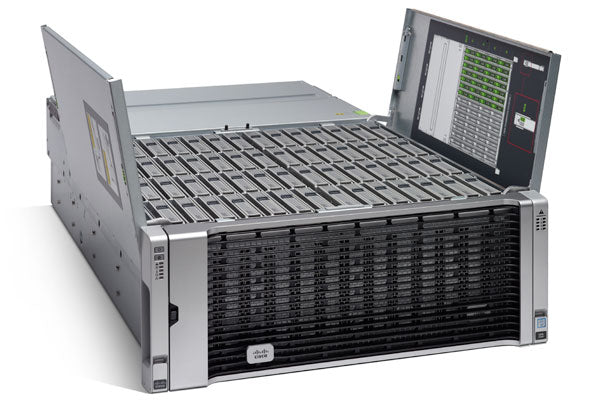

Cisco UCS-S3260-PCISIOC | UCS S3260 PCIe SIOC Module, x8 PCIe Slot, 2x NVMe

SKU:UCS-S3260-PCISIOC

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The UCS S3260 PCIe SIOC is a System I/O Controller module for the Cisco UCS S3260 4RU dense storage server. Unlike the embedded VIC SIOC, it has no embedded VIC and instead gives you a x8 low-profile PCIe slot, so you can choose your own network or storage adapter. It suits big data, cloud, object storage, video surveillance and content delivery deployments that need 25G or 100G connectivity, Fibre Channel or local NVMe instead of the fixed 2x40G of the VIC 1300 SIOC.

The SIOC provides one x8 low-profile PCIe adapter slot, which must be populated with one adapter, and supports up to two 7 mm NVMe drives installed in the UCS-S3260-NVMSLD2 sled. A single server node configuration allows 1 NVMe drive per SIOC, and a dual server node configuration allows up to 2. Each SIOC includes a 10/100/1000 RJ-45 dedicated management port for CIMC and BMC access. One or two SIOCs can be fitted per chassis, and Node 1 connects to the left SIOC while Node 2 connects to the right SIOC.

It works only in the UCS S3260 chassis with S3260 M5 server nodes and requires UCSM 4.0(1) or later when the PCIe adapter SIOC is installed. It cannot be mixed with the VIC 1300 SIOC in the same chassis. Supported adapters include the Cisco UCS VIC 1455 and VIC 1495, Intel and Mellanox Ethernet adapters, Qlogic Fibre Channel adapters and the Cisco 9400-8e 12G SAS HBA.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- PCIe-based network and storage connectivity choice instead of a fixed embedded VIC 1300
- Supports Cisco UCS VIC 1455 quad-port 10/25G and VIC 1495 dual-port 100G adapters
- Supports Intel, Mellanox and Qlogic Ethernet adapters and Qlogic Fibre Channel adapters
- Supports the Cisco 9400-8e 12G SAS HBA for external JBOD attach
- Local NVMe SSD capacity on the SIOC with up to two 7 mm NVMe drives
- Dedicated 1GbE management port for CIMC and BMC access
- Rear-accessible module that supports dual-SIOC redundancy designs

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Product ID: UCS-S3260-PCISIOC (spare: UCS-S3260-PCISIOC=)
- Module type: System I/O Controller (SIOC) with x8 low-profile PCIe slot and NVMe slots
- PCIe slot: One x8 low-profile PCIe adapter slot, one adapter per SIOC, slot cannot be left empty
- NVMe drive support: Up to two 7 mm NVMe drives per SIOC via the UCS-S3260-NVMSLD2 sled
- NVMe limit, single server node: Maximum of 1 NVMe drive per SIOC
- NVMe limit, dual server node: Maximum of 2 NVMe drives per SIOC
- Management port: One 10/100/1000 RJ-45 dedicated management port per SIOC, plus a CMC debug firmware utility port
- Chassis population: One or two SIOCs per chassis, each server node requires a single SIOC
- Node mapping: Node 1 (top) connects to SIOC1 (left), Node 2 (bottom) connects to SIOC2 (right), viewed from the rear
- Single node with two SIOCs: Requires Cisco IMC 3.0(3) and UCSM 3.1(3) or later
- Management software: UCSM 4.0(1) required with the PCIe SIOC installed
- Server node compatibility: Cisco UCS S3260 M5 server node
- Chassis: Cisco UCS S3260 Storage Server, 4RU
- Mixing rule: Do not mix with the VIC 1300 SIOC (UCSC-C3260-SIOC)
- Blanking plate: UCSC-C3X60-SBLKP must be installed if an SIOC is removed
- Chassis operating temperature: 5 to 35 C
- Chassis non-operating temperature: -40 to 65 C

FAQs

Q: Does the PCIe SIOC include a network adapter?
A: No. The PCIe SIOC has no embedded VIC. You select one x8 low-profile PCIe adapter per SIOC, and the slot cannot be left empty.

Q: Which adapters work in the PCIe slot?
A: Supported adapters include the Cisco UCS VIC 1455 (UCSC-PCIE-C25Q-04) and VIC 1495 (UCSC-PCIE-C100-04), Intel i350, X520, X550-T2, X710, XL710 and XXV710-DA2 adapters, Mellanox CX-5 (UCSC-P-M5D100GF), Qlogic QL45412H and QLE2692 adapters, and the Cisco 9400-8e 12G SAS HBA (UCSC-9400-8E).

Q: Can I mix it with the VIC 1300 SIOC in the same chassis?
A: No. The PCIe SIOC cannot be mixed with the VIC 1300 SIOC (UCSC-C3260-SIOC) in the same chassis.

Q: Which chassis and server nodes does it support?
A: It works in the Cisco UCS S3260 chassis with S3260 M5 server nodes. UCSM 4.0(1) or later is required when the PCIe SIOC is installed.

Q: How many NVMe drives can it hold?
A: Up to two 7 mm NVMe drives per SIOC, installed in the UCS-S3260-NVMSLD2 sled. A single server node configuration allows 1 NVMe drive per SIOC, and a dual server node configuration allows 2.

Q: How is the SIOC powered?
A: It is powered from the S3260 chassis and has no dedicated power supply. The chassis uses four hot-swap 1050 W power supplies in 3+1 redundancy.
