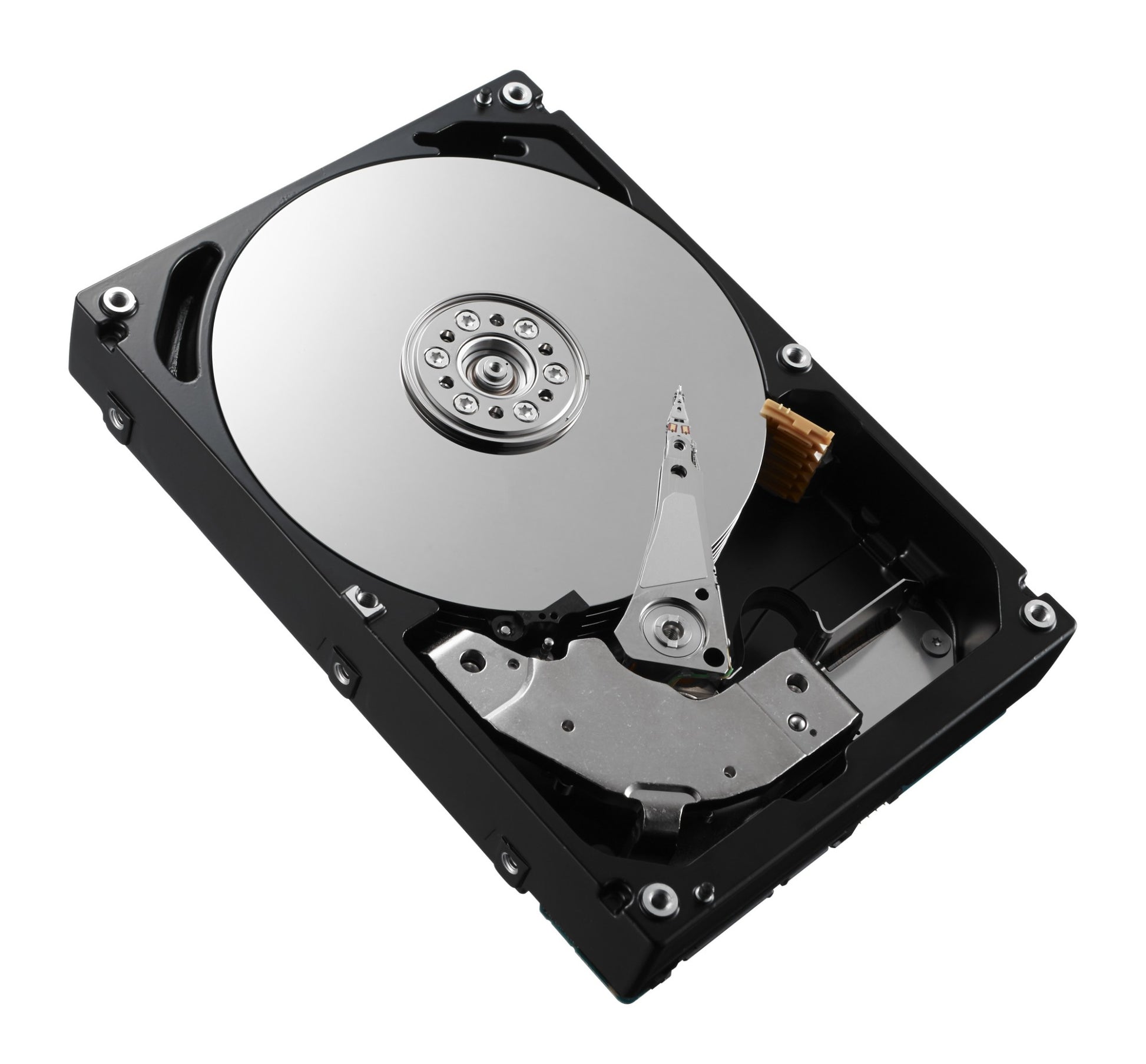

Cisco UCS-S3260-HDW20TR | UCS S3260 20TB 12G SAS 7.2K LFF Hard Drive, Rear Load
SKU:UCS-S3260-HDW20TR
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This 20TB large form factor hard drive is built for the rear disk expansion tray of the Cisco UCS S3260 Storage Server. It suits bulk capacity expansion for big data, cloud, object storage, video surveillance and content delivery workloads, where dense nearline storage matters more than raw IOPS.
The drive uses a 12Gb SAS-3 interface, spins at 7,200 RPM and uses a 4K native (4Kn) sector format. The 3.5-inch LFF drive is hot-pluggable and supplied with a drive carrier. It is the rear-load variant, so it installs in the UCS-C3X60-EXPT disk expansion tray in server node bay 2. A fully populated rear tray holds four drives, giving 80TB of raw capacity.
It works with the Cisco UCS S3260 Storage Server using the M5 server node, in either RAID (UCS-S3260-DRAID) or pass-through HBA (UCS-S3260-DHBA) controller modes. All drives in an expansion tray must be the same capacity and type, and 4Kn drives require UEFI boot. For the top-load bays, the equivalent part is UCS-S3260-HDW20T.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hot-pluggable rear-load LFF drive for the UCS S3260 rear disk expansion tray
- 12Gb SAS-3 interface with high-capacity 20TB nearline storage
- Supplied with carrier for installation in the S3260 chassis
- Supports RAID (UCS-S3260-DRAID) or pass-through HBA (UCS-S3260-DHBA) controller modes on the S3260 M5 server node
- Suited to big data, cloud, object storage, video surveillance and content delivery
- 4K native sector format for large-capacity deployments
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Capacity: 20 TB
- Interface: 12Gb SAS (SAS-3)
- Rotational speed: 7,200 RPM
- Form factor: 3.5-inch Large Form Factor (LFF)
- Sector format: 4Kn (4K native), requires UEFI boot
- Mounting: Rear load, hot-plug, with carrier
- Installs in: Rear Disk Expansion Tray (UCSC-C3X60-EXPT) in server node bay 2
- Drives per rear expansion tray: 4 (capacities cannot be mixed)
- Rear expander bundle: UCS-S3260EXWHDT80, 4x20TB, 80TB total raw
- Spare part number: UCS-S3260-HDW20TR=
- Top-load equivalent: UCS-S3260-HDW20T
- Host chassis operating temperature: 5 to 35 C
- Host chassis operating humidity: 10% to 90% RH, non-condensing
- Host chassis non-operating temperature: -40 to 65 C
FAQs
Q: Does this drive need a licence?
A: No. The drive itself does not require a licence or subscription.
Q: Where does this drive install in the UCS S3260?
A: It is a rear-load drive for the Disk Expansion Tray (UCSC-C3X60-EXPT) installed in server node bay 2. It is not for the top-load bays, which use UCS-S3260-HDW20T.
Q: Can I mix drive capacities in the rear expansion tray?
A: No. Drives in a rear expansion tray must all be the same capacity and type. Each tray holds four drives.
Q: Does the 4Kn format have any boot requirements?
A: Yes. 4Kn drives require UEFI boot on the host server.
Q: How is the drive powered?
A: It is powered from the UCS S3260 chassis power supplies, so no separate power supply is needed. Use the Cisco UCS Power Calculator to estimate draw for a specific configuration.
