Cisco UCS-S3260-HDT14T | UCS S3260 14TB NL-SAS 12G Hard Drive, Top Load
SKU:UCS-S3260-HDT14T
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

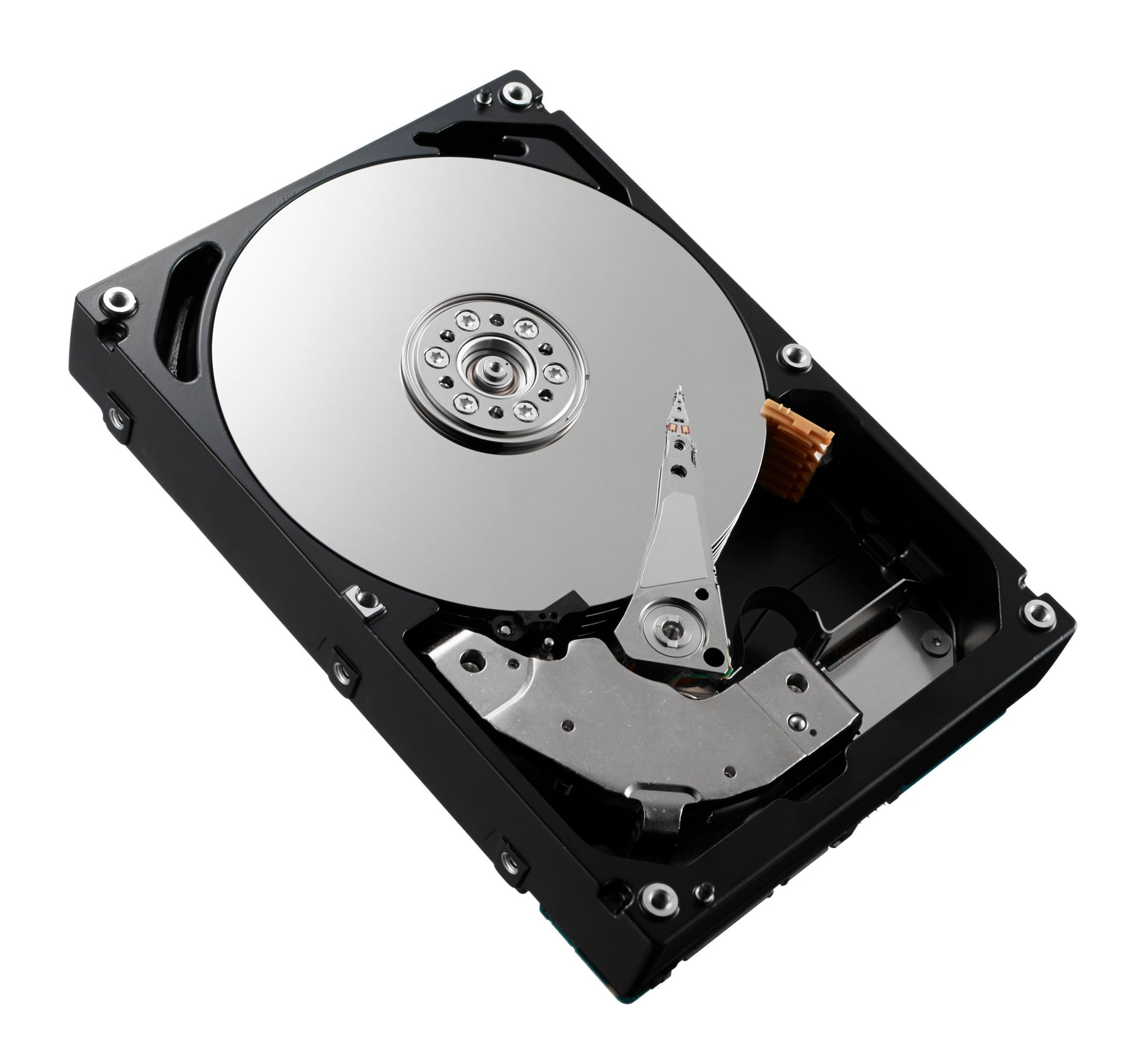

This 14TB 3.5-inch NL-SAS hard drive is built for the Cisco UCS S3260 storage server. It suits high-capacity bulk and capacity-tier storage, such as large-scale object storage, backup and archive, and data-lake deployments on the S3260 4RU chassis.
The drive runs at 7,200 RPM over a 12 Gb/s SAS-3 interface and is a Toshiba-sourced drive supplied with a drive carrier for the top-load bays. It is hot-pluggable with no preconditioning required, and is powered from the chassis, so no separate power supply is needed. A single S3260 holds up to 56 top-load drives, giving up to 784TB raw when fully populated with 14TB drives.
This top-load part is distinct from the rear-load 14TB drive (UCS-S3260-HDT14TR), which is used in a disk expansion tray. Populate drives from the lowest-numbered bays upward, and note that 512n, 512e and 4Kn drives cannot be mixed in the same chassis.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hot-pluggable with no preconditioning required
- Supplied with a drive carrier for the S3260 top-load bays
- Scales to 784TB raw in a single S3260 with 56 x 14TB drives
- Also available in 14, 28, 42 and 56-drive multipack bundles
- Mixed capacities supported, with RAID volumes sized to the smallest common drive
- 12 Gb/s SAS-3 interface for high-capacity bulk storage
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Capacity: 14 TB
- Drive type: NL-SAS (SAS-3)
- Form factor: 3.5-inch Large Form Factor (LFF)
- Rotational speed: 7,200 RPM
- Interface speed: 12 Gb/s
- Mounting: Top load, with drive carrier
- Hot-plug: Yes, no preconditioning required
- Drive source: Toshiba
- Compatible chassis: Cisco UCS S3260 storage server
- Maximum top-load drives per S3260 chassis: 56
- Power: Supplied from the chassis, no separate power supply
- Rear-load equivalent: UCS-S3260-HDT14TR
FAQs
Q: Which server does this drive fit?
A: It is designed for the top-load drive bays of the Cisco UCS S3260 storage server, which holds up to 56 top-load drives.
Q: How does it differ from UCS-S3260-HDT14TR?
A: Both are 14TB drives. This part, UCS-S3260-HDT14T, is the top-load drive for the main chassis. UCS-S3260-HDT14TR is the rear-load version used in a disk expansion tray.
Q: Can I mix it with other drive types in the same chassis?
A: Mixed capacities are allowed, but RAID volumes across different sizes use the smallest common size. 512n, 512e and 4Kn drives cannot be mixed in the same chassis.
Q: Does the drive need a separate power supply?
A: No. It is powered from the UCS S3260 chassis. Use the Cisco UCS Power Calculator to estimate the draw for your configuration.
Q: Is it hot-pluggable?
A: Yes. All S3260 drives are hot-pluggable and no preconditioning is required.
