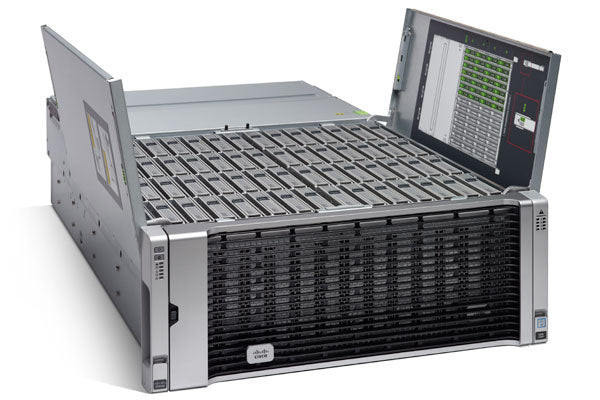

Cisco UCS-S3260-DHBA | UCS S3260 Dual 12G SAS Pass-Through HBA Controller

SKU:UCS-S3260-DHBA

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The UCS-S3260-DHBA is a dual-chip 12G SAS pass-through storage controller for the Cisco UCS S3260 M5 server node, part of the UCS S-Series storage server range. Built on Broadcom (LSI) 3316 silicon with IT firmware, it presents drives directly to the host with no hardware RAID, which suits software-defined storage, object storage, big data, cloud, video surveillance and content delivery workloads.

The controller connects to all chassis drives through the S3260 SAS backplane at 12G SAS (SAS-3) speeds. The 4RU chassis supports up to 56 top-load 3.5-inch LFF drives, plus 4 rear-load LFF drives with the optional disk expansion tray. Rear boot drives are handled by software RAID or the PCH rather than the controller. As a Dual Pass-Through (HBA, IT firmware) card, it is the alternative to the UCS-S3260-DRAID Dual RAID controller, which is based on the 3316 2G ROC and adds hardware RAID. Choose one or the other for a node.

It draws power from the S3260 chassis and server node, so no separate power connection is needed, and no licence or subscription is required for the controller itself. It is managed through Cisco IMC or UCS Manager, with UCSM 3.2.3 or later required for the S3260 M5 server node.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Pass-through HBA operation presents drives directly to the host OS for software-defined storage
- Dual-chip design for the S3260 M5 server node
- Connects to all chassis drives via the SAS backplane
- IT firmware suits object storage, big data and cloud workloads
- Alternative to the UCS-S3260-DRAID hardware RAID controller
- Managed through Cisco IMC or UCS Manager

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Product ID: UCS-S3260-DHBA
- Controller type: Dual-chip pass-through controller (HBA)
- Chipset: Broadcom (LSI) 3316-based
- Firmware: Broadcom IT (initiator-target) firmware
- Drive interface: 12G SAS (SAS-3) via the S3260 SAS backplane
- RAID: None, pass-through / JBOD operation
- Host platform: Cisco UCS S3260 M5 server node
- Boot drive handling: Rear boot drives via software RAID or PCH
- Chassis drive capacity: Up to 56 top-load 3.5-inch LFF drives plus 4 rear-load LFF drives with the optional disk expansion tray
- Rear boot drives: Up to two SATA SSDs per server node (240 GB, 480 GB, 1.6 TB)
- Chassis operating temperature: 5 to 35 C
- Chassis non-operating temperature: -40 to 65 C
- Chassis operating humidity: 10% to 90% RH, non-condensing
- Spare PID: UCS-S3260-DHBA=

FAQs

Q: Does this controller support hardware RAID?
A: No. The UCS-S3260-DHBA is a pass-through HBA running IT firmware, so drives are presented directly to the host. For hardware RAID, the UCS-S3260-DRAID Dual RAID controller is the alternative.

Q: Which server does it fit?
A: It installs on the Cisco UCS S3260 M5 server node and connects to the drives through the chassis SAS backplane.

Q: Does it need a licence or subscription?
A: No licence or subscription is required for the controller itself. It is managed through Cisco IMC or UCS Manager, with UCSM 3.2.3 or later required for the S3260 M5 server node.

Q: How does it differ from the UCS-S3260-DRAID?
A: The DHBA is a dual pass-through HBA with IT firmware and no hardware RAID. The DRAID is a dual RAID controller based on the 3316 2G ROC with 2G flash-backed write cache per controller, supporting JBOD and RAID 0/1/5/6/10/50/60. Choose one or the other for a node.

Q: Does it need separate power?
A: No. It is powered from the S3260 chassis and server node, with no separate power connection.
