Cisco UCS-RAID9361CV-8I | UCS C-Series 8-Port 12G SAS RAID Controller, 1GB Cache
SKU:UCS-RAID9361CV-8I
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

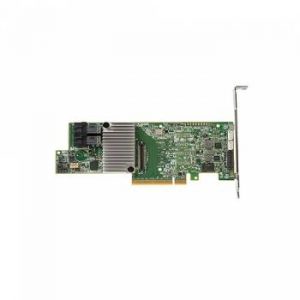

This MegaRAID-based RAID controller card is built for Cisco UCS C-Series rack servers and provides hardware RAID for internal drives. It is designed for the UCS C460 M4 Rack Server, including the SAP HANA Scale-Up variant, where enterprise data protection for internal storage is a priority.
The card connects over a PCIe 3.0 host interface and offers 8 internal SAS/SATA ports, with SAS at 12Gb/s and SATA at 6Gb/s, for up to 8 storage devices. It supports RAID 0, 1, 5, 6, 10, 50 and 60. 1 GB of onboard cache is protected by a CacheVault supercapacitor module mounted in the chassis, so cached write data is preserved if power is lost. The card is a low-profile plug-in design and draws power from the PCIe slot.
It is listed in Cisco's C460 M4 documentation as UCS-RAID9361CV-8I, which is distinct from the UCSC-MRAID12G modular controller.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hardware RAID for up to 8 internal SAS or SATA drives
- Supports RAID 0, 1, 5, 6, 10, 50 and 60
- 1 GB onboard cache with CacheVault supercapacitor backup
- Cached data preserved on power loss
- 12Gb/s SAS throughput over a PCIe 3.0 host interface
- Low-profile plug-in card design
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Device type: Storage controller (RAID), plug-in card
- Host interface: PCIe 3.0
- Drive interface: SAS 12Gb/s / SATA 6Gb/s
- Number of SAS/SATA ports: 8 internal
- RAID levels: 0, 1, 5, 6, 10, 50, 60
- Cache: 1 GB
- Cache protection: CacheVault flash-backed write cache (supercapacitor)
- Max storage devices: 8
- Form factor: Low profile
- Designed for: Cisco UCS C460 M4 Rack Server and C460 M4 for SAP HANA Scale-Up
- Power: Drawn from the PCIe slot, CacheVault module mounted in the chassis
FAQs
Q: Which servers is this RAID controller designed for?
A: It is designed for the Cisco UCS C460 M4 Rack Server, including the C460 M4 for SAP HANA Scale-Up.
Q: What RAID levels does it support?
A: It supports RAID 0, 1, 5, 6, 10, 50 and 60.
Q: How is the onboard cache protected during a power loss?
A: The 1 GB cache uses a CacheVault supercapacitor module mounted in the chassis, which preserves cached data if power is lost.
Q: Is this the same as the UCSC-MRAID12G modular controller?
A: No. Cisco lists UCS-RAID9361CV-8I as a separate plug-in controller, distinct from the UCSC-MRAID12G modular controller.
Q: How many drives can it connect?
A: It provides 8 internal SAS/SATA ports and supports up to 8 storage devices.
