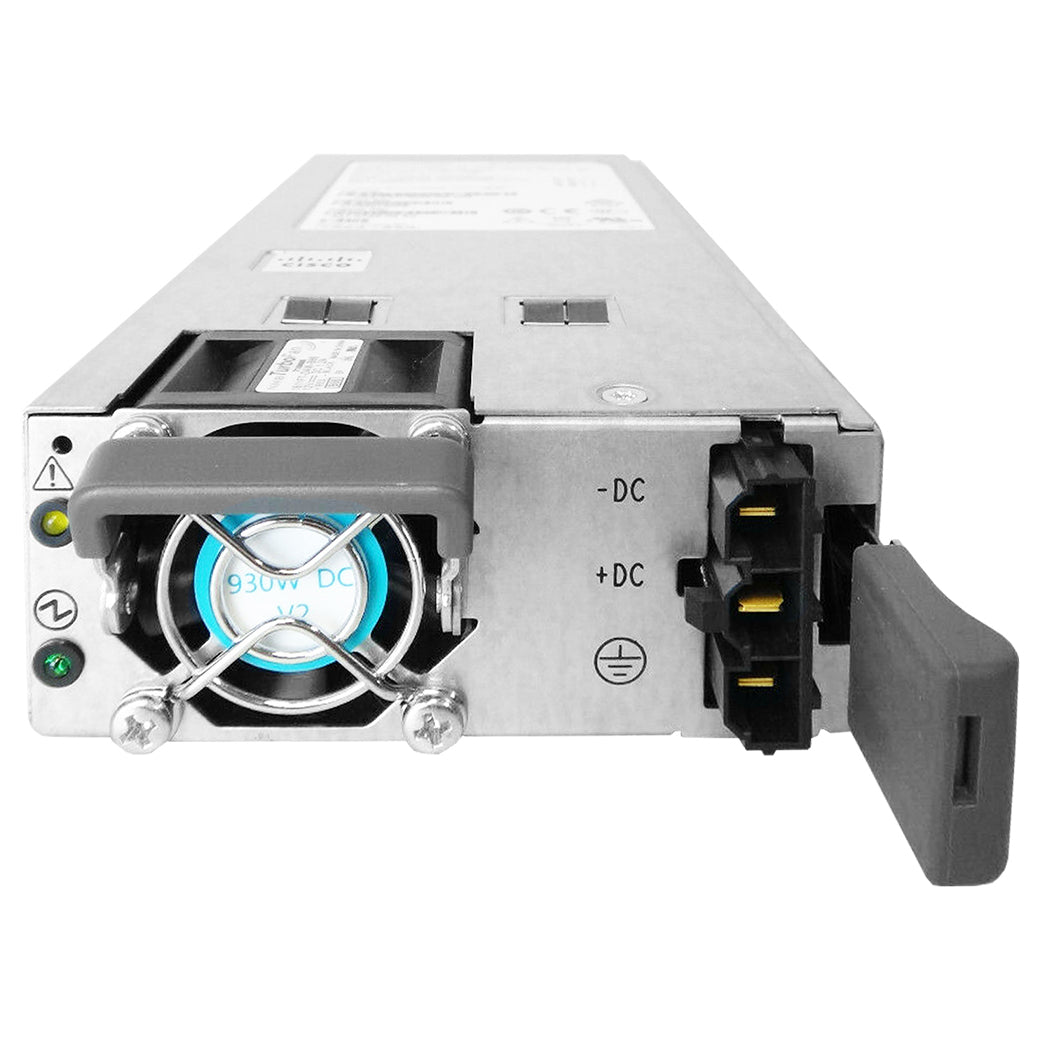

Cisco UCS-PSU-6332-DC-D | UCS 6300 Power Supply, 650W, -48VDC (-40 to -72VDC)
SKU:UCS-PSU-6332-DC-D
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This is a hot-swappable DC power supply module for the Cisco UCS 6300 Series Fabric Interconnect range, including the UCS 6332 and 6332-16UP. It suits telco, central-office and DC-powered data centre racks that need -48VDC power for their fabric interconnects, and it is typically installed as a redundant 1+1 pair.
The unit accepts a DC input of -40 to -72 VDC (nominal -48VDC) and is rated at 650W. Input current is up to 23A and maximum input power is 1104VA, with efficiency of 88 to 92 percent between 50 and 100 percent load. The module is hot-swappable and field-replaceable, so a failed supply can be replaced without taking the chassis out of service, and it is RoHS compliant.
The module is designed for the UCS 6332 and 6332-16UP Fabric Interconnects. In a chassis it supports 1+1 power redundancy alongside N+1 fan module redundancy and front-to-back cooling for hot and cold aisle designs.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hot-swappable, field-replaceable design for service without chassis downtime
- Supports 1+1 power redundancy in the chassis
- Works alongside N+1 fan module redundancy for high availability
- Front-to-back cooling suits hot and cold aisle data centre layouts
- DC input suits telco and central-office power environments
- High conversion efficiency of 88 to 92 percent across 50 to 100 percent load
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Product type: DC power supply module
- Rated output: 650W DC
- DC input voltage: -40 to -72 VDC (nominal -48VDC)
- Maximum input current: 23A
- Maximum input power: 1104VA
- Efficiency: 88 to 92% (50 to 100% load)
- Hot-swappable: Yes
- Field-replaceable: Yes
- Power redundancy: 1+1 in the chassis
- Maximum heat dissipation: 3171.3 BTU
- RoHS compliant: Yes
- Chassis operating temperature (UCS 6332): 0 to 40 C
- Chassis non-operating temperature: -40 to 70 C
- Chassis humidity: 5 to 95% non-condensing
FAQs
Q: What input voltage does this power supply need?
A: It runs from a DC supply of -40 to -72 VDC, with a nominal input of -48VDC. It is not an AC power supply.
Q: Can I replace it while the Fabric Interconnect is running?
A: Yes. The module is hot-swappable and field-replaceable, and the chassis supports 1+1 power redundancy so service can continue during a swap.
Q: Which Fabric Interconnects does it suit?
A: It is designed for the Cisco UCS 6300 Series, including the UCS 6332 and 6332-16UP Fabric Interconnects.
Q: How is this DC version different from the AC power supply?
A: This SKU is the -48VDC variant rated at 650W with a -40 to -72 VDC input, intended for DC-powered racks. AC-fed installations need a different supply.
Q: Should I install one or two?
A: The chassis supports 1+1 power redundancy, so a pair is the typical deployment. This keeps the fabric interconnect running if one supply fails or is being replaced.
