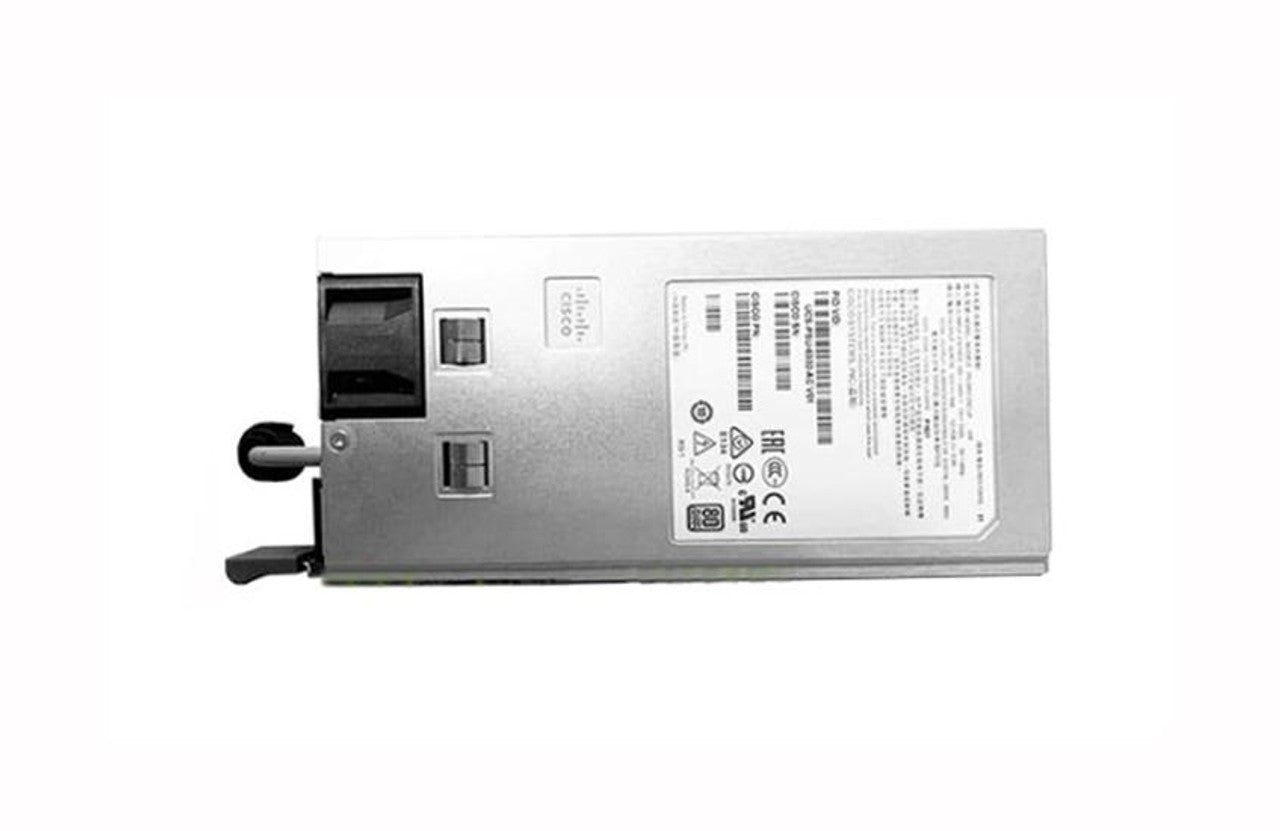

Cisco UCS-PSU-6332-AC | UCS 6300 650W AC Power Supply, 100-240VAC
SKU:UCS-PSU-6332-AC
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This is a hot-swappable AC power supply module for the Cisco UCS 6300 Series fabric interconnects. It supplies primary or redundant AC power to UCS 6332 and 6332-16UP fabric interconnects in data centre Unified Computing System deployments. It is also listed as the UCS 6332/6454 power supply for the UCS 6454.
The module delivers up to 650W of output from a wide-range 100-240VAC, 50-60 Hz input, with a typical operating draw of 212W. Efficiency is rated at 95 to 98 percent between 50 and 100 percent load. Input current is 7.6A at 100VAC and 3.65A at 208VAC, and maximum heat dissipation is 2217 BTU/hr.
Two power supplies can be fitted per fabric interconnect chassis for redundancy, and a failed unit can be replaced without powering down the system. The DC counterpart is UCS-PSU-6332-DC, and the matching fan module is UCS-FAN-6332. No licence is required for the power supply itself.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hot-swappable, so it can be replaced without powering down the fabric interconnect
- Supports redundant power with two power supplies per fabric interconnect chassis
- Wide-range 100-240VAC input suits global deployment
- High efficiency of 95 to 98 percent from 50 to 100 percent load
- Delivers up to 650W output for UCS 6300 Series fabric interconnects
- RoHS compliant
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Maximum output power: 650W
- Typical operating power: 212W
- Input voltage: 100 to 240VAC
- Input current: 7.6A at 100VAC, 3.65A at 208VAC
- Maximum input power: 760VA
- Frequency: 50 to 60 Hz
- Efficiency: 95 to 98% (50 to 100% load)
- Hot swappable: Yes
- Heat dissipation: typical 723 BTU/hr, maximum 2217 BTU/hr
- RoHS compliance: Yes
- Operating temperature (UCS 6332 chassis): 0 to 40 C
- Nonoperating temperature (chassis): -40 to 70 C
- Humidity (chassis): 5 to 95% noncondensing
- Altitude (chassis): 0 to 3,000 m
- Chassis weight with two PSUs and four fans (UCS 6332): 9.97 kg
FAQs
Q: Which fabric interconnects does this power supply fit?
A: It is for the Cisco UCS 6332 and UCS 6332-16UP fabric interconnects. It is also listed as the UCS 6332/6454 power supply for the UCS 6454.
Q: Does it need a licence?
A: No. No licence is required for the power supply itself.
Q: Can it be replaced while the fabric interconnect is running?
A: Yes. The module is hot-swappable and is designed to be replaced without powering down the fabric interconnect, particularly in a redundant two-PSU configuration.
Q: What input power does it require?
A: It accepts 100-240VAC at 50-60 Hz. Maximum input current is 7.6A at 100VAC and 3.65A at 208VAC.
Q: Is there a DC version?
A: Yes. The DC counterpart is UCS-PSU-6332-DC, which runs from -48VDC and provides 930W. This SKU is the AC version rated at 650W.
