Cisco

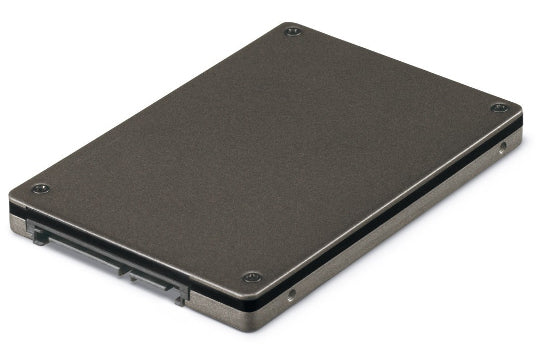

Cisco UCS-NVMEM6-W6400 | UCS 6.4TB U.2 NVMe SSD, High Endurance, WD SN840

SKU:UCS-NVMEM6-W6400

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 6.4TB 2.5-inch U.2 NVMe SSD is a Cisco-qualified drive for UCS rack servers, built on the Western Digital Ultrastar DC SN840. It is listed by Cisco as Extreme Performance, High Endurance, which suits write-heavy and mixed-use workloads such as SQL and OLTP/OLAP databases, real-time analytics, virtualisation, cloud compute and AI/ML.

The drive uses the 15mm U.2 form factor with an NVMe 1.3c controller and a dual-port PCIe 3.1 x4 interface (1x4 or 2x2). It is rated at 3 drive writes per day, with Western Digital 96-layer 3D TLC NAND. Performance reaches up to 3,470 MB/s sequential read, up to 780K random read IOPS and up to 503K mixed 70/30 IOPS. Security options include Secure Erase, Instant Secure Erase and TCG Ruby.

It is a Cisco UCS part, with related SKUs for other platforms including UCSX-NVMEM6-W6400 for X-Series and UCSB-NVMHG-W6400 for B-Series. The drive is bus-powered through the U.2 backplane connector of the host UCS server.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Full CPU-to-PCIe lane connectivity per drive in UCS rack servers
- Inventory, service-profile mapping and firmware updates through Cisco UCS Manager and Cisco IMC
- Endurance and performance-state tracking in UCS Manager or Cisco IMC
- Dual-port design with two redundant data paths for high availability
- Secure Erase, Instant Secure Erase and TCG Ruby security options
- Built in conjunction with Cisco engineering and Western Digital

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Capacity: 6.4TB (6,400GB)
- Form factor: 2.5-inch U.2, 15mm
- Interface: NVMe 1.3c, dual-port PCIe 3.1 x4 (1x4 or 2x2)
- NAND: Western Digital 96-layer 3D TLC
- Endurance: 3 DW/D
- Underlying drive: Western Digital Ultrastar DC SN840
- Sequential read (64KiB): up to 3,470 MB/s
- Sequential write (64KiB): up to 3,330 MB/s
- Random read (4KiB): up to 780K IOPS
- Random write (4KiB): up to 257K IOPS
- Mixed random 70/30 R/W (4KiB): up to 503K IOPS
- MTBF: 2.5 million hours (projected)
- Security options: Secure Erase, Instant Secure Erase, TCG Ruby
- Namespaces: 128
- Cisco firmware package: R2210803 (WDC)

FAQs

Q: What workloads is this drive suited to?
A: It is rated at 3 drive writes per day, which suits write-intensive and mixed-use enterprise workloads such as databases, real-time analytics, virtualisation, cloud compute and AI/ML.

Q: Does it need a separate power connection?
A: No. The drive is bus-powered through the U.2 backplane connector of the host UCS server.

Q: Which Cisco platforms does this SKU apply to?
A: UCS-NVMEM6-W6400 is the UCS rack server part. Related SKUs cover other platforms, including UCSX-NVMEM6-W6400 for X-Series and UCSB-NVMHG-W6400 for B-Series.

Q: Can I manage the drive through Cisco UCS tools?
A: Yes. Inventory, service-profile mapping and firmware updates are handled through Cisco UCS Manager and Cisco IMC, which also show endurance and performance-state information.

Q: What is the underlying drive?
A: It is based on the Western Digital Ultrastar DC SN840 6.4TB 3 DW/D model, using an NVMe 1.3c controller and 96-layer 3D TLC NAND.
