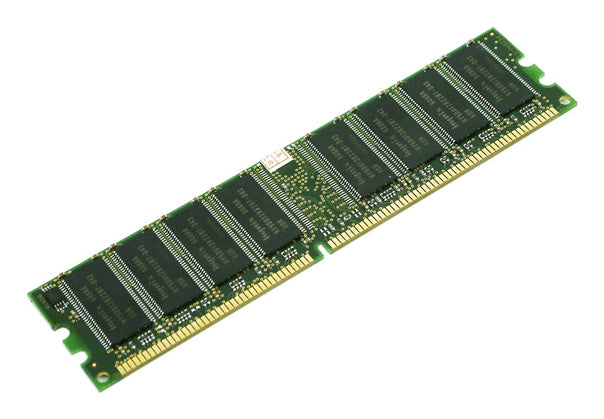

Cisco UCS-MRX16G1RE1 | UCS M7 16GB DDR5-4800 RDIMM Memory, 1Rx8, 16Gb
SKU:UCS-MRX16G1RE1
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This 16GB DDR5-4800 registered ECC DIMM is built for Cisco UCS M7 servers running 4th Gen Intel Xeon Scalable processors. It suits memory upgrades and spares for UCS C220 M7 and C240 M7 rack servers, as well as the X210c M7 and X410c M7 compute nodes.
The module is a single-rank x8 design (1Rx8) using 16Gb DRAM density, rated at 4800 MT/s and running at 1.1V. Achievable speed depends on the CPU tier and slot population. At one DIMM per channel, Platinum 8 and Gold 6 processors run it at 4800 MT/s, Gold 5 at 4400 MT/s, and Silver 4 and Bronze 3 at 4000 MT/s. At two DIMMs per channel, Platinum 8, Gold 6 and Gold 5 processors run it at 4400 MT/s, and Silver 4 and Bronze 3 at 4000 MT/s.
In a channel, this 16GB 1Rx8 DIMM can only be mixed with the same 16GB 1Rx8 module, and DDR5-4800 and DDR5-5600 DIMMs cannot be mixed in one server. When expanding an existing DDR5-4800 system, use DDR5-4800 spares. It is not supported on servers with 5th Gen Intel Xeon Scalable CPUs.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Validated and qualified by Cisco for UCS M7 servers
- Registered ECC design for server-grade data integrity
- Operates at a low 1.1V supply voltage
- Single-rank x8 16Gb module for balanced capacity per slot
- Same-density 16GB DIMMs can populate both slots of a channel
- Supports 1 to 16 DIMMs per CPU across 8 memory channels
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Capacity: 16GB
- Memory type: DDR5 RDIMM (registered, ECC)
- Rated speed: 4800 MT/s
- Rank organisation: 1Rx8 (single rank, x8)
- DRAM density: 16Gb
- Voltage: 1.1V
- Supported servers: Cisco UCS C220 M7 and C240 M7 rack servers
- Blade compute nodes: X210c M7 and X410c M7 (PID UCSX-MRX16G1RE1)
- Supported CPUs: 4th Gen Intel Xeon Scalable only
- Max speed at 1DPC (Platinum 8 / Gold 6): 4800 MT/s
- Max speed at 1DPC (Gold 5): 4400 MT/s
- Max speed at 1DPC (Silver 4 / Bronze 3): 4000 MT/s
- Max speed at 2DPC (Platinum 8 / Gold 6 / Gold 5): 4400 MT/s
- Max speed at 2DPC (Silver 4 / Bronze 3): 4000 MT/s
- DIMM slots: 2 per channel, 8 channels per CPU (16 per CPU)
- DIMM count per CPU: 1, 2, 4, 6, 8, 12 or 16
- Replacement PID: UCS-MRX16G1RE3 (16GB DDR5-5600 RDIMM 1Rx8)
FAQs
Q: Which Cisco servers support this memory?
A: It is supported on Cisco UCS C220 M7 and C240 M7 rack servers, and the matching UCSX-MRX16G1RE1 PID covers X210c M7 and X410c M7 compute nodes. It requires 4th Gen Intel Xeon Scalable processors.
Q: Can I use it with 5th Gen Intel Xeon Scalable CPUs?
A: No. 5th Gen CPUs do not support DDR5-4800 DIMMs, so this module is for 4th Gen Intel Xeon Scalable systems only.
Q: Can I mix it with DDR5-5600 memory?
A: No. Mixing DDR5-4800 and DDR5-5600 DIMMs in one server is not supported. When expanding an existing DDR5-4800 system, use DDR5-4800 spares.
Q: What speed will it run at?
A: It is rated at 4800 MT/s, but the actual speed depends on the CPU tier and population. With one DIMM per channel, Platinum 8 and Gold 6 CPUs run it at 4800 MT/s, Gold 5 at 4400 MT/s, and Silver 4 and Bronze 3 at 4000 MT/s.
Q: Can I mix it with other 16GB DIMMs in the same channel?
A: Only with the same 16GB 1Rx8 DIMM. Other module types should not be combined with it in a channel.
