Cisco

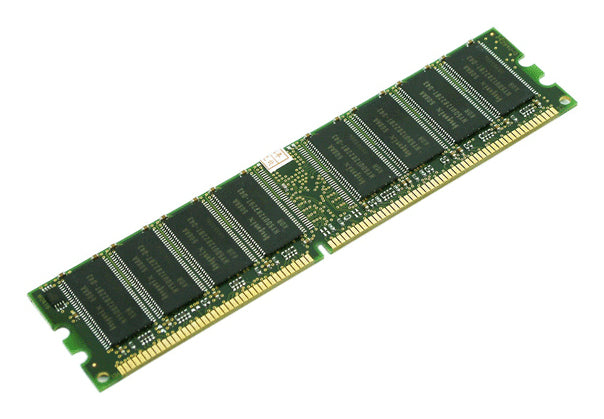

Cisco UCS-MR256G8RE3 | UCS 256GB DDR5-5600 RDIMM Memory, 8Rx4 (16Gb)

SKU:UCS-MR256G8RE3

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This is a 256GB DDR5-5600 registered DIMM for Cisco UCS servers. It is built from 16Gb DRAM in an 8-rank x4 organisation and suits UCS C-Series rack servers and UCS X-Series compute nodes. It is aimed at high-capacity workloads such as virtualisation, in-memory databases and AI or HPC, and works well for expanding or spare-stocking existing UCS fleets.

The module is a 288-pin RDIMM with on-die ECC, rated at DDR5-5600 MT/s and operating at 1.1V. On UCS M7 and M8 platforms using 5th Gen Intel Xeon Scalable processors, memory runs at up to 5600 MT/s with one DIMM per channel and up to 4400 MT/s with two DIMMs per channel. With 4th Gen processors it runs at up to 4800 MT/s at one DIMM per channel and 4400 MT/s at two.

This part is the C-Series spare and option version, identified by the UCS- prefix, and it is listed on the UCS X215c M8 datasheet. It also appears in the Cisco Intersight Managed Mode supported DIMM list from firmware 4.3(1.230097). Check the Cisco memory guide for population rules on your target server.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Registered DDR5 DIMM with on-die ECC
- 1.1V low-voltage DDR5 operation
- 16Gb TSV DRAM in an 8-rank x4 design for high-capacity 256GB modules
- Supported on Cisco UCS C-Series M7 and M8 rack servers
- Supported on UCS X-Series compute nodes such as the X215c M8
- Listed in the Cisco Intersight Managed Mode supported DIMM list at DDR5-5600 MT/s

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Capacity: 256GB
- Memory type: DDR5 RDIMM, registered with on-die ECC
- Rated speed: DDR5-5600 MT/s
- DIMM organisation: 8Rx4 (8-rank, x4)
- DRAM density: 16Gb
- Operating voltage: 1.1V
- Form factor: 288-pin DIMM
- Spare part number: UCS-MR256G8RE3=
- Related X-Series PID: UCSX-MR256G8RE3
- Related HyperFlex PIDs: HCI-MR256G8RE3, HCIX-MR256G8RE3
- Speed with 5th Gen Intel Xeon: up to 5600 MT/s at 1DPC, up to 4400 MT/s at 2DPC
- Speed with 4th Gen Intel Xeon: up to 4800 MT/s at 1DPC, up to 4400 MT/s at 2DPC

FAQs

Q: Which Cisco UCS servers support this memory module?
A: It is supported on Cisco UCS M7 and M8 C-Series rack servers and on UCS X-Series compute nodes such as the X215c M8, whose datasheet lists this PID.

Q: What memory speed will I actually get?
A: With 5th Gen Intel Xeon Scalable processors it runs at up to 5600 MT/s with one DIMM per channel and up to 4400 MT/s with two. With 4th Gen processors it runs at up to 4800 MT/s at one DIMM per channel and 4400 MT/s at two.

Q: Does it need a licence or special firmware?
A: No licence is required. For Intersight Managed Mode it is listed from firmware 4.3(1.230097).

Q: How does it differ from the UCSX- and HCI- versions of the same DIMM?
A: The module itself is the same 256GB DDR5-5600 8Rx4 RDIMM. The UCS- prefix is the C-Series spare and option PID, UCSX- is the X-Series equivalent and HCI- is the HyperFlex equivalent.

Q: Is there a newer replacement part?
A: Cisco lists the UCS-MR256G4RG5, a 256GB DDR5-6400 4Rx4 (32Gb) RDIMM, as the migration PID for this module.
