Cisco

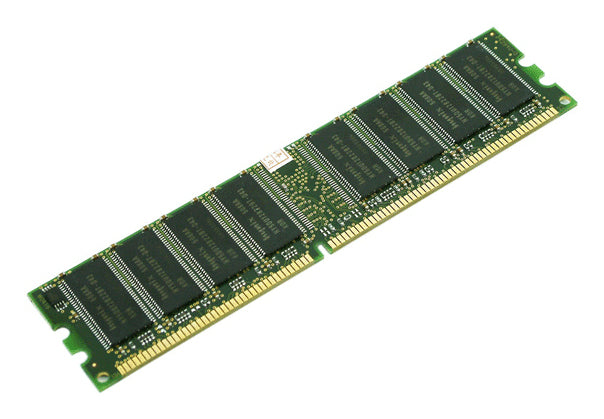

Cisco UCS-MR128G2RG3 | UCS 128GB DDR5-5600 2Rx4 RDIMM Server Memory

SKU:UCS-MR128G2RG3

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 128GB DDR5-5600 registered DIMM is server memory for Cisco UCS C-Series rack servers. It is a dual rank, x4 module built from 32Gb DRAM, and it is aimed at virtualisation hosts, in-memory databases, AI and analytics workloads that need a large memory footprint per slot.

The module is an RDIMM with on-die ECC, organised as 2Rx4 and rated at DDR5-5600 MT/s (PC5-44800) on a 288-pin interface. It operates at 1.1V. Actual running speed depends on the CPU generation and population: on 5th Gen Intel Xeon Scalable platforms it runs up to 5600 MT/s at one DIMM per channel and up to 4400 MT/s at two DIMMs per channel, while 4th Gen Intel Xeon Scalable (M7) platforms run lower than 5600 MT/s. Populating all slots of a 2-socket M7 server with 128GB DIMMs gives up to 4TB of system memory.

UCS-MR128G2RG3 is the C-Series part number. The equivalent for UCS X-Series compute nodes is UCSX-MR128G2RG3. It is listed in the Cisco M7 and M8 memory guides, so check those guides for population rules on your server model.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Registered DDR5 DIMM with on-die ECC
- High-capacity 128GB module built from 32Gb DRAM
- Dual rank x4 organisation for dense memory configurations
- Operates at 1.1V
- Listed in the Cisco UCS M7 and M8 memory guides
- Suited to virtualisation, in-memory databases, AI and analytics workloads

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Cisco PID: UCS-MR128G2RG3
- Capacity: 128GB
- DIMM type: RDIMM (registered DDR5 with on-die ECC)
- Organisation: 2Rx4 (dual rank, x4)
- DRAM density: 32Gb
- Speed: DDR5-5600 MT/s (PC5-44800)
- Operating voltage: 1.1V
- Pin count: 288-pin
- Speed on 5th Gen Intel Xeon Scalable: up to 5600 MT/s at 1DPC, up to 4400 MT/s at 2DPC
- Maximum system capacity with 128GB DIMMs: 4TB (32 x 128GB) on 2-socket M7 platforms
- X-Series equivalent PID: UCSX-MR128G2RG3

FAQs

Q: Which servers does UCS-MR128G2RG3 work with?
A: It is the C-Series PID for Cisco UCS rack servers and is listed in the Cisco M7 and M8 memory guides. Check the guide for your model for population rules.

Q: Is there a version for UCS X-Series?
A: Yes. The equivalent part number for UCS X-Series compute nodes is UCSX-MR128G2RG3, with the same 128GB DDR5-5600 specification.

Q: Will it always run at 5600 MT/s?
A: No. Speed depends on the CPU generation and DIMMs per channel. On 5th Gen Intel Xeon Scalable it runs up to 5600 MT/s at one DIMM per channel and up to 4400 MT/s at two DIMMs per channel. On 4th Gen (M7) platforms it runs lower than 5600 MT/s.

Q: How much memory can I reach with these modules?
A: Fully populating a 2-socket M7 platform with 32 x 128GB DIMMs gives up to 4TB of system memory.

Q: What voltage does it use?
A: It operates at 1.1V, powered from the host server's DIMM slots.
