Cisco

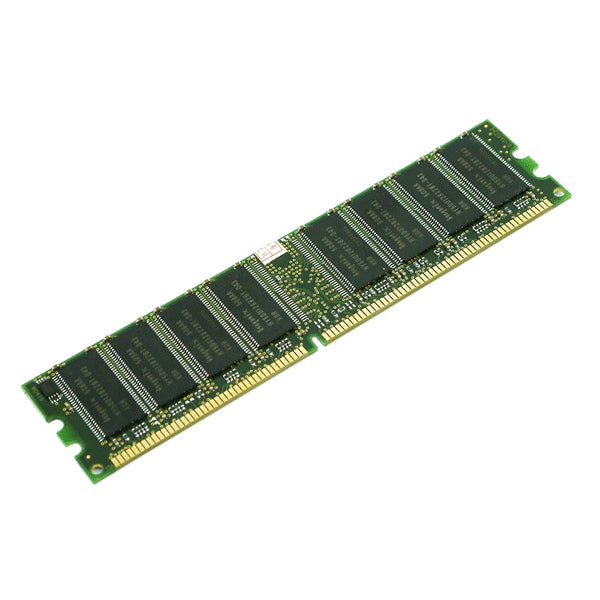

Cisco UCS-MR-X64G2RT-H | UCS M5 64GB DDR4-2933 RDIMM, 2Rx4 (16Gb) Server Memory

SKU:UCS-MR-X64G2RT-H

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 64GB DDR4-2933 registered ECC RDIMM is built for Cisco UCS M5-generation servers, including rack and blade models such as the UCS C220 M5, C240 M5, B200 M5 and B480 M5. It suits memory upgrades and expansion for virtualisation, hyperconverged infrastructure such as Microsoft Azure Stack HCI on the C240 M5, and general data-centre workloads.

The module is a dual-rank x4 (2Rx4) design built with 16Gb DRAM, running at 1.2 V in a 288-pin DIMM format. It is rated DDR4-2933 (PC4-23400). In M5 servers the memory clock depends on the installed CPU: 2nd Gen Intel Xeon Scalable processors can run it at 2933 MHz at one DIMM per channel, while 1st Gen CPUs run it at 2666 MHz. Each CPU provides six memory channels with up to two DIMMs per channel.

The RDIMM format cannot be mixed with LRDIMMs (UCS-ML-) in the same server. Memory mirroring configurations are supported, and these require DIMMs to be installed in identical pairs.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Registered ECC DDR4 RDIMM for enterprise server reliability
- DDR4-2933 speed with 2nd Gen Intel Xeon Scalable CPUs
- Runs at 2666 MHz on 1st Gen Intel Xeon Scalable CPUs
- 16Gb DRAM-based 64GB dual-rank module
- Supported in memory mirroring configurations using identical DIMM pairs

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Capacity: 64 GB
- Memory type: DDR4 registered ECC DIMM (RDIMM)
- Speed: DDR4-2933 MHz (PC4-23400)
- Rank and organisation: 2Rx4 (dual rank, x4)
- DRAM density: 16Gb
- Operating voltage: 1.2 V
- Pin count: 288-pin
- Memory channels: six per CPU, up to two DIMMs per channel
- Clock speed in M5 servers: 2666 MHz or 2933 MHz depending on CPU type
- Speed at 1DPC with a 2933 MHz-capable CPU: 2933 MHz

FAQs

Q: Which Cisco servers does this memory work with?
A: It is designed for Cisco UCS M5-generation servers, including the UCS C220 M5, C240 M5, B200 M5 and B480 M5.

Q: What speed will it run at?
A: It is rated DDR4-2933. A 2nd Gen Intel Xeon Scalable CPU is needed to reach 2933 MHz at one DIMM per channel. On 1st Gen CPUs it runs at 2666 MHz.

Q: Can I mix it with LRDIMMs?
A: No. This is an RDIMM and must not be mixed with LRDIMMs (UCS-ML-) in the same server.

Q: Does it support memory mirroring?
A: Yes. Memory mirroring is supported, and it requires DIMMs to be installed in identical pairs.

Q: How is this module different from other UCS DDR4 memory?
A: This SKU is a 64GB RDIMM, dual-rank 2Rx4 with 16Gb DRAM, rated DDR4-2933 at 1.2 V.
